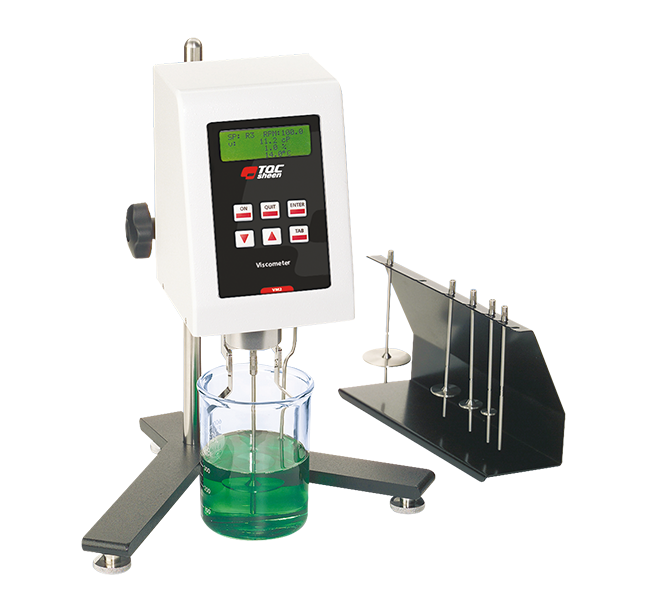

TQC Sheen SH1660 VM2 Rotational Viscometer 10-2000000cP

SH1660

Rotational viscometer

TQC Sheen's VM series Rotational Viscometers are the perfect solution for accurate viscosity measurements quickly and efficiently. Ease of use and versatility allow them to be used in many industrial applications where determination of fluid properties and behavior is required.

The measuring principle is simple, but reliable. It is based on a well-established method for measuring the resistance of the rotating spindle in the sample being measured. The resulting viscosity value is then automatically calculated by combining the resulting torque measurement, rotation speed and spindle characteristics.

The VM1 and VM2 Rotational Viscometers provide accurate measurement of the viscosity range. Use new technology to make VM1 and VM2 comfortable and easy to use.

The VM1 is the standard model for fast and efficient accurate viscosity measurements. The combination of 18 pre-selected speeds (0.3-100 rpm) and shaft combinations provides operational flexibility to meet numerous requirements for product analysis and industrial quality control.

VM2 is an enhanced version that allows advanced viscosity measurements using data logging capabilities. The combination of 19 pre-selected speeds (0.3-200 rpm) and rotating shaft combinations provides a versatile instrument that covers a wide range of industrial R&D or quality control applications. The instrument also has a built-in temperature sensor (0° to 100°C / 32°-212°F) to closely monitor the health of the product during testing.

VM1：Speed selected, spindle selected, viscosity reading (cP)

VM2：Above viscosity readings (cP or mPa·s or cSt), % of full-scale range (%), sample temperature (℃ or ºF), shear rate (with coaxial spindle) (s-1), shear stress (with coaxial spindle) (N/m2), density (introduced by user) (g/cm3)

Features

Data shows

10 menu languages

Viscosity readings

Automatic test alarms

Touch the keyboard

Built-in memory (VM2 only)

Multiple program functions(VM2 only)

Temperature readings(VM2 only)

USB interface(VM2 only)

Data logger software included(VM2 only)

VM2 characteristics

 Measurement range -100 to 13,000,000 cP.

Fixed speed from 0.3 to 200 rpm.

 Direct readings on a brightly illuminated 4-wire LCD showing the selected operating parameters.

 Continuous sensing and display: - Viscosity (cP or mPaꞏs); temperature (degrees C or F); % Scale; speed (rpm); Spindle use.

 Progressive deceleration avoids excessive torque on the spindle when selecting Stop.

 Use a platinum probe to read the temperature.

 Density input to allow kinematic viscosity determination.

 Auto-ranging function.

 Store 10 user-defined test setups.

 A variety of accessories are available.

Information about this viscosity determination product

The VM series spindle viscometers are the perfect solution for fast and efficient accurate viscosity measurements. Ease of use and versatility allow them to be used in many industrial applicationsThe importance of determining fluid properties and behavior goes without saying. The measuring principle is simple but reliable,Based on a well-established method for measuring the resistance of the rotating spindle in the sample being measured. The resulting viscosity value is then automatically calculated by combining the resulting torque measurement, rotation speed and spindle characteristics.

Structural diagram

1. a soft key;2. a spindle protector;3. Tooth bar, 4. Bracket base, 5. Flat feet, 6. Display screen (LCD), 7. Power switch (rear), 8. Temperature probe, 9. Spindle

Applicable Standards

ASTM D115，ASTM D1417，ASTM D1824，ASTM D2196，ASTM D2556，ASTM D2669，ASTM D2983，ASTM D2994，ASTM D3236，ASTM D3716，ASTM D789，BS 5350，BS 6075，ISO 1652，ISO 2555，ISO 6504-1，ASTM D1084

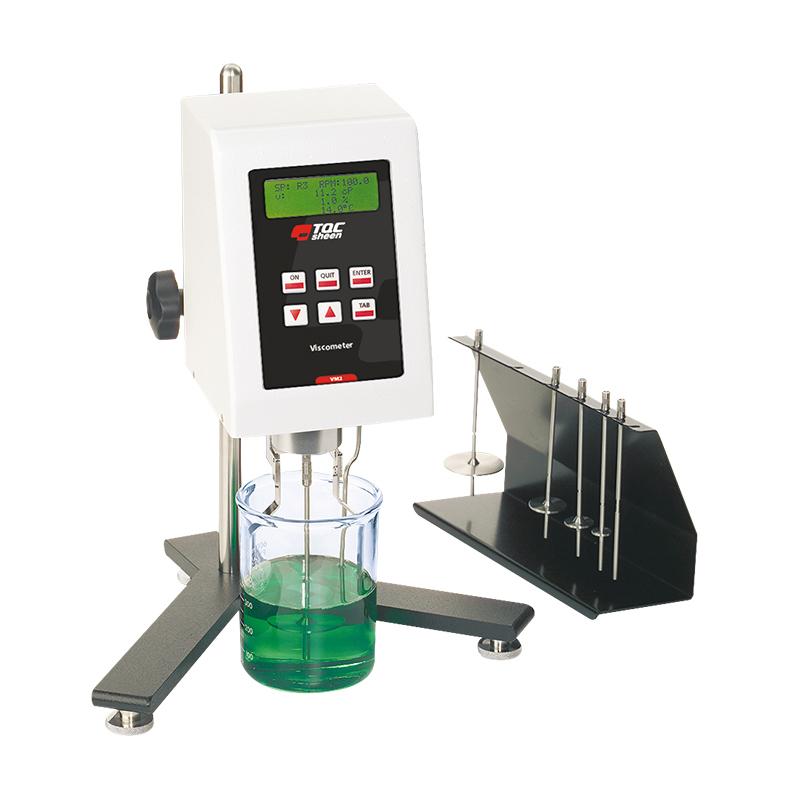

Product display

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
