KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth

SE
Metal special wide range Glossiness Meter, 60 degrees single angle, Reading Range 0.0~999, widely used in mirror polishing, coating field.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KSJ MG6-SM Gloss meterSPEC

KSJ MG6-SM Gloss meterDetails

KSJ MG6-SM Gloss meterPacking list

SKU
NB002171
Geometry
60°
Measurement range
0~120GU；121~999GU
Measuring Areas
10*20mm
Error of indication
±2;±1.5％GU
Division Value
1GU
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Dimensions
123*38*65mm
Weight
300g
Power
1.2~ 1.5 AA (No. 5) rechargeable or alkalinity battery
Measurement port size
14*30mm
Reading range
0~999GU
Zero Error
1GU
Stability
1GU
Operating Time
Depending on the type of battery, the continuous use time of the alkalinity battery is > 58h
MG6-SM
Gloss meter
Metal special wide range Glossiness Meter, 60 degrees single angle, Reading Range 0.0~999, widely used in mirror polishing, coating field.
KSJ MG6-SM Portable Gloss meter for metal, wide range, self-calibrated with Bluetooth Picture

product description

★Single AA size (AA) alkaline batteries or rechargeable batteries are equally easy to use.

★Low energy consumption: A single AA alkaline battery can last for more than 58 hours.

★The whole set of equipment is designed in one piece, it can be used immediately when it is turned on, and it is easy to carry.

★Specially equipped with a protective cover for the adjustment button, the operation is more assured.

★Anti-scratch coating on the test port to prevent scratching the measured object.

★Small size, beautiful appearance, stable performance, easy to use!

Application

1. It is suitable for gloss measurement of various metal and non-metal materials and their coated surfaces.

2. Widely used in mirror polishing and coating fields.

structure diagram

KSJ MG6-SM portable gloss meter front structure diagram

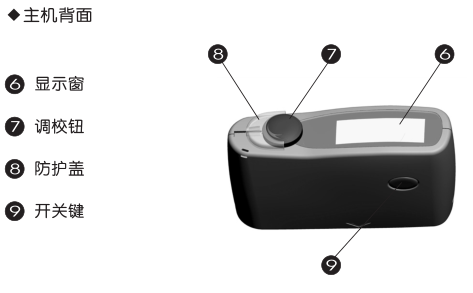

Back structure diagram of KSJ MG6-SM portable gloss meter

Structural diagram of KSJ MG6-SM portable gloss meter base

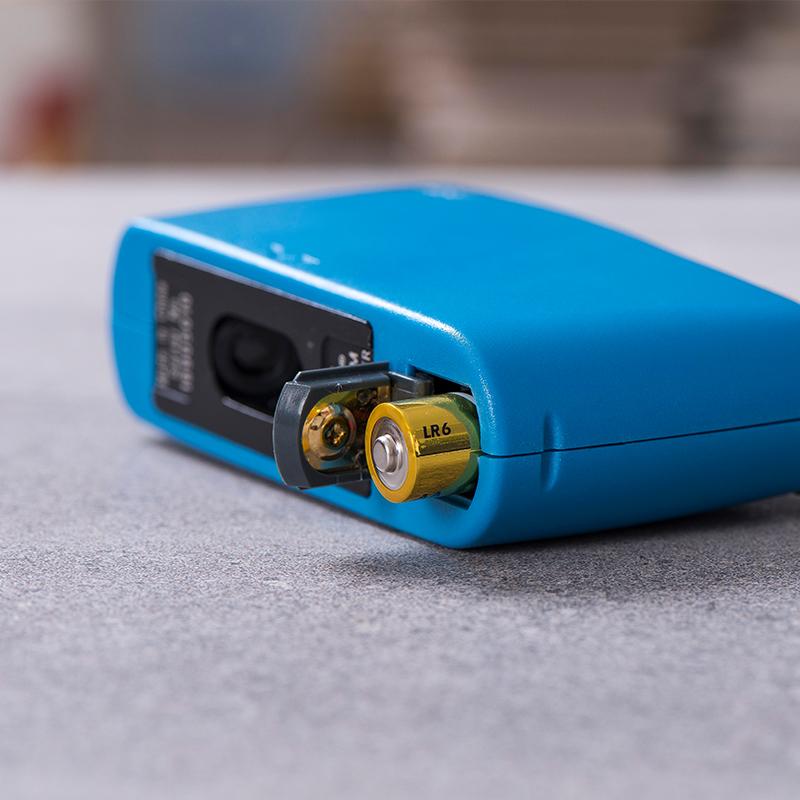

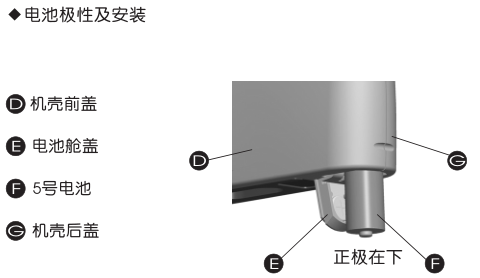

Details of the battery compartment of KSJ MG6-SM Portable Gloss Meter

Standards

MG6-SM Portable Gloss Meter complies with the requirements of the secondary working machine in the metrological verification regulations of ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Board".

plan

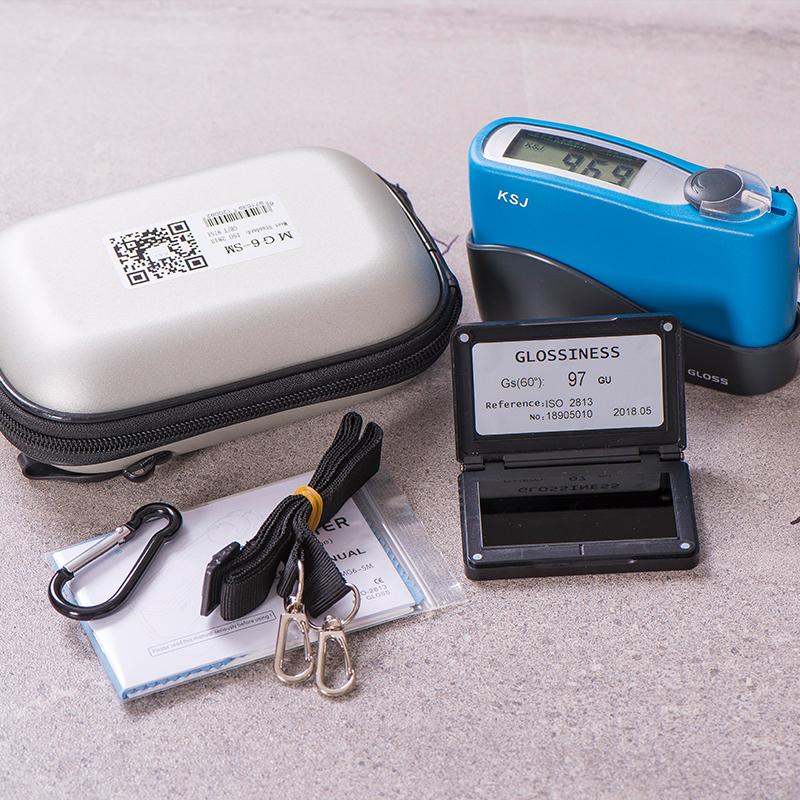

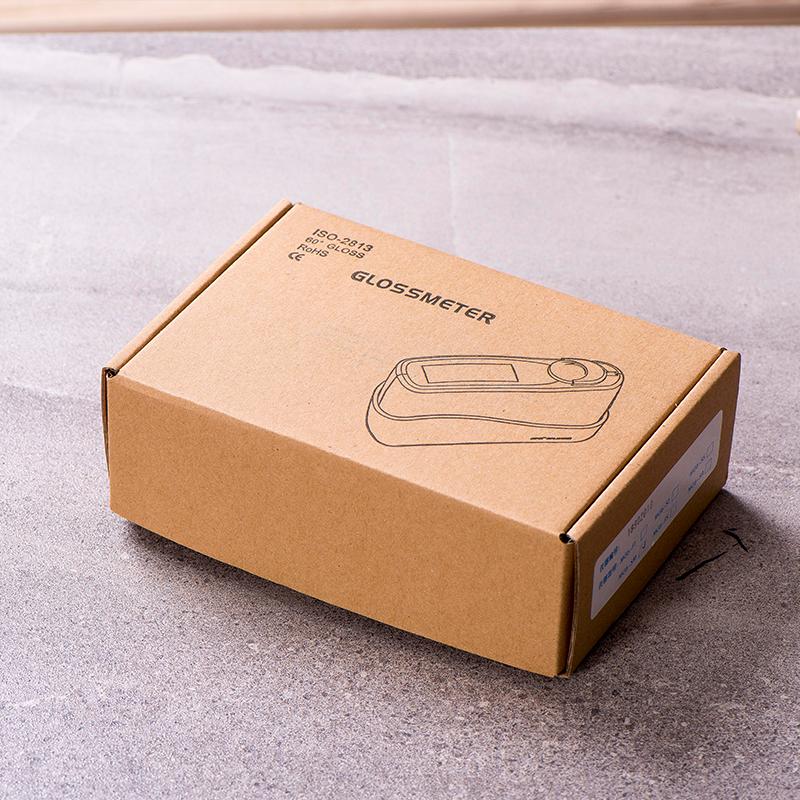

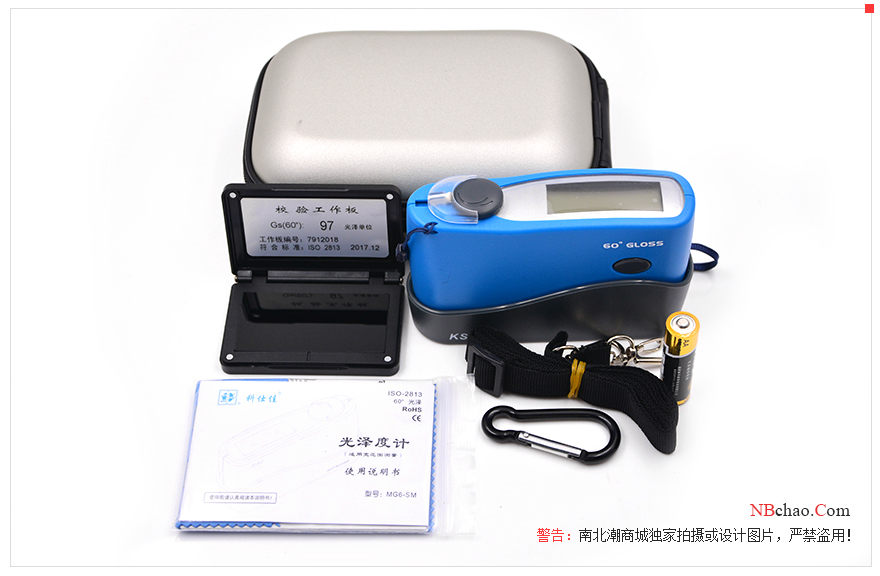

KSJ MG6-SM Portable Gloss Meter Package Accessories

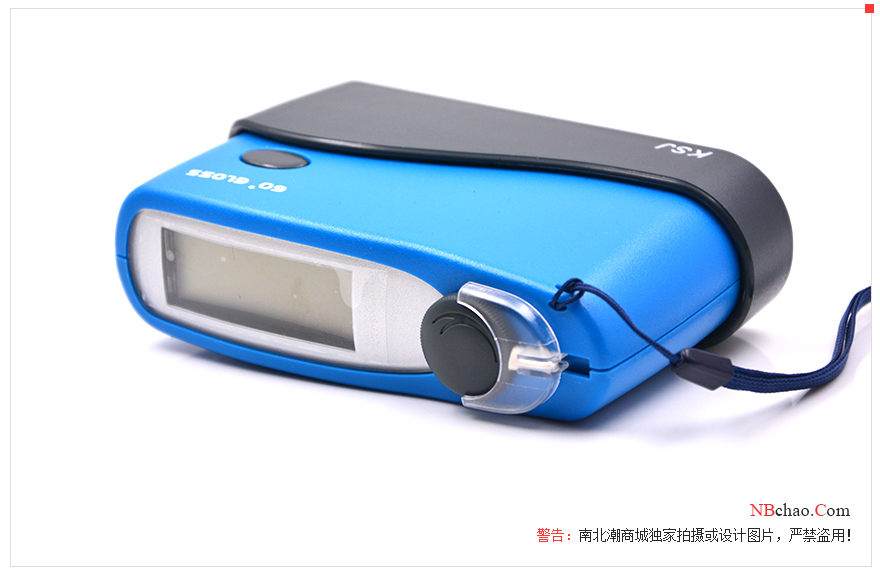

KSJ MG6-SM Portable Gloss Meter Details

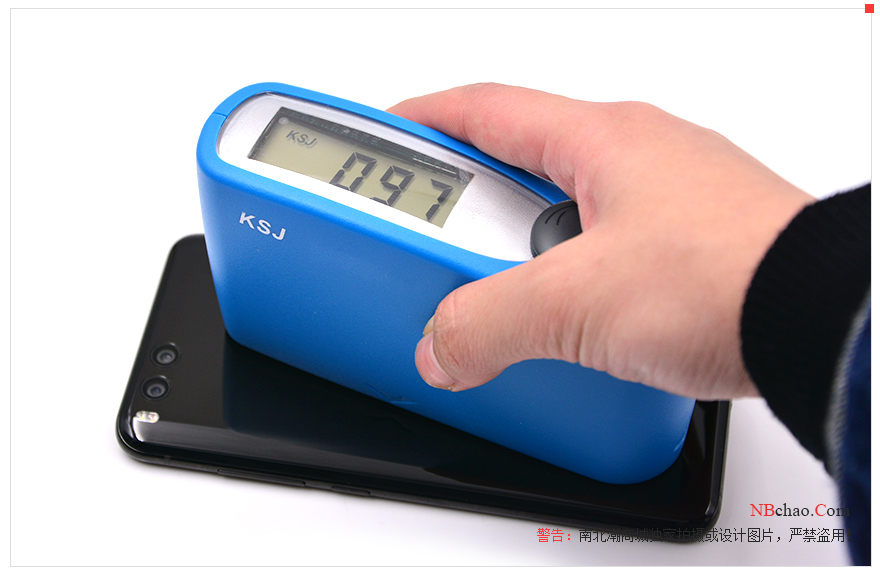

KSJ MG6-SM Portable Gloss Meter Test Chart

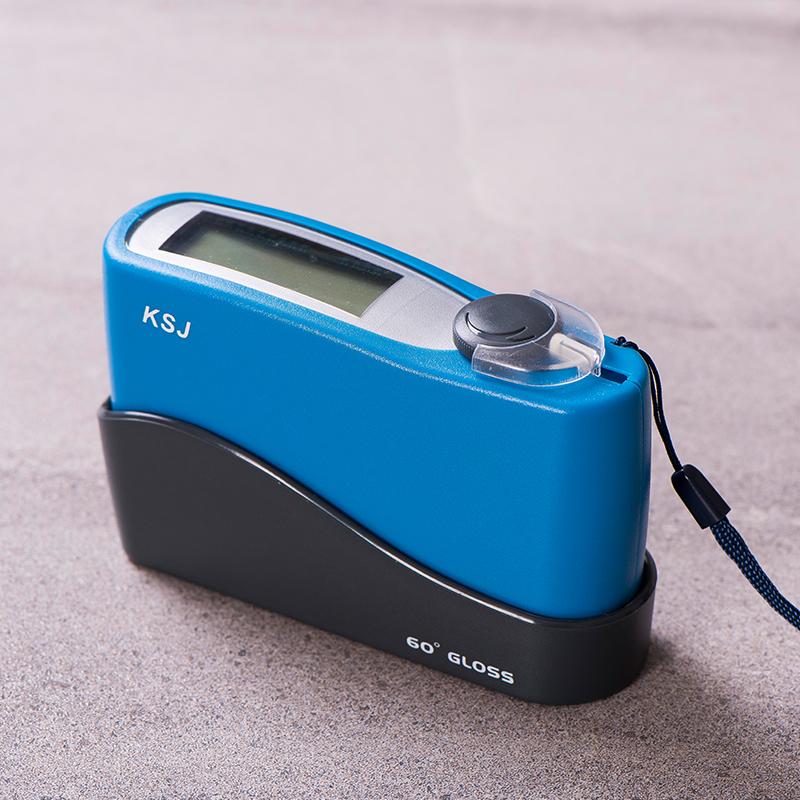

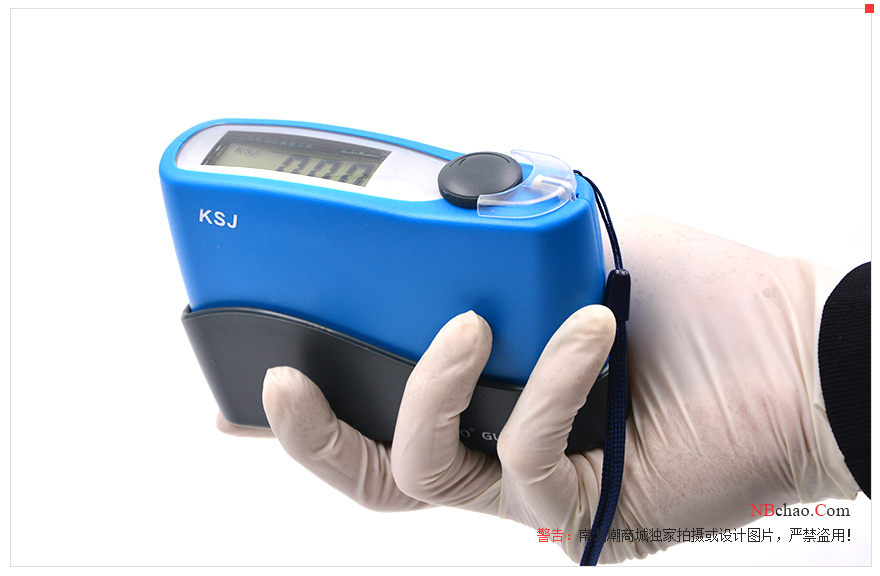

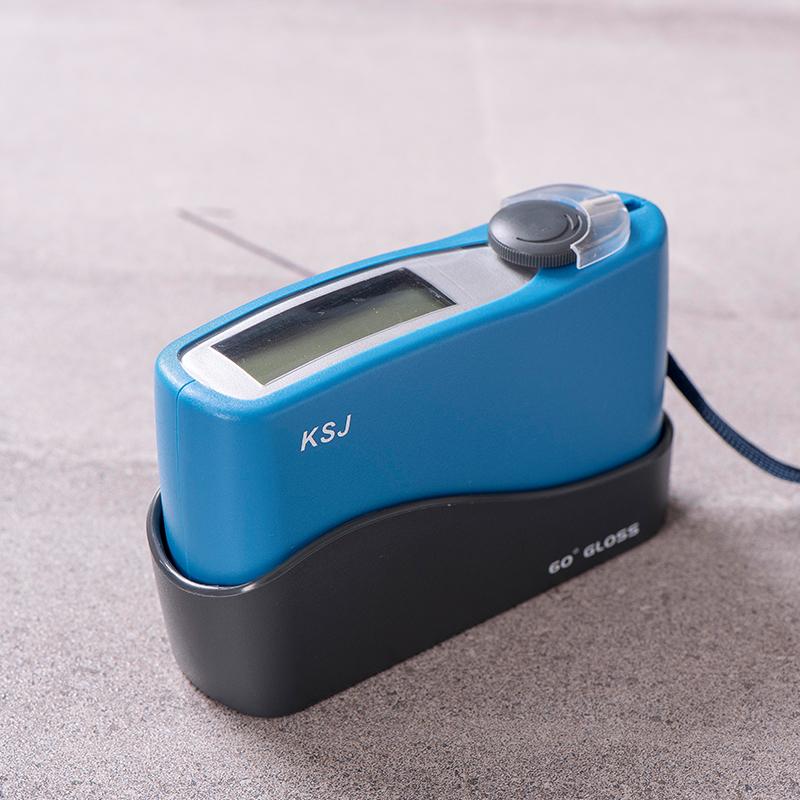

Image of KSJ MG6-SM Portable Gloss Meter

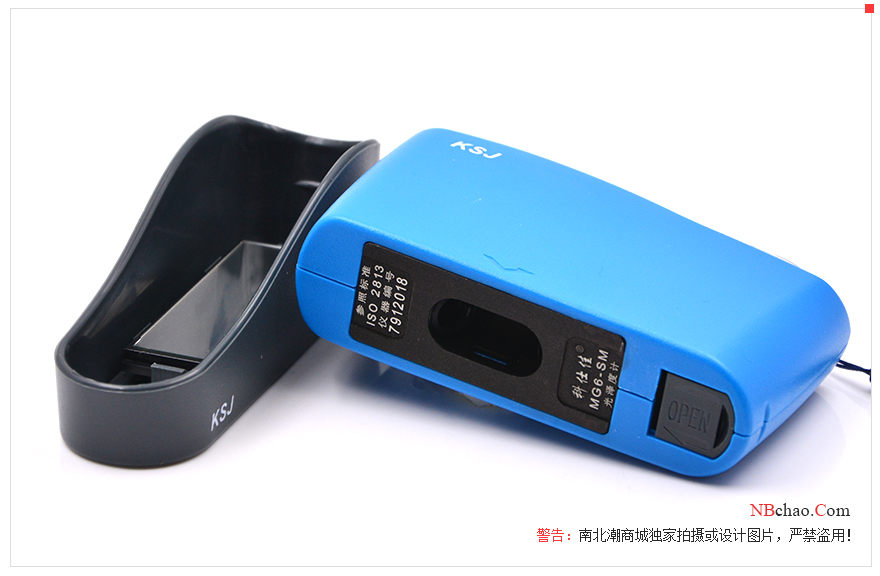

KSJ MG6-SM Portable Gloss Meter Test Diagram

FAQ
QWhat are the measurement parameters?
A The main parameters include Glossiness units (such as GU or GS), surface reflectance percentage, and angle of reflection beam of light.
QHow does the glossmeter work?
A Glossiness is determined by illuminating the sample surface with a standardized beam of light and measuring the intensity and angle of the reflection beam of light.
QIs it possible to measure the glossmeter used for aluminum paint on metal surfaces?
A If it is metal spray paint, it is not as bright as metal. You can use something within 200GU. If you want to measure metal, you can.
QMeasure metal luminance, single angle, can I choose this glossmeter?
A Yes, this one is a 60-degree glossmeter, which is dedicated to metal.
QDoes the glossmeter need to be calibrated frequently?
A Generally, it is recommended to re-calibrate after a period of use or a long boot time to ensure the accuracy of the next measurement.
QHow to clean this MG6-SM Keshijia Gloss meter standard board?
A Hello, you can wipe it with lens paper or soft cloth dipped in absoluteethanol.
QWhat is the measurement port size of this portable MG6-SM Gloss meter?
A Hello, the size is 14 * 30mm.
QThis Gloss meter can test metal gloss, right?
A Hello, yes, this one can be applied to Gloss measurement of various metal and non-metal materials and their coated surfaces.
QWill the strong light environment affect the measurement of glossmeters? How to solve?
A Strong light environment will affect the measurement of glossmeter, it is recommended to avoid strong light environment measurement, if you want to avoid external light leakage, you can use black flannel around the measuring port to block the rays of light.
QWhat is the difference between WGG60 series and MG series Glossiness?
A WGG60 series host power supply is built-in rechargeable lithium battery. MG series host power supply is an AA (No. 5) rechargeable or alkaline battery. If the use Frequency is high, use WGG60 series. On the contrary, if the use Frequency is low, use MG series, but please take out the battery after use to protect the instrument host.
