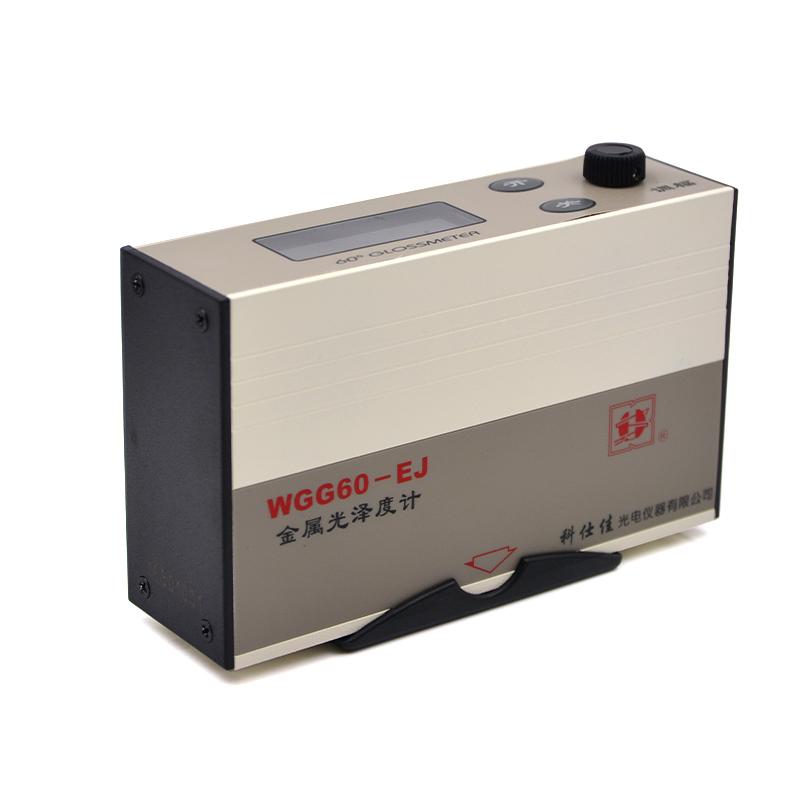

KSJ WGG60-EJ single angle Glossiness Meter, metal Eletroplating copper foil surface, built-in lithium battery

SE
WGG60-EJ is a rechargeable wide-range metal Glossiness Meter with a Reading Range of 0~999. It is suitable for Gloss measurement of various metal and non-metallic materials and surfaces of articles; it is widely used in the field of mirror polishing and coating.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KSJ WGG60-EJ Single angle Glossiness MeterSPEC

KSJ WGG60-EJ Single angle Glossiness MeterDetails

KSJ WGG60-EJ Single angle Glossiness MeterPacking list

SKU
NB002172
Geometry
60°
Measurement range
0~100GU；101~999GU
Measuring Areas
18*36mm
Error of indication
±2GU
Division Value
1GU
Standards
ISO2813、GB/T9754
Display
3 digit display
Weight
130×40×80mm
Power
Built-in Ni-MH battery pack 4x1.2V, 600mAh
Measurement port size
20*50mm
Reading range
0~999GU
Zero Error
1GU
Stability
1.2GU
Accuracy
± 1.5% Gloss Unit
Operating Time
Power-on continuous use time > 40h
Charging time
14~16h
Charger
AC 187~ 242 (50Hz)
WGG60-EJ
Single angle Glossiness Meter
WGG60-EJ is a rechargeable wide-range metal Glossiness Meter with a Reading Range of 0~999. It is suitable for Gloss measurement of various metal and non-metallic materials and surfaces of articles; it is widely used in the field of mirror polishing and coating.
KSJ WGG60-EJ single angle Glossiness Meter, metal Eletroplating copper foil surface, built-in lithium battery Picture

product description

Palm size, easy to carry.

Built-in rechargeable battery pack. It can be used continuously for more than 24 hours on a full charge.

Application of WGG60-EJ single angle gloss meter

WGG60-EJ Single Angle Gloss Meter is well suited for gloss measurement of various metal and non-metal surfaces.

Standards

WGG60-EJ single-angle gloss meter complies with ISO2813 and GB/T9754 standards, and its performance indicators all meet the requirements of the working machine in the national JJG696-2002 "Verification Regulations for Specular Gloss Meters".

structure diagram

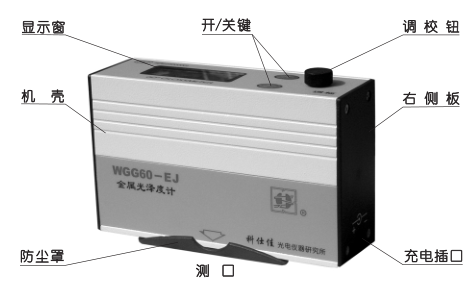

KSJ WGG60-EJ Single Angle Gloss Meter Structure Diagram

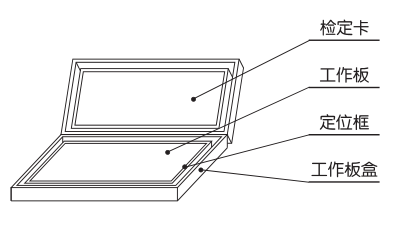

Structural diagram of the working board of KSJ WGG60-EJ single angle gloss meter

plan

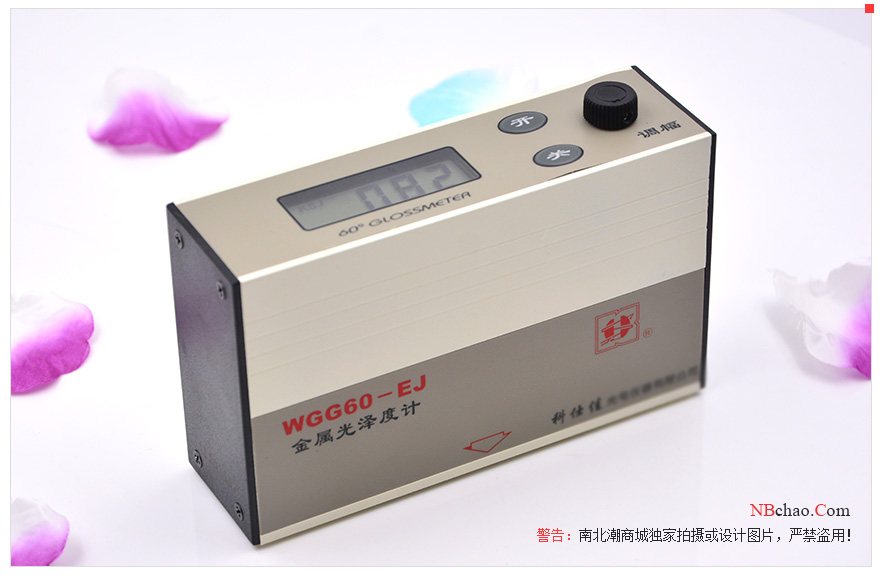

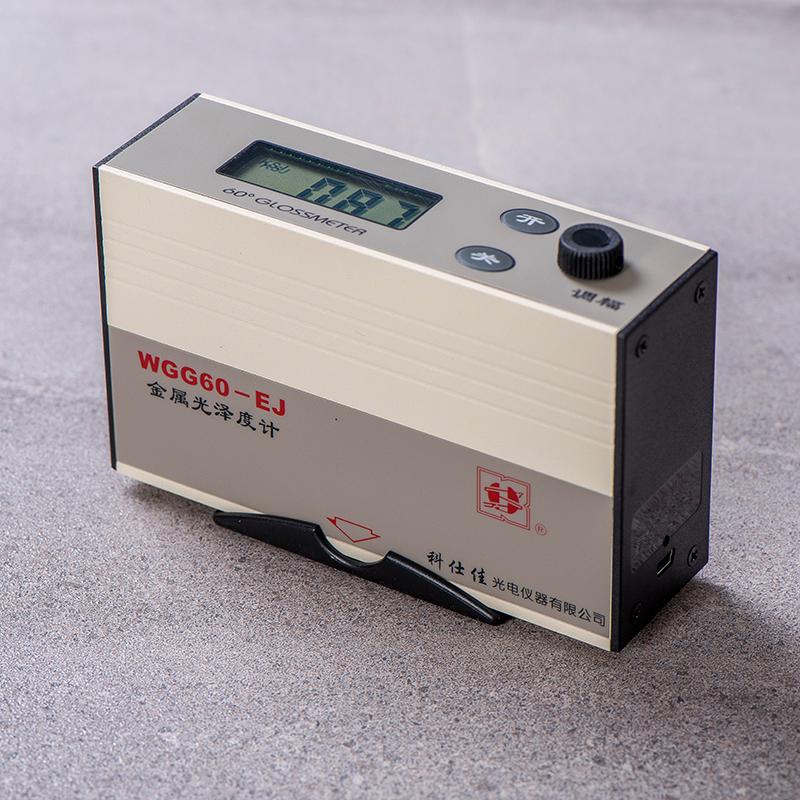

KSJ WGG60-EJ Single Angle Gloss Meter Appearance

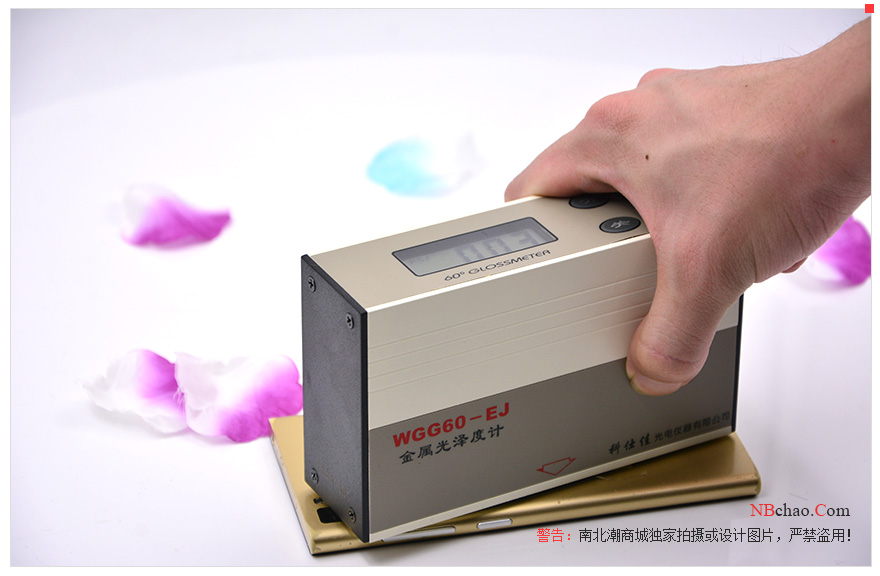

KSJ WGG60-EJ Single Angle Gloss Meter Measurement Chart

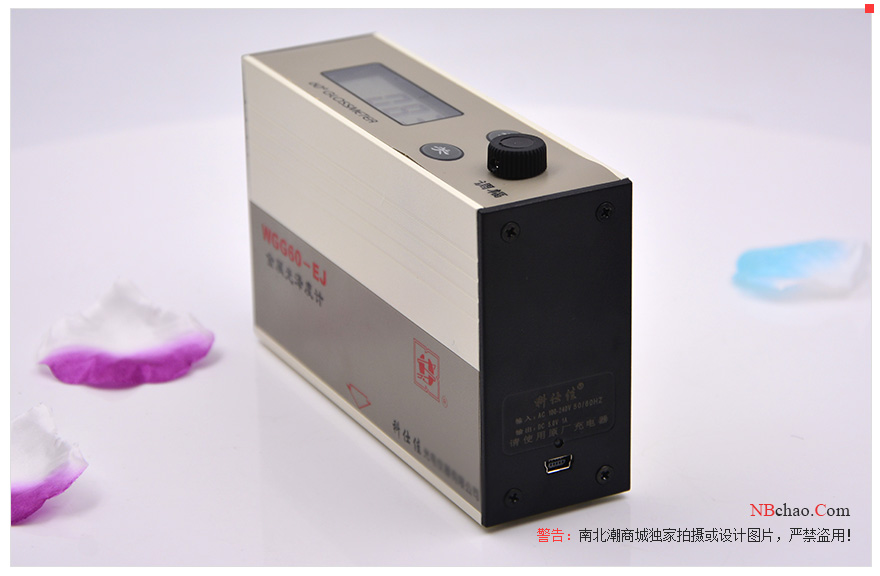

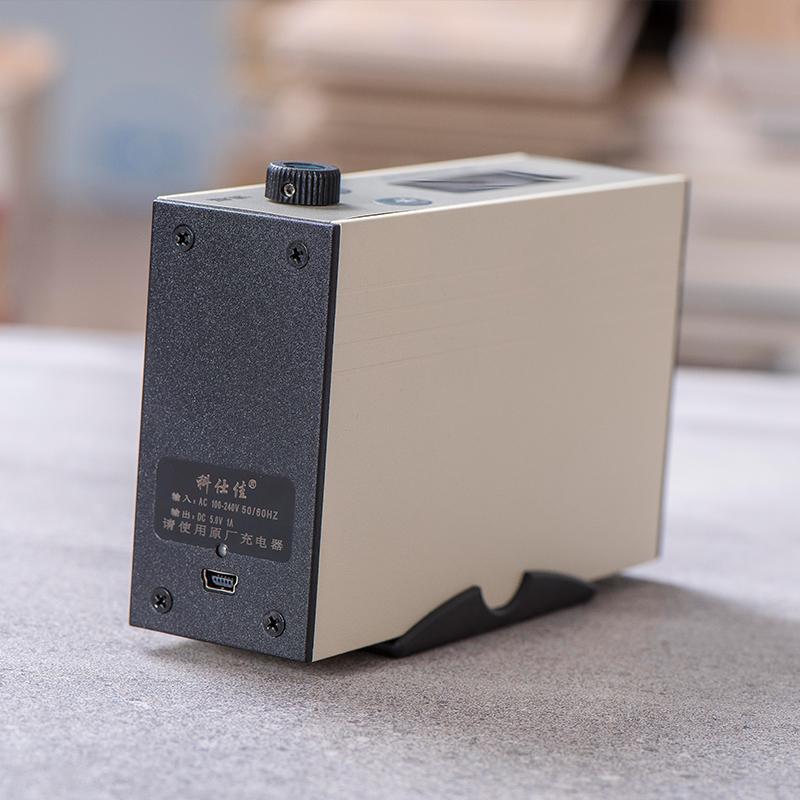

KSJ WGG60-EJ single angle gloss meter interface details

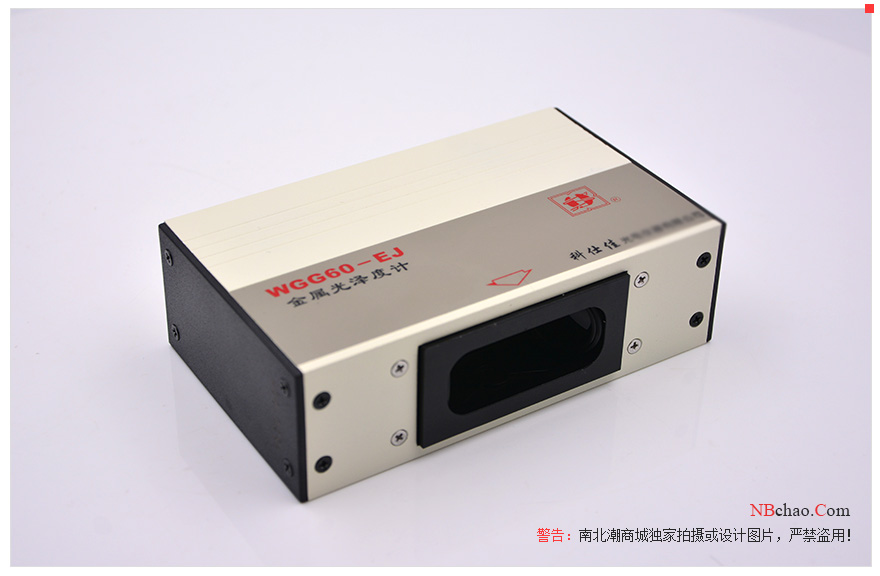

KSJ WGG60-EJ Single Angle Gloss Meter Measuring Hole

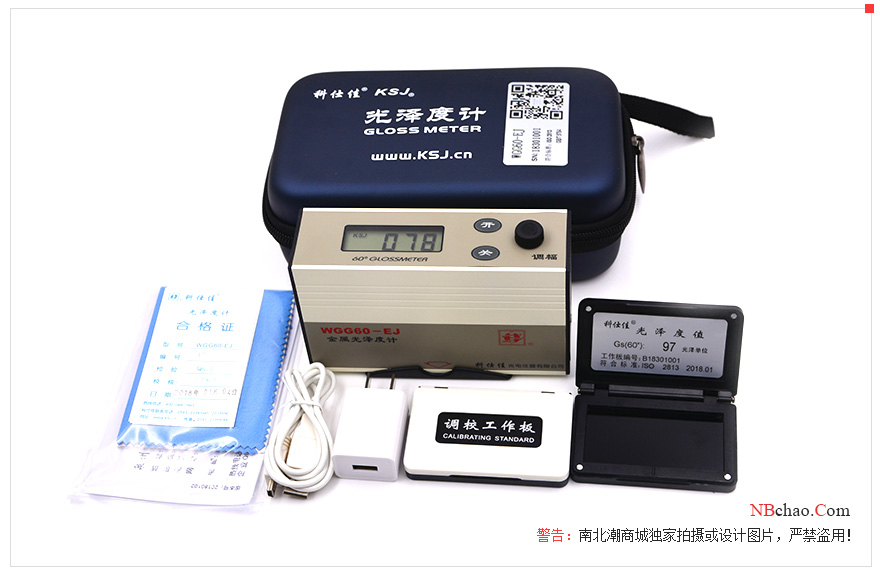

KSJ WGG60-EJ single angle gloss meter accessories diagram

FAQ
QHow to resolve errors in glossmeter measurements?
A Methods to reduce errors include properly calibrating the instrument, keeping the sample surface clean, and eliminating the effects of ambient light.
QWhat are the differences in the application of different materials?
A Glossmeters can be used to measure Glossiness of Coatings, Plastics, Paper, Metals and Miscellaneous Surface Materials. Measurement parameters need to be adjusted according to material characteristics.
Q3 Angle glossmeter for Phone Glass
A Is it transparent Glass? WGG60-EJ can be used. If it is transparent or translucent Glass, you need to pad black flannel at the bottom of the Glass. Avoid secondary reflection affecting the measurement value.
QDoes the glossmeter need to be calibrated frequently?
A Generally, it is recommended to re-calibrate after a period of use or a long boot time to ensure the accuracy of the next measurement.
QHow long does it take for the WGG60-EJ Gloss meter to be fully charged?
A Hello, it takes 14~ 16h.
QWhat does -1 mean on this single-angle gloss instrument?
A Hello, this is a sign that the battery is exhausted. Charge the battery in time.
QIs this Gloss meter rechargeable or battery?
A Hello, this gloss meter has a built-in rechargeable battery, which can be used continuously for more than 40 hours after being fully charged.
QWill the strong light environment affect the measurement of glossmeters? How to solve?
A Strong light environment will affect the measurement of glossmeter, it is recommended to avoid strong light environment measurement, if you want to avoid external light leakage, you can use black flannel around the measuring port to block the rays of light.
QWGG60 series gloss meter how to adjust, how long can a charge?
A Adjustment method: Turn on the power supply, remove the dust cover, and place the measuring port on the adjusting black working board. After half a minute, adjust the "adjustment" button to make the displayed value equal to the verification value of the black working board. Note that the glossmeter measuring port needs to be buckled into the positioning, frame, and adjustment indication of the working board to be valid. And the instrument needs to be adjusted every time it is turned on. The instrument can be turned on and used for more than 48 hours after being fully charged.
QWhat is the difference between WGG60 series and MG series Glossiness?
A WGG60 series host power supply is built-in rechargeable lithium battery. MG series host power supply is an AA (No. 5) rechargeable or alkaline battery. If the use Frequency is high, use WGG60 series. On the contrary, if the use Frequency is low, use MG series, but please take out the battery after use to protect the instrument host.
