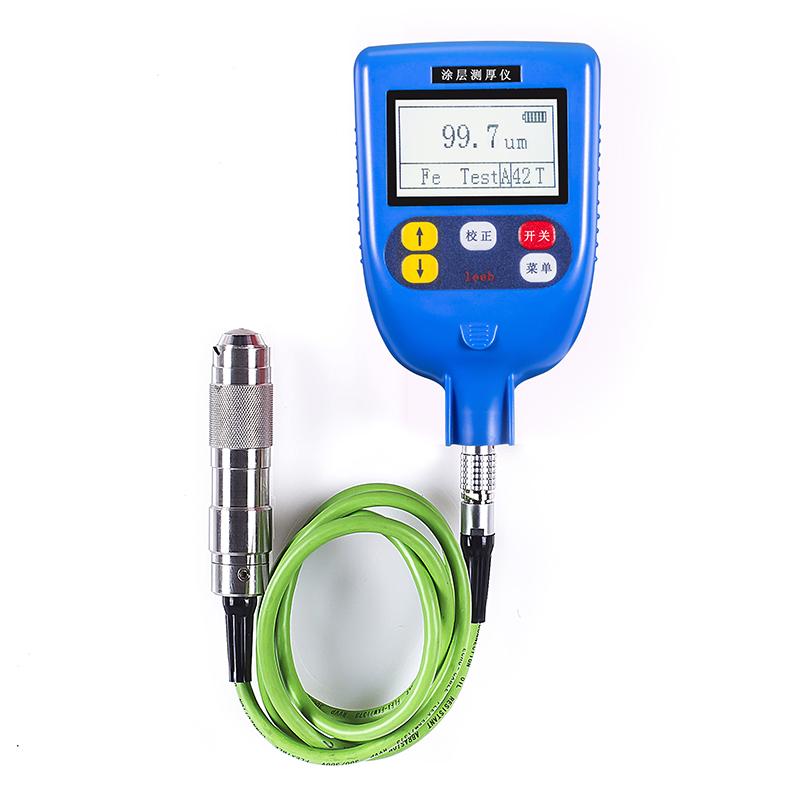

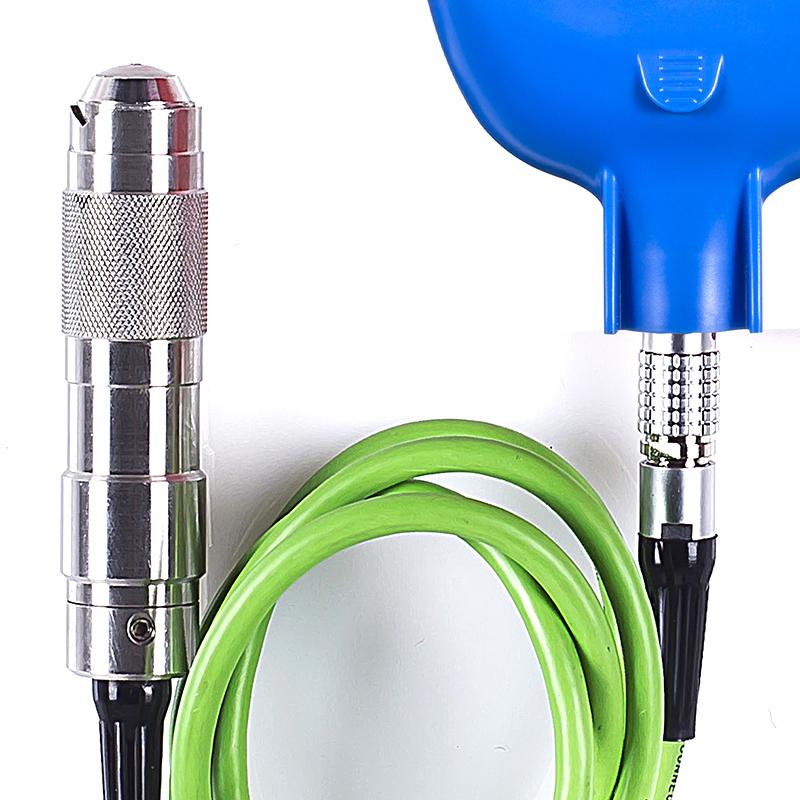

LEEB271 high-precision Coating Thickness Gauge eddy Current Probe Replaceable

leeb271

Coating Thickness Gauge

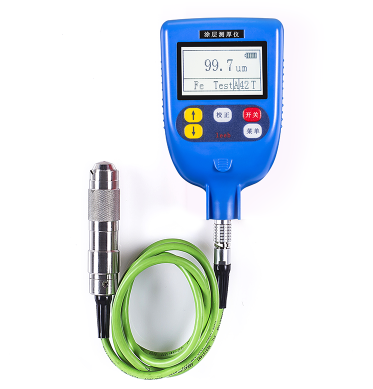

High Precision Coating Thickness Gauge LEEB271It is possible to measure coatings and plating quickly, without damage, and with precision. It can be used both in the laboratory and in the engineering field. By adapting to different probes, a wide range of measurement needs can also be accommodated. This instrument is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is an instrument required for the material protection profession. This instrument conforms to the standard: GB/T 4957-1985 Thickness measurement of non-conductive overlay on non-magnetic metal matrix, eddy current method. JB/T 8393-1996 Eddy Current Cladding Thickness Gauge JJG818-93

Features

● Full Chinese menu interface operation, simple and convenient;

● This instrument adopts the eddy current thickness measurement method, which can non-destructively measure non-magnetic metal substrates (such as aluminum, copper, zinc, rubber on tin, plastics, paints, oxide films, etc.)

● There are two measurement methods: continuous measurement mode (CONTINUE) and single measurement mode (SINGLE);

● It has two Operating Modes: direct mode (DIRECT) and group mode (A-B);

● There are five statistics: MEAN, MAX, MIN, NO.,

  standard deviation (S.DEV);

●A variety of calibration methods: the instrument is basically calibrated, and the systematic error of the instrument can be corrected by using five test pieces calibration;

● With storage function: it can store 4 types of workpieces, 26 groups of each type of workpiece, 15 measured values in each group, a total of 1560 measured values;

● It has the function of deleting: deleting a single suspicious data that appears in the measurement, and also deleting all the data in the storage area in order to carry out new measurements;

● Set the limit: the measured value outside the limit can be automatically alarmed;

● There is a beep prompt during the operation;

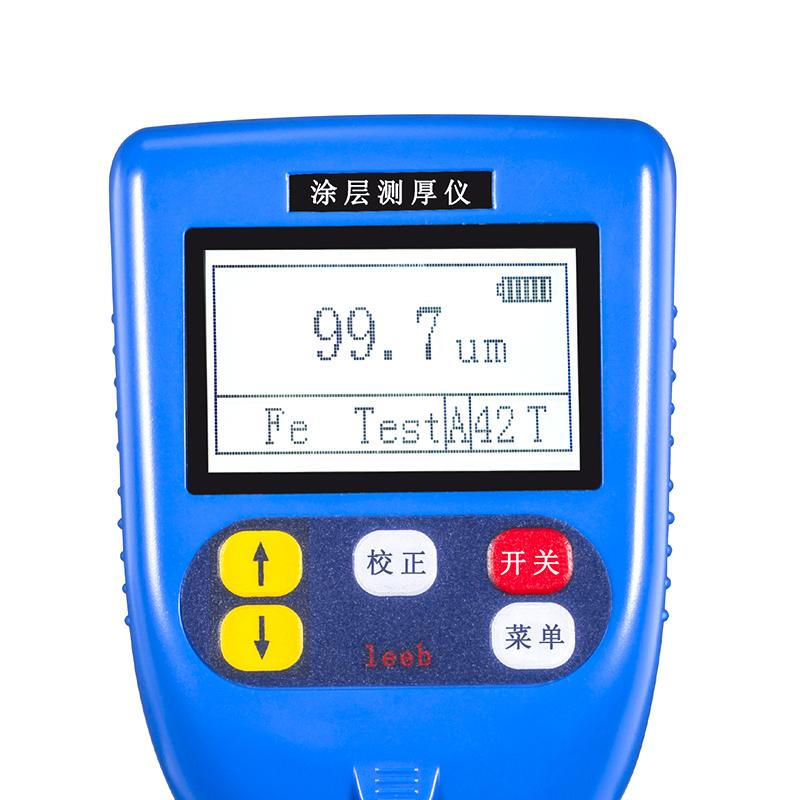

● High-brightness LED backlight display, which is convenient for use in dark environments.

● There are two shutdown modes: manual shutdown mode and automatic shutdown mode

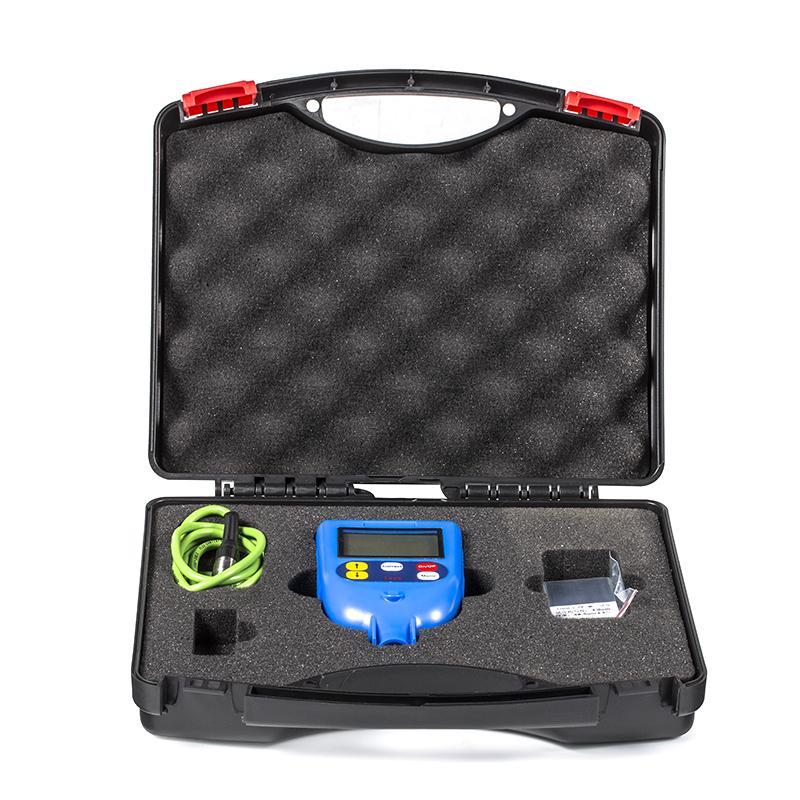

Packing list：host, standard test piece, substrate, 4 AA batteries, documents, instrument case

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
