KSJ WGG60-ES4 Stone glossiness instrument measuring range 0~150GU

SE
Rechargeable Stone special Glossiness Meter, suitable for building decoration materials and other non-metallic material surface Gloss measurement, WGG60-ES4 adopts aluminum alloy shell, built-in rechargeable battery.
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

KSJ WGG60-ES4 Stone Glossiness MeterSPEC

KSJ WGG60-ES4 Stone Glossiness MeterDetails

KSJ WGG60-ES4 Stone Glossiness MeterPacking list

SKU
NB002174
Geometry
60°
Measurement range
0~199GU
Measuring Areas
18*36mm
Error of indication
±2GU
Division Value
1GU
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Dimensions
130*40*80mm
Weight
430g
Power
Built-in Ni-MH battery pack 4x1.2V, 600mAh
Measurement port size
20*50mm
Reading range
0~199GU
Zero Error
1GU
Stability
1GU
Operating Time
Power-on continuous use time > 48h
Charging time
The whole process is charged for 14 to 16 hours.
Charger
AC 187~ 242 (50Hz)
WGG60-ES4
Stone Glossiness Meter
Rechargeable Stone special Glossiness Meter, suitable for building decoration materials and other non-metallic material surface Gloss measurement, WGG60-ES4 adopts aluminum alloy shell, built-in rechargeable battery.
KSJ WGG60-ES4 Stone glossiness instrument measuring range 0~150GU Picture

product description

Palm size, easy to carry.

WGG60-ES4 has a built-in rechargeable battery pack. It can be used continuously for more than 24 hours on a full charge.

Application

WGG60-ES4 Stone Gloss Meter is a gloss meter specially designed for stone, especially suitable for gloss measurement of marble, granite, terrazzo and other stone surfaces.

structure diagram

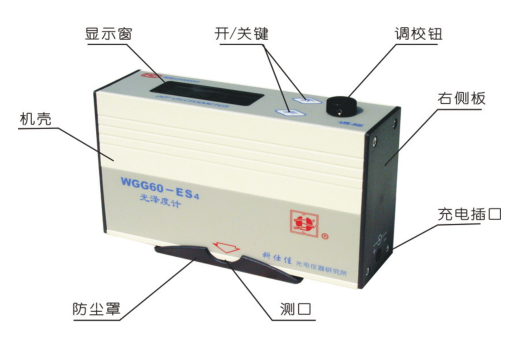

KSJ WGG60-ES4 stone gloss meter structure diagram

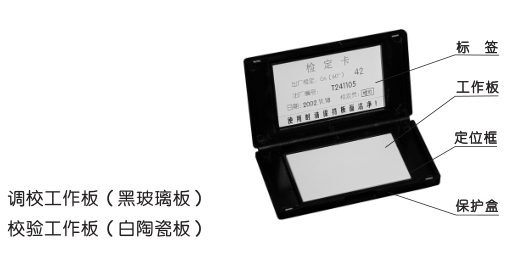

Structural diagram of the working board of KSJ WGG60-ES4 stone gloss meter

Standards

WGG60-ES4 Stone Gloss Meter complies with the standards ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Board" metrological verification regulations.

plan

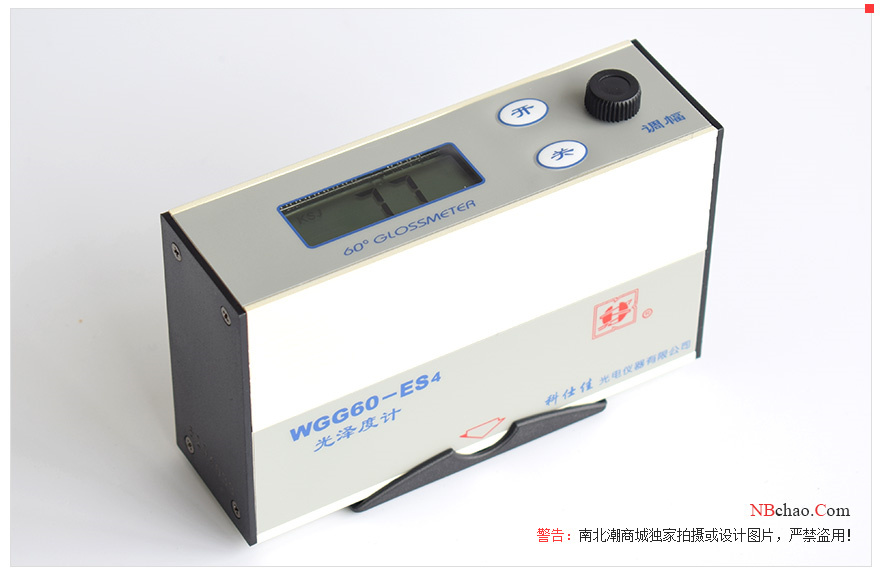

KSJ WGG60-ES4 Stone Gloss Meter Appearance

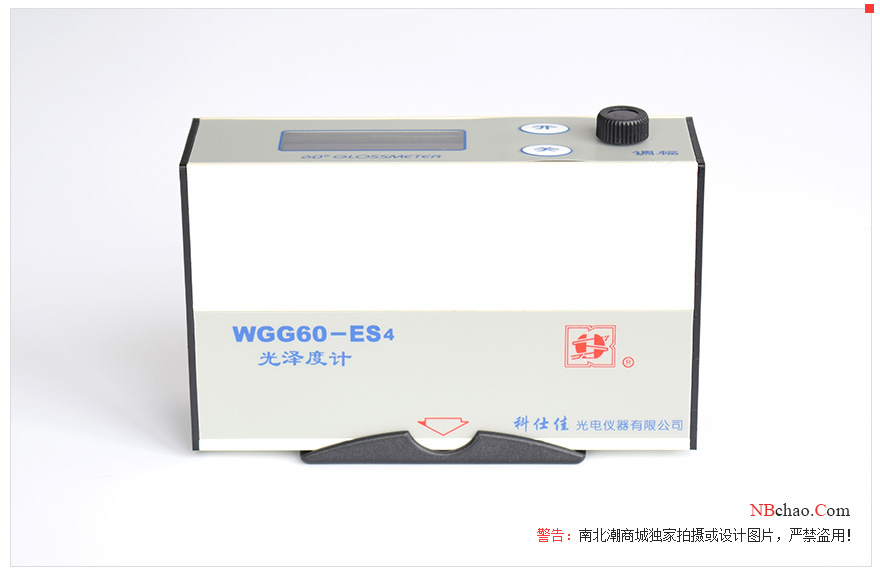

KSJ WGG60-ES4 Stone Gloss Meter Details

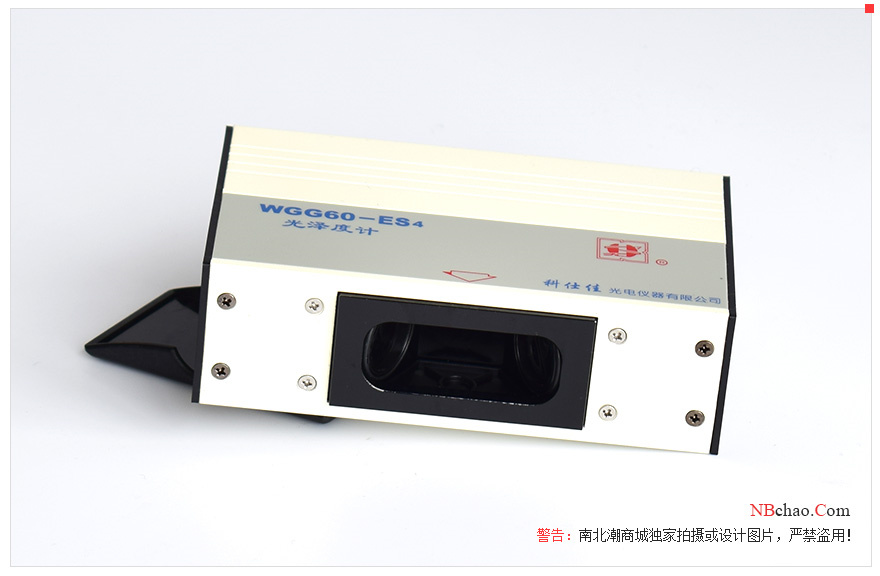

KSJ WGG60-ES4 Stone Gloss Meter Details Figure 2

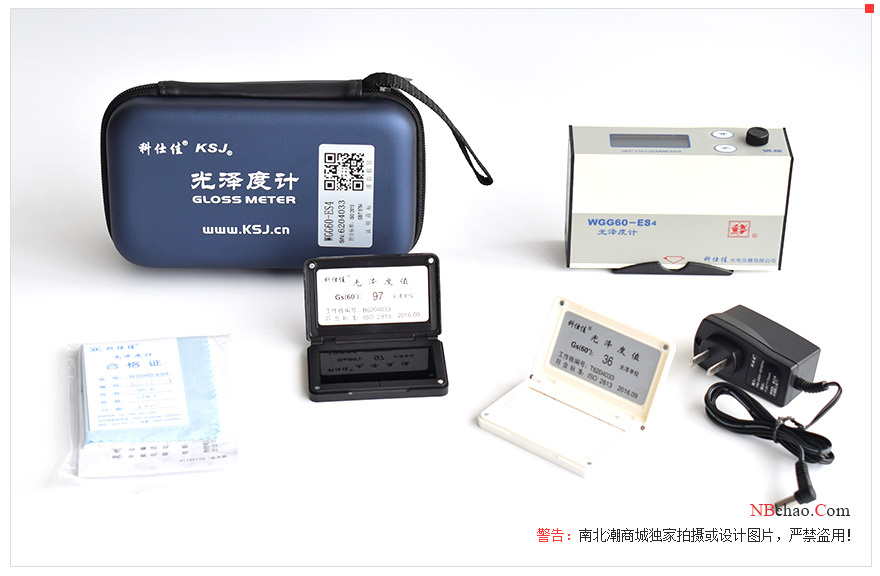

KSJ WGG60-ES4 stone gloss meter accessories diagram

FAQ
QWhat does the glossmeter calibration shim black and white version mean? What is the use of white, which is different from black?
A That blackboard is for adjusting the machine, and the whiteboard is for proofreading this blackboard. First put the machine on the blackboard, then adjust it to the numbers on the blackboard, and then put the machine on the whiteboard to see if the value displayed by the instrument is the number on the whiteboard. If he looks at you, the model will be divided into four sub-errors. The specific instructions are explained in detail.
QWhich Stone glossmeter, single angle?
A KSJ WGG60-ES4 is a Stone-specific glossmeter, 60 degrees.
QDoes the glossmeter need to be calibrated frequently?
A Generally, it is recommended to re-calibrate after a period of use or a long boot time to ensure the accuracy of the next measurement.
QCNAS calibrated certificate required
A You can choose and need to pay extra.
QPottery and porcelain gloss values can be tested in the range?
A Hello, it's OK.
QIs the WGG60-ES4 Stone gloss instrument for auto calibration?
A Hello, no, it is manually calibrated.
QWill the strong light environment affect the measurement of glossmeters? How to solve?
A Strong light environment will affect the measurement of glossmeter, it is recommended to avoid strong light environment measurement, if you want to avoid external light leakage, you can use black flannel around the measuring port to block the rays of light.
QWGG60 series gloss meter how to adjust, how long can a charge?
A Adjustment method: Turn on the power supply, remove the dust cover, and place the measuring port on the adjusting black working board. After half a minute, adjust the "adjustment" button to make the displayed value equal to the verification value of the black working board. Note that the glossmeter measuring port needs to be buckled into the positioning, frame, and adjustment indication of the working board to be valid. And the instrument needs to be adjusted every time it is turned on. The instrument can be turned on and used for more than 48 hours after being fully charged.
QWhat is the difference between WGG60 series and MG series Glossiness?
A WGG60 series host power supply is built-in rechargeable lithium battery. MG series host power supply is an AA (No. 5) rechargeable or alkaline battery. If the use Frequency is high, use WGG60 series. On the contrary, if the use Frequency is low, use MG series, but please take out the battery after use to protect the instrument host.
QHello, how many volts is the charger of your gloss meter?
A Hello, charger power supply: AC 187~ 242 (50Hz) regular voltage is enough.
