KSJ MG6-SA Microporous Gloss Meter, range 0~999GU polished mirror measurement

SE
4mmx2mm small measurement window, for facet Gloss test, measurement 0.0~999GU, because of its wide range design, very suitable for polishing mirror measurement.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KSJ MG6-SA Microporous Gloss MeterSPEC

KSJ MG6-SA Microporous Gloss MeterDetails

KSJ MG6-SA Microporous Gloss MeterPacking list

SKU
NB002175
Geometry
60°
Measurement range
0~999GU
Measuring Areas
1.5*3mm
Error of indication
±2;±1.5％GU
Division Value
1GU
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Dimensions
123*38*65mm
Weight
300g
Power
1.2~ 1.5 AA (No. 5) rechargeable or alkalinity battery
Measurement port size
2*4mm
Reading range
0~999GU
Zero Error
1GU
Operating Time
Depending on the type of battery, the continuous use time of the alkalinity battery is > 58h
MG6-SA
Microporous Gloss Meter
4mmx2mm small measurement window, for facet Gloss test, measurement 0.0~999GU, because of its wide range design, very suitable for polishing mirror measurement.

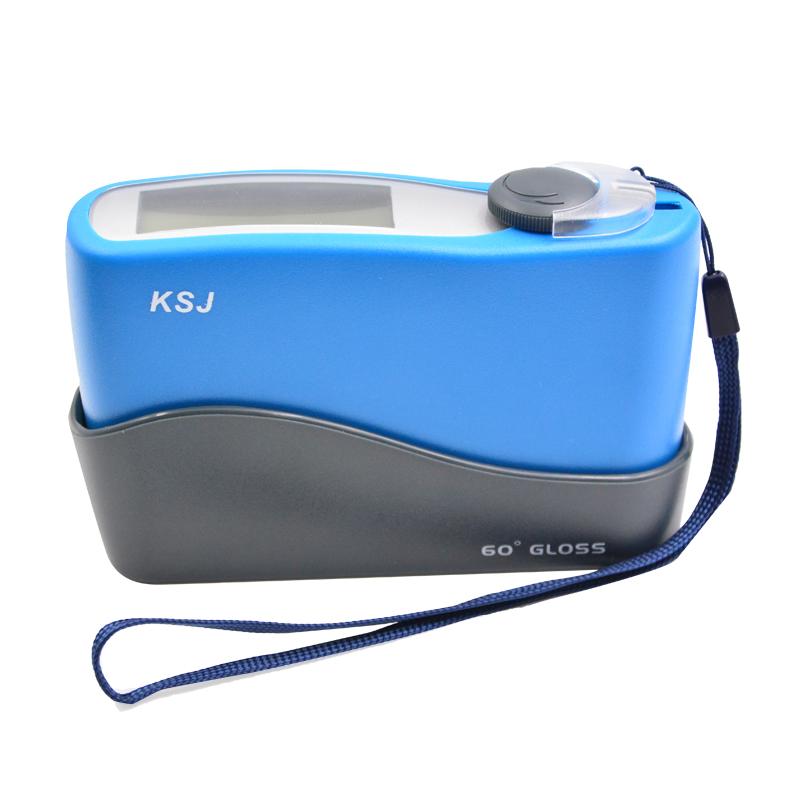

KSJ MG6-SA Microporous Gloss Meter, range 0~999GU polished mirror measurement Picture

product description

★Single AA size (AA) alkaline batteries or rechargeable batteries are equally easy to use.

★Low energy consumption: A single AA alkaline battery can last for more than 58 hours.

★The whole set of equipment is designed in one piece, it can be used immediately when it is turned on, and it is easy to carry.

★Specially equipped with a protective cover for the adjustment button, the operation is more assured.

★Anti-scratch coating on the test port to prevent scratching the measured object.

★Small size, beautiful appearance, stable performance, easy to use!

Product Structure

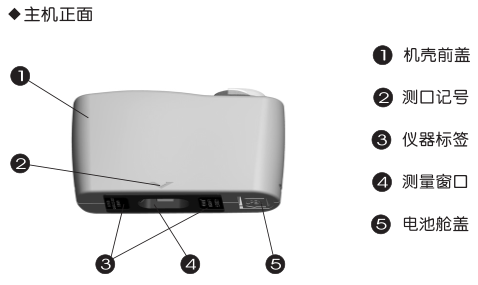

KSJ MG6-SA microporous gloss meter front structure diagram

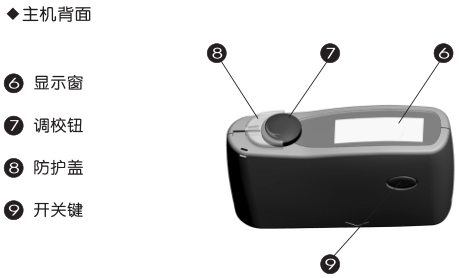

KSJ MG6-SA microporous gloss meter host back view

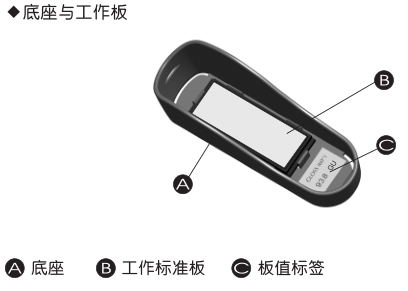

Structural diagram of KSJ MG6-SA microporous gloss meter base

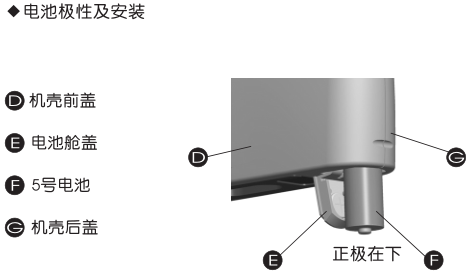

Structural diagram of the battery compartment of KSJ MG6-SA microporous gloss meter

Application

★Measuring beam diameter 1.5mm, measuring window 4mmx2mm, suitable for gloss measurement of small planes and small curvature surfaces on the surface of various materials and objects.

★Gloss measurement of various metal and non-metal materials and their coated surfaces.

★Very suitable for measuring polished mirror surfaces.

Standards

MG6-SA Microporous Gloss Meter complies with the requirements of the secondary working machine in the measurement verification regulations of ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Board" .

plan

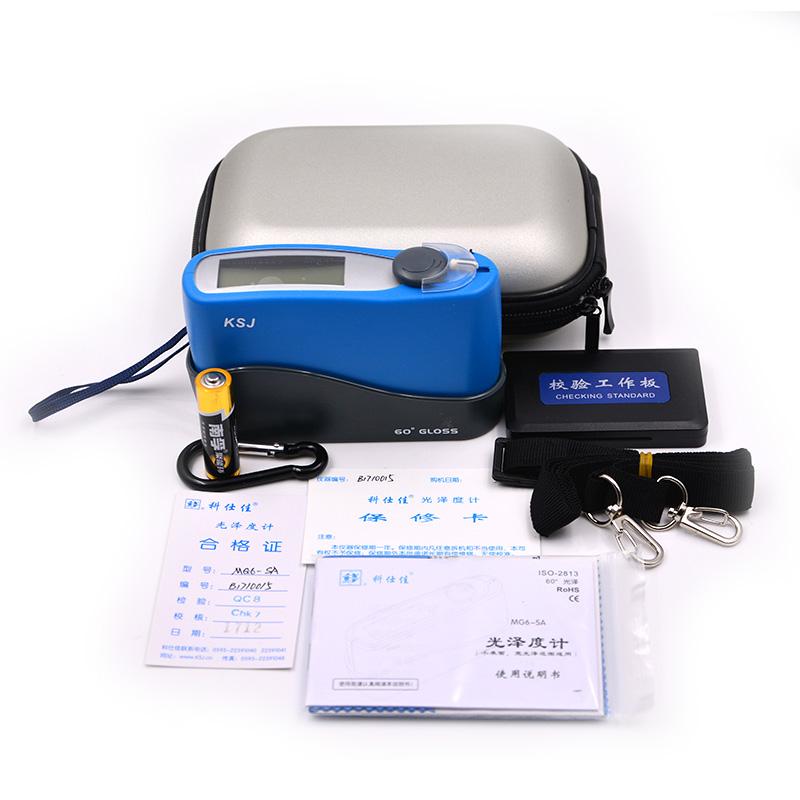

KSJ MG6-SA microporous gloss meter accessories diagram

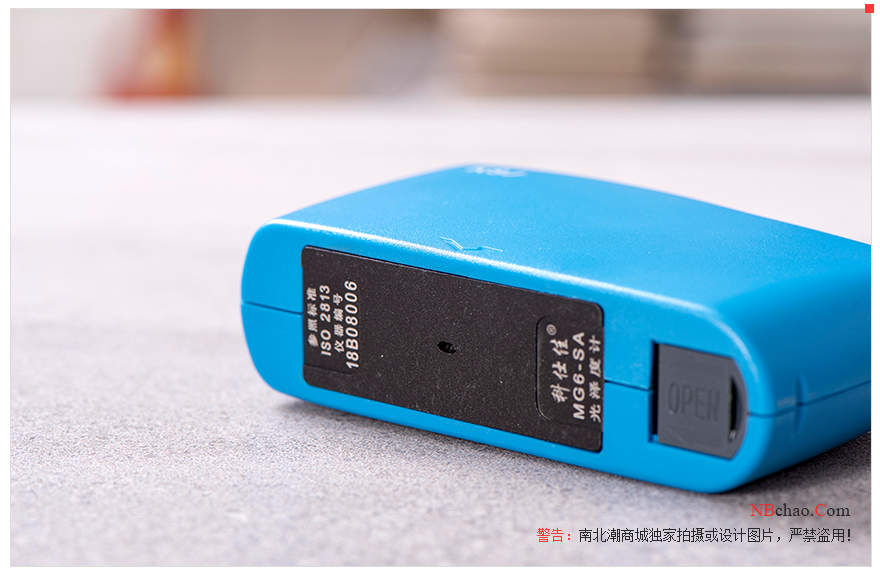

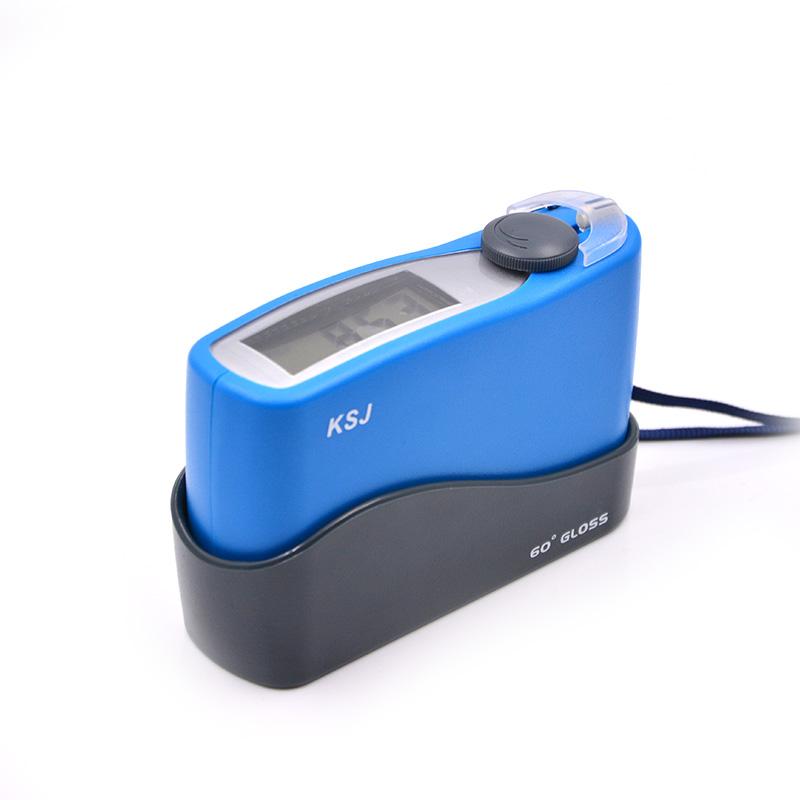

Koshijia MG6-SA Microporous Gloss Meter Small Hole Details

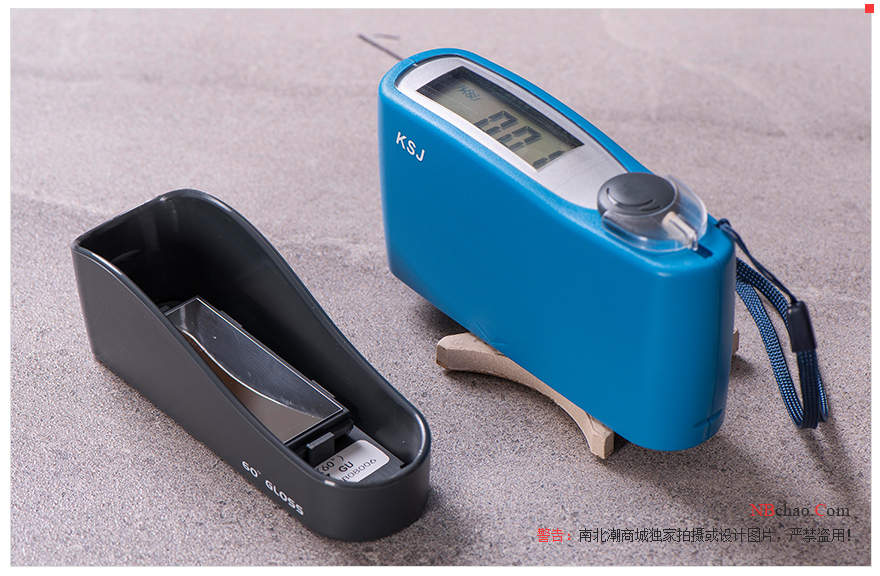

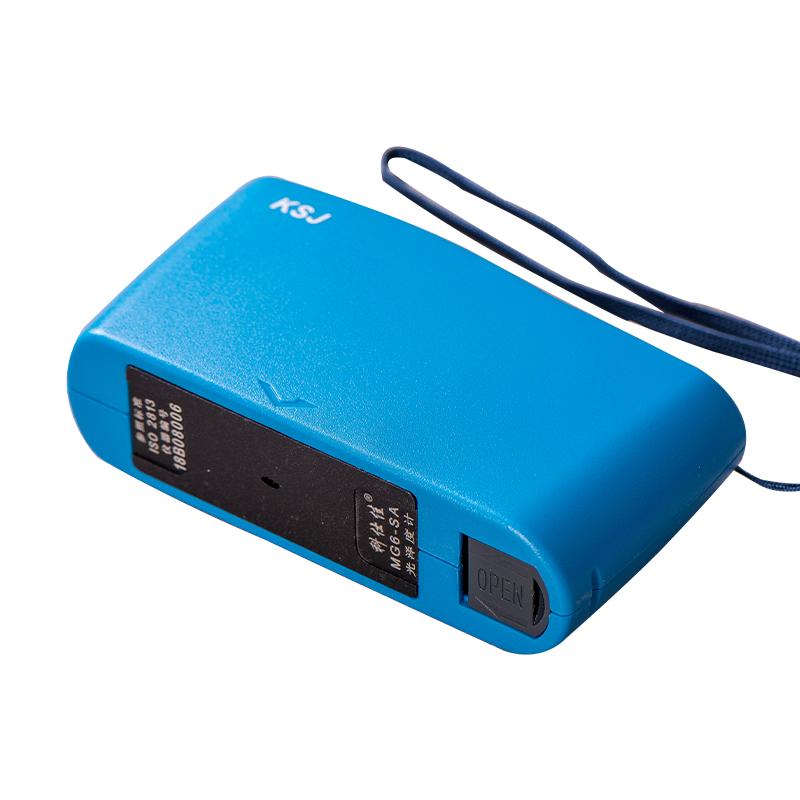

KSJ MG6-SA Microporous Gloss Meter Appearance

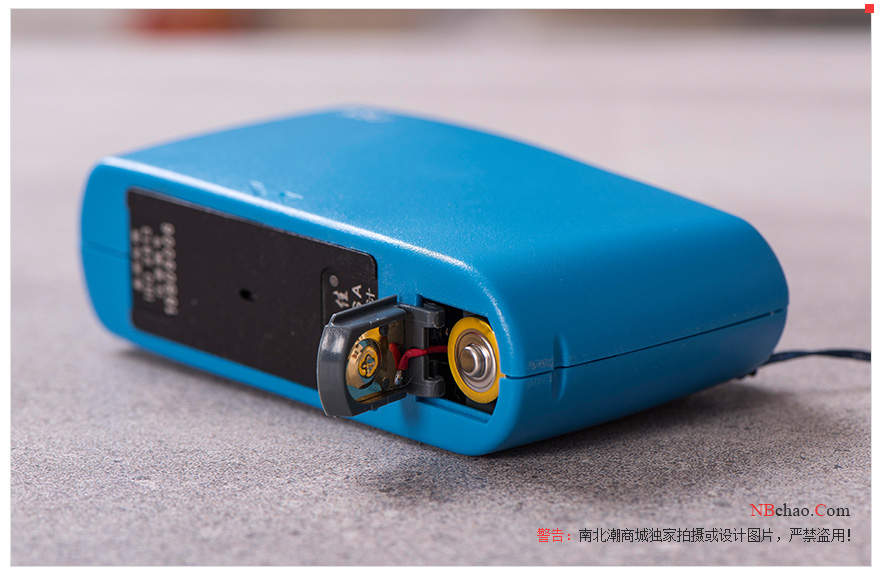

Details of the battery compartment of KSJ MG6-SA Microporous Gloss Meter

FAQ
QI am mainly used for the measurement of the luminance of the surface. The line meter of the aluminum mg line is round. Our wire diameter is mainly 5.5mm---0.12mm. It should be no problem
A It can be tested.
QWhich KSJ glossmeter can measure polishing specular gloss?
A MG6-SA is OK, and its range is relatively wide from 0 to 999GU.
QDoes the glossmeter need to be calibrated frequently?
A Generally, it is recommended to re-calibrate after a period of use or a long boot time to ensure the accuracy of the next measurement.
QMeasurement of the surface of the workpiece is curved, which Glossiness is more appropriate?
A Both MG6-FS and MG6-SA can measure the Glossiness of facet or small curvature surfaces. The main application range of MG6-FS is Non-metallic materials. MG6-SA is mainly suitable for metallic materials. Both have a measurement window of 2.0x4.0mm and a Measuring Area of 1.5x3.0mm.
QIs this MG6-SA Microporous Gloss Meter charged?
A Hello, this MG6-F1 can be equipped with AA5 battery or rechargeable battery.
QWhat is the error of indication of this Microporous Gloss meter?
A Hello, the error is ± 2GU within 0~ 120GU, and ± 1.5% within 121~ 999.
QWhat is the measurement size of the Keshijia MG6-SA Microporous Gloss Meter?
A Hello, the measurement port size is 2 * 4mm.
QWill the strong light environment affect the measurement of glossmeters? How to solve?
A Strong light environment will affect the measurement of glossmeter, it is recommended to avoid strong light environment measurement, if you want to avoid external light leakage, you can use black flannel around the measuring port to block the rays of light.
QWhat is the difference between WGG60 series and MG series Glossiness?
A WGG60 series host power supply is built-in rechargeable lithium battery. MG series host power supply is an AA (No. 5) rechargeable or alkaline battery. If the use Frequency is high, use WGG60 series. On the contrary, if the use Frequency is low, use MG series, but please take out the battery after use to protect the instrument host.
QHow to adjust the MG6-SA gloss meter after turning it on?
A Hello, this Gloss meter is a ready-to-use type and does not need to be adjusted. If it needs to be adjusted later, the manufacturer supports free adjustment.
