KSJ MG6-FS microporous Glossmeter self-calibrated with Bluetooth

SE
Range 0.0~150.0GU, using facet Gloss measurement, suitable for gloss measurement of facets and small curvature surfaces on various materials and articles.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

KSJ MG6-FS Microporous GlossmeterSPEC

KSJ MG6-FS Microporous GlossmeterDetails

KSJ MG6-FS Microporous GlossmeterPacking list

SKU
NB002176
Measurement angle
60°
Measurement range
0~199.9GU
Measuring Areas
1.5*3mm
Error of indication
±1.5GU
Graduation
0.1GU
Standards
ISO2813、GB9754、ASTM D2457、ASTM D523、GB/T13891、GB7706、GB8807、JJG696-2002
Dimensions
123*38*65mm
Weight
300g
Power
1.2~ 1.5 AA (No. 5) rechargeable or alkaline battery
Measurement port size
2*4mm
Zero Error
0.2GU
Stability
0.4GU
Operating Time
Depending on the type of battery, the continuous use time of the alkaline battery is > 58h
MG6-FS
Microporous Glossmeter
Range 0.0~150.0GU, using facet Gloss measurement, suitable for gloss measurement of facets and small curvature surfaces on various materials and articles.
KSJ MG6-FS microporous Glossmeter self-calibrated with Bluetooth Picture

product description

★A single AA alkaline battery or rechargeable battery works equally well.

★Low energy consumption: A single AA alkaline battery can last for more than 58 hours.

★The entire set of instruments is designed in one piece, ready to use when turned on and easy to carry.

★Specially equipped with a protective cover for the adjustment button, making operation more secure.

★The measuring port is treated with anti-scratch coating to prevent scratches on the object being measured.

★Small size, beautiful appearance, stable performance and easy to use!

Instrument structure

Front structure diagram of COSJA MG6-FS micropore gloss meter

Cosjia MG6-FS Microhole Gloss Meter Back Structural Diagram

Cosjia MG6-FS microhole gloss meter base working plate structure diagram

Kosjia MG6-FS Microhole Gloss Meter Battery Polarity and Installation Structure Diagram

Application scope

★Measurement beam diameter 1.5mm, measurement window 4mmx2mm, suitable for gloss measurement of small flat surfaces and small curvature surfaces on various materials and objects.

★Gloss measurement on the surface of paint, baking varnish, paint, ink and other coating materials.

★Gloss measurement on the surface of stone, ceramic tiles, profiles and other building decoration materials.

★Gloss measurement of paper, bamboo, plastic, film and other surfaces.

★Gloss measurement of other material surfaces.

Standards compliant

The MG6-FS micropore gloss meter complies with the standards of ISO2813, GB9754, ASTM D2457, ASTM D523, GB/T13891, GB7706, GB8807, JJG696-2002 "Mirror Gloss Meter and Gloss Plate" and is a first-class working machine in the metrological verification regulations. Specify requirements.

plan

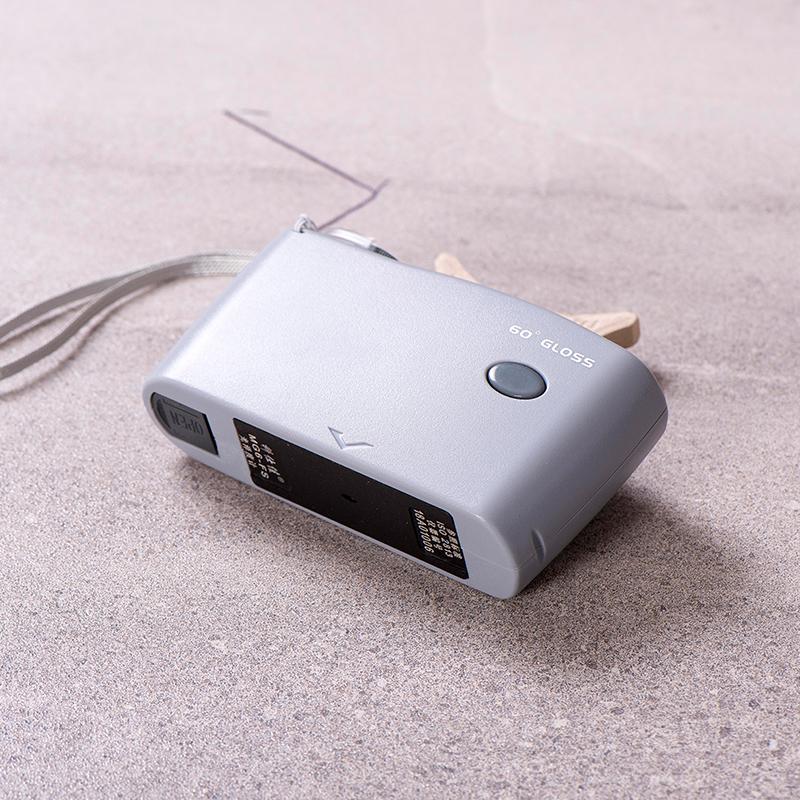

Cosjia MG6-FS Microhole Gloss Meter Appearance

Koshijia MG6-FS microhole gloss meter display screen

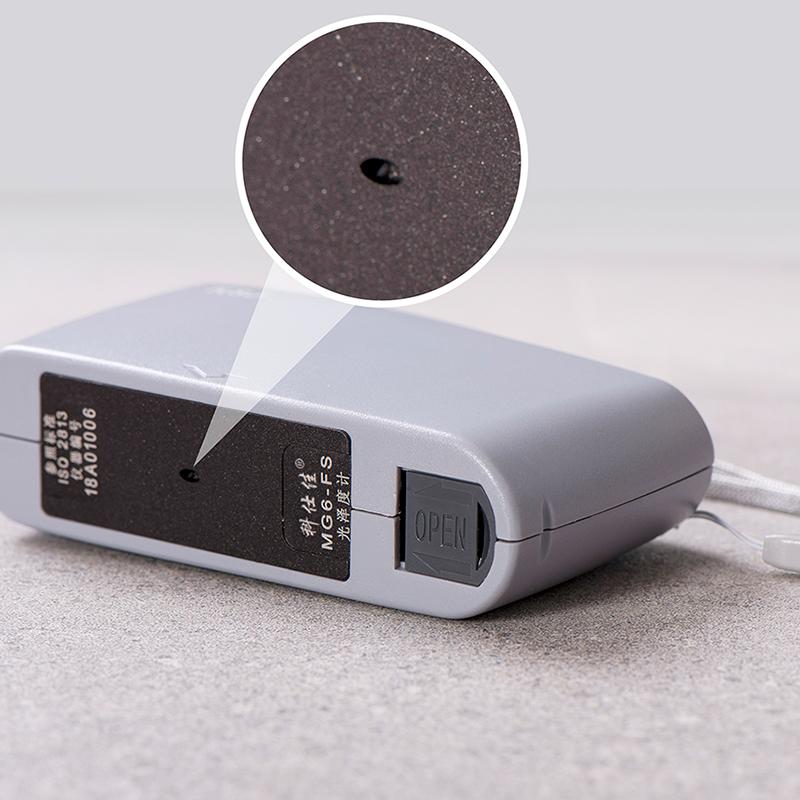

Detailed view of the bottom of COSJA MG6-FS microhole gloss meter

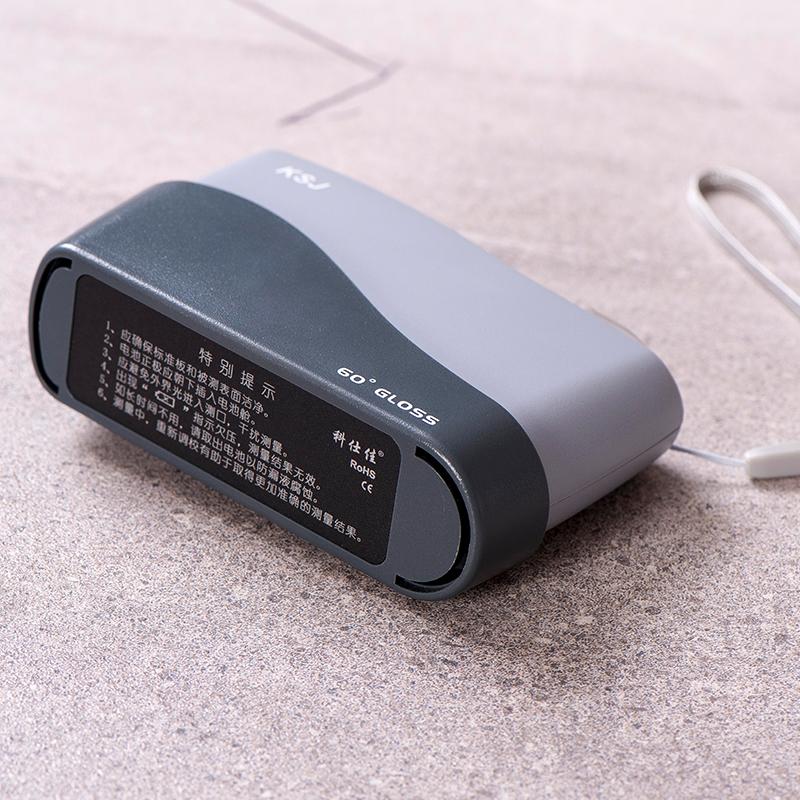

Koshijia MG6-FS Microhole Gloss Meter Side View

Koshijia MG6-FS micropore gloss meter accessories diagram

FAQ
QCan MG6-FS test the surface Gloss of screws?
A Yes, but it depends on how big the contact surface of the screw is. This glossmeter is a 1.5 * 3mm Measuring Area.
QDoes the glossmeter need to be calibrated frequently?
A Generally, it is recommended to re-calibrate after a period of use or a long boot time to ensure the accuracy of the next measurement.
QMeasurement of the surface of the workpiece is curved, which Glossiness is more appropriate?
A Both MG6-FS and MG6-SA can measure the Glossiness of facet or small curvature surfaces. The main application range of MG6-FS is Non-metallic materials. MG6-SA is mainly suitable for metallic materials. Both have a measurement window of 2.0x4.0mm and a Measuring Area of 1.5x3.0mm.
QCan this MG6-FS Gloss meter measure furniture?
A Hello, it's OK.
QWhat is the measurement caliber of this Microporous Gloss meter?
A Hello, the measurement diameter is 2 * 4mm.
QHow small size can this Keshijia Gloss meter measure?
A Hello, the test area of this gloss meter is 1.5 * 3mm.
QWill the strong light environment affect the measurement of glossmeters? How to solve?
A Strong light environment will affect the measurement of glossmeter, it is recommended to avoid strong light environment measurement, if you want to avoid external light leakage, you can use black flannel around the measuring port to block the rays of light.
QWhat is the difference between WGG60 series and MG series Glossiness?
A WGG60 series host power supply is built-in rechargeable lithium battery. MG series host power supply is an AA (No. 5) rechargeable or alkaline battery. If the use Frequency is high, use WGG60 series. On the contrary, if the use Frequency is low, use MG series, but please take out the battery after use to protect the instrument host.
QThere is dust on the surface of the lens on the MG6-FS gloss instrument, how to remove it?
A Hello, if there is dust on the surface of the lens, it should be removed with lens paper or a hair dryer. It cannot be wiped with Miscellaneous hard things to avoid damage.
QDoes this microporous glossmeter comply with ISO2813 standard?
A The microporous glossmeter is suitable for ISO2813, please consult customer service for detailed application definition
