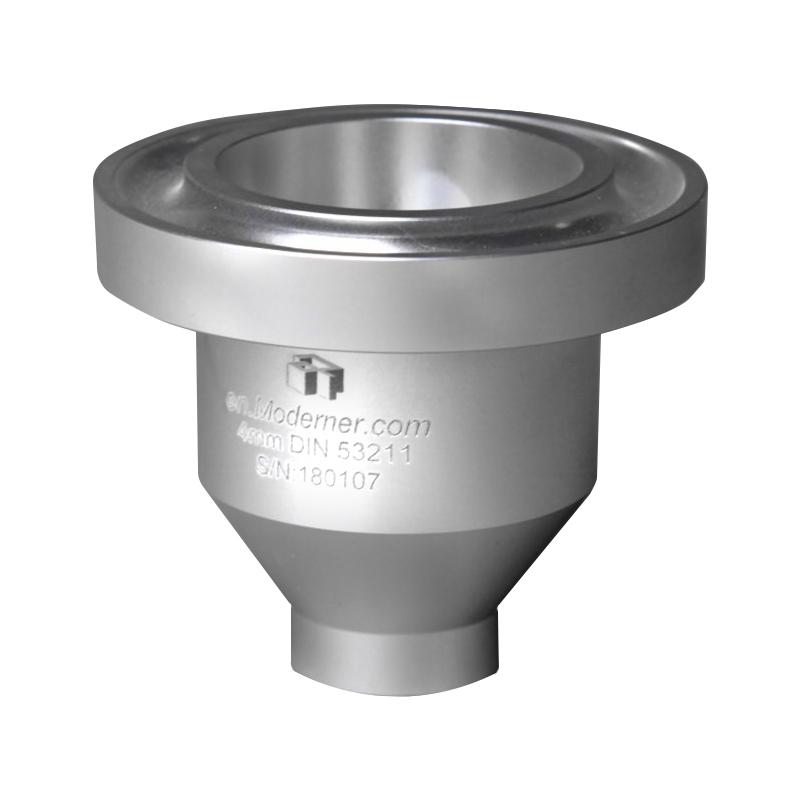

MODERNER DIN-4 Viscosity Cup Coating viscosity Flow Cup

DIN-4

DIN Cup

Viscosity range 96~ 683cSt, outflow time 25~ 150s, flow hole diameter 4mm, capacity 100ml, cup body material aluminum, filter material stainless steel, Applicable standard DIN 53211.

The DIN cup is designed and manufactured according to the German standard DIN 53211. It is often used to measure the viscosity of ink, paint, paint, etc., and it is more convenient to use. It consists of a good aluminum cup with a capacity of about 100ml and a small stainless steel leak nozzle. The viscosity of the test solution is evaluated by measuring the time required for the test solution to flow out of the small hole of the leak nozzle when the cup is filled. It should be noted that the DIN 53211 standard only stipulates the outFlow Cup with a leak diameter of 4mm (cup No. 4), and the outFlow Cups with other apertures are based on DIN 53211 (such as cup No. 6).

Model Selection

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
