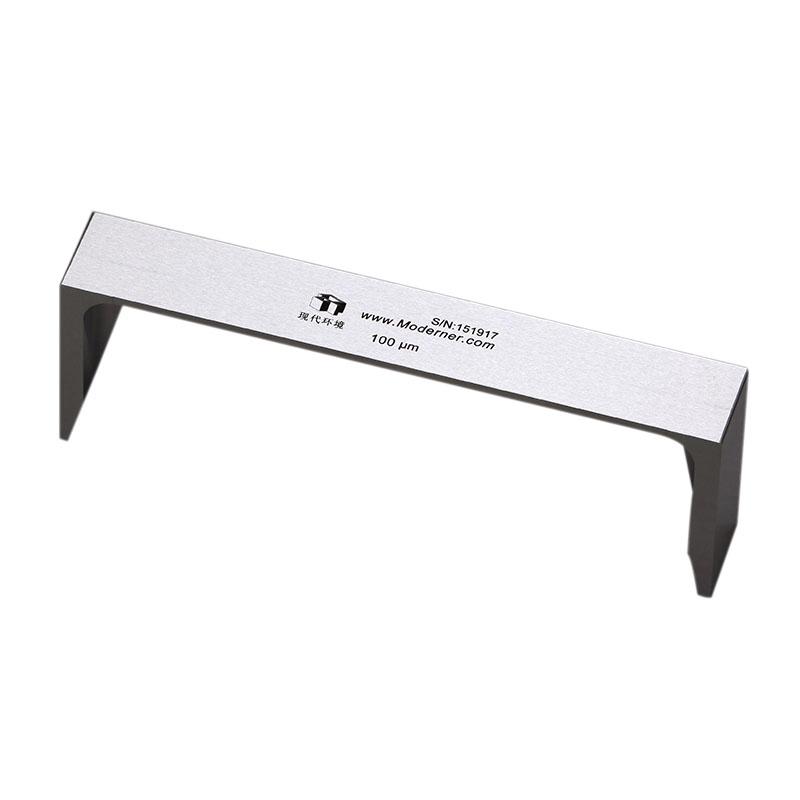

MODERNER U-1000 U-Trough Applicator film thickness 1000μm

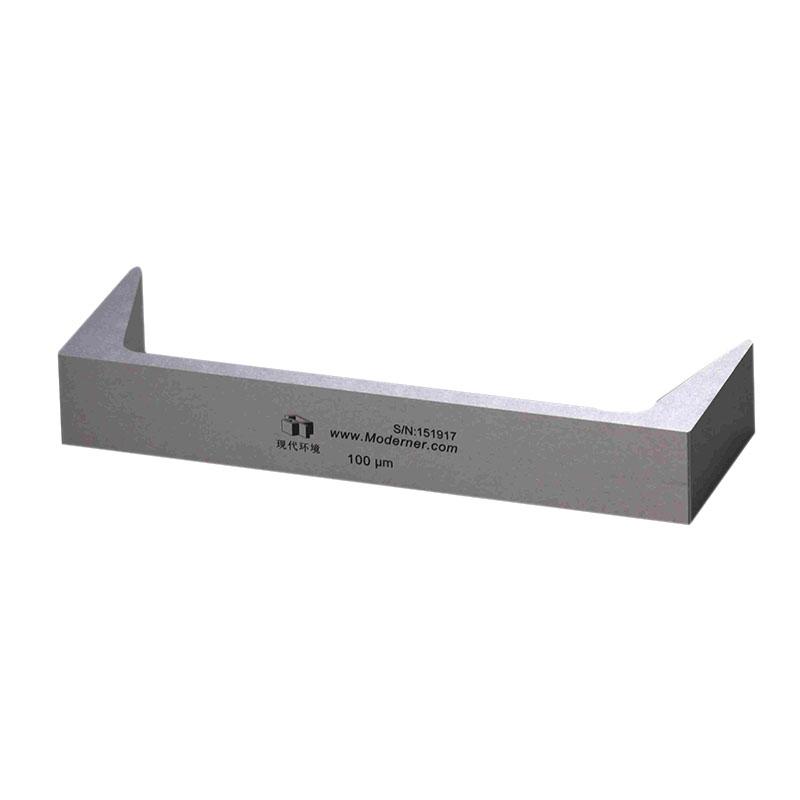

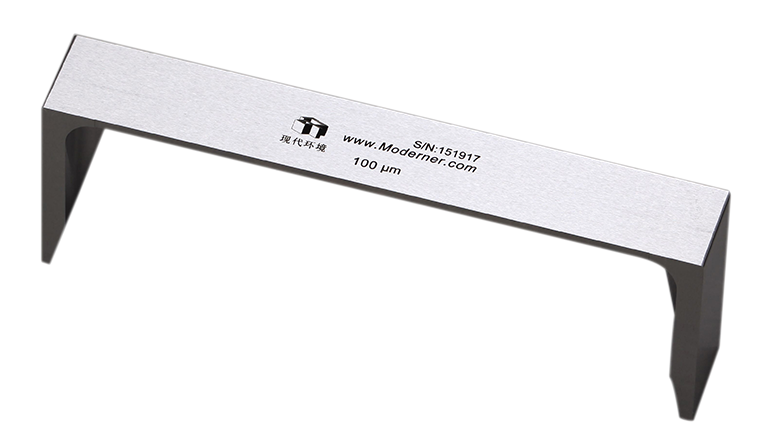

U-1000

U-shaped Slot Applicator

Introduction

Modern Environment U-shaped Trough Preparator U-1000 is a stainless steel U-shaped wet film prepender with a coating film thickness of 1000μm. The U-shaped Trough Preparator has 1 groove with a groove width of 100mm and a size of 127x100mm. .

hardness

HRC48±2

Applications

It is used to coat a wet film of specified thickness to measure the covering power and color of the sample or to prepare samples, etc.

plan

Instructions

Place the template on the platform and secure it so that it does not move when the preparer slides over it. According to the required wet film thickness, select the Applicator, place it on the short side of the sample, close to parallel or at a specified position, then pour about 5 ml of sample in front of the Applicator, press both ends of the Applicator with your fingers, and press at 150 Sliding at a constant speed of mm/second, that is, coating into a wet film of required thickness. After use, wash and dry with solvent, and apply oil or Vaseline on the surface.

Packing list：Applicator X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
