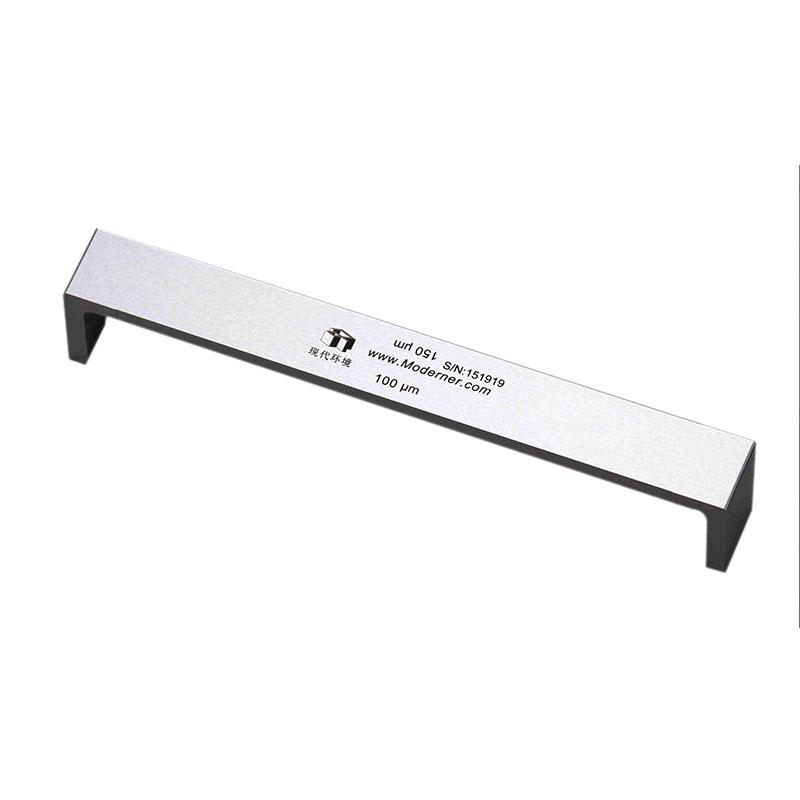

MODERNER Channel Steel-100/150 Channel Steel Type Applicator film thickness 100/150 μm

Channel Steel - 100/150

Channel Type Applicator

Introduction

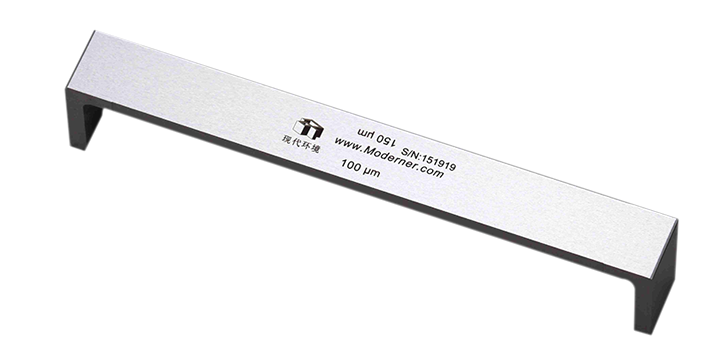

MODERNER channel steel-100/150 channel steel type preparer has coating film thickness of 100μm and 150μm, made of stainless steel, the channel steel type preparer has 2 grooves, the groove width is 102mm, and the size is 115x102mm.

hardness

HRC48±2

Applications

It is used to coat a wet film of specified thickness to measure the covering power and color of the sample or to prepare samples, etc.

plan

Instructions

Place the template on the platform and secure it so that it does not move when the preparer slides over it. According to the required wet film thickness, select the Applicator, place it on the short side of the sample, close to parallel or at a specified position, then pour about 5 ml of sample in front of the Applicator, press both ends of the Applicator with your fingers, and press at 150 Sliding at a constant speed of mm/second, that is, coating into a wet film of required thickness. After use, wash and dry with solvent, and apply oil or Vaseline on the surface.

Packing list：Applicator X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
