MODERNER Channel Steel-250 Channel Steel Type Applicator film thickness 250μm
Channel Steel-250
Moderner Channel Steel-250 Channel Type ApplicatorSPEC
Moderner Channel Steel-250 Channel Type ApplicatorDetails
Moderner Channel Steel-250 Channel Type ApplicatorPacking list
- SKU
- NB021841
- type
- Channel steel type
- WFT
- 250μm
- Application width
- 202mm
- material
- stainless steel
- size
- 215*202mm
Introduction

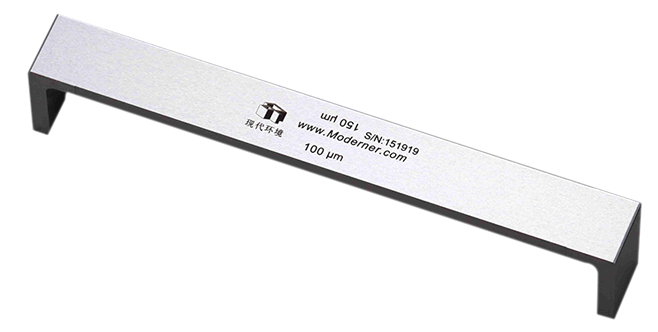

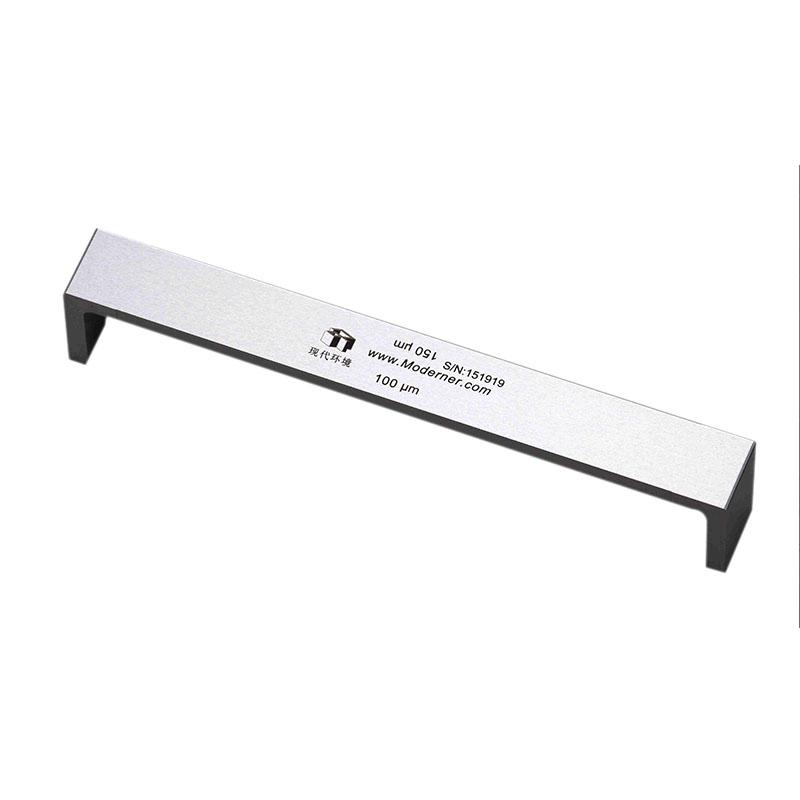

The coating thickness of the MODERNER channel steel-250 channel steel type preparer is 250μm, and it is made of stainless steel. The channel steel type preparer has 1 groove, the groove width is 202mm, and the size is 215x202mm.
hardness
HRC48±2
Applications
It is used to coat a wet film of specified thickness to measure the covering power and color of the sample or to prepare samples, etc.
plan
Instructions
Place the template on the platform and secure it so that it does not move when the preparer slides over it. According to the required wet film thickness, select the Applicator, place it on the short side of the sample, close to parallel or at a specified position, then pour about 5 ml of sample in front of the Applicator, press both ends of the Applicator with your fingers, and press at 150 Sliding at a constant speed of mm/second, that is, coating into a wet film of required thickness. After use, wash and dry with solvent, and apply oil or Vaseline on the surface.
