MODERNER Five-slot Bird-type -100 Wet Film Applicator film thickness 100μm

Five-slot Bird-type -100

Five-slot Bird-type Applicator

Introduction

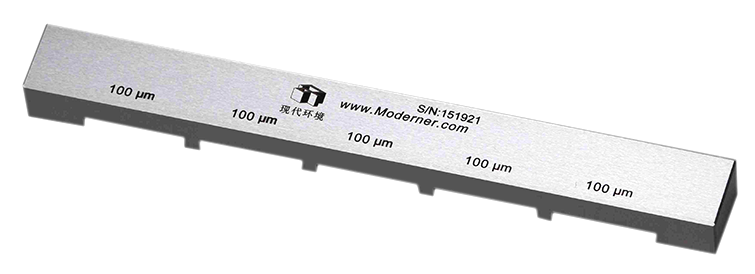

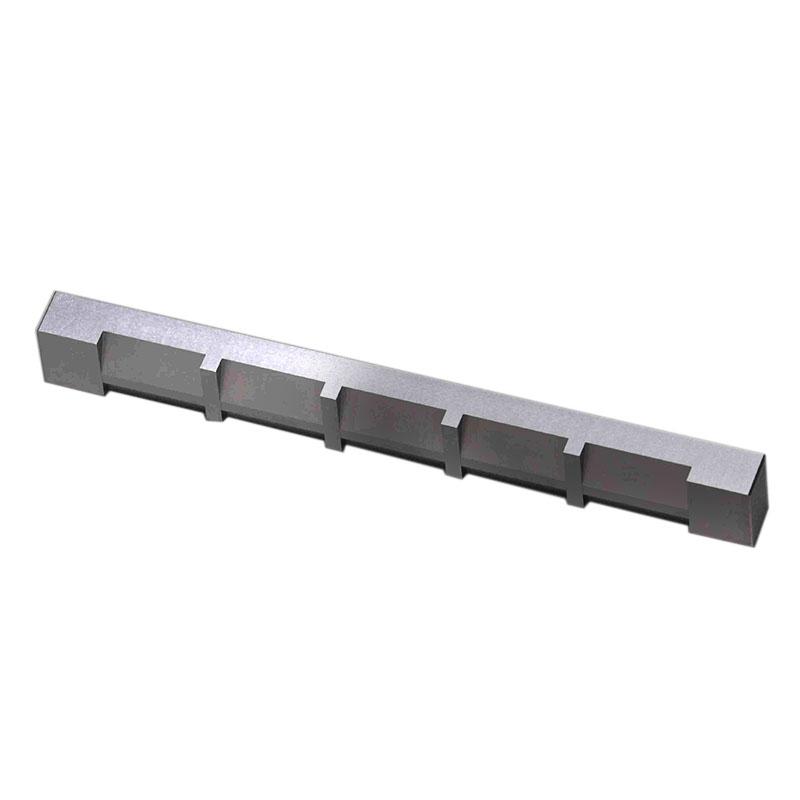

The Modern Environment Five-Slot Bird-100 Wet Film Applicator has five slots, each with a coating thickness of 100 microns. It is a single-sided stainless steel preparator. The Five-Slot Bird Preparator has 2 grooves, with a groove width of is 31.75mm and the dimensions are 215x 31.75 mm.

hardness

HRC48±2

Applications

It is used to coat a wet film of specified thickness to measure the covering power and color of the sample or to prepare samples, etc.

plan

Instructions

Place the template on the platform and secure it so that it does not move when the preparer slides over it. According to the required wet film thickness, select the Applicator, place it on the short side of the sample, close to parallel or at a specified position, then pour about 5 ml of sample in front of the Applicator, press both ends of the Applicator with your fingers, and press at 150 Sliding at a constant speed of mm/second, that is, coating into a wet film of required thickness. After use, wash and dry with solvent, and apply oil or Vaseline on the surface.

Packing list：Applicator X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
