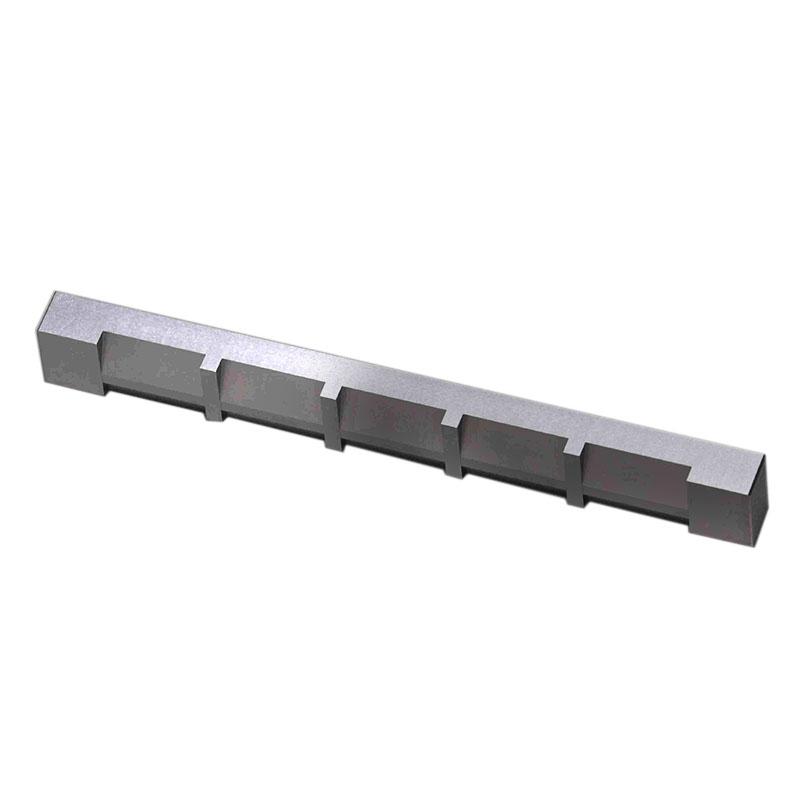

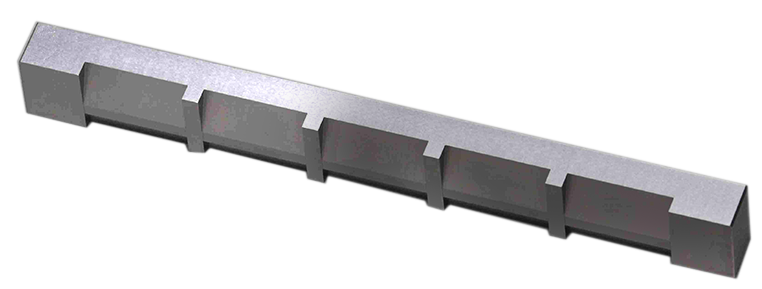

MODERNER Five-slot Bird-type - 50/100/150/200/250 Wet Film Applicator

Five-slot Bird-type - 50/100/150/200/250

Five-slot Bird-type Applicator

Introduction

MODERNER five-slot bird type-150 wet Film Applicator has five slots, and the coating thickness is 150μm, 50μm, 100μm, 250μm, 200μm. It is a stainless steel preparer. The five-slot bird type preparer has 2 grooves. , groove width is 20mm, size is 132×20mm.

hardness

HRC48±2

Applications

It is used to coat a wet film of specified thickness to measure the covering power and color of the sample or to prepare samples, etc.

plan

Instructions

Place the template on the platform and secure it so that it does not move when the preparer slides over it. According to the required wet film thickness, select the Applicator, place it on the short side of the sample, close to parallel or at a specified position, then pour about 5 ml of sample in front of the Applicator, press both ends of the Applicator with your fingers, and press at 150 Sliding at a constant speed of mm/second, that is, coating into a wet film of required thickness. After use, wash and dry with solvent, and apply oil or Vaseline on the surface.

Packing list：Applicator X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
