MODERNER SZQ-160 Film Applicator Micron Scraper 30/60/90/120μm

SE
Type: Combined quadrilateral fabricator, wet film thickness 30/60/90/120μm, Spreader width 160mm, material: stainless steel.
Certificate
Contact
Details SPEC Con VIDEO
Similar products

Moderner SZQ-160 30/60/90/120 Film ApplicatorSPEC

Moderner SZQ-160 30/60/90/120 Film ApplicatorDetails

Moderner SZQ-160 30/60/90/120 Film ApplicatorPacking list

SKU
NB021898
type
Combined quadrilateral generator
WFT
30 / 60 / 90 / 120µm
Application width
160mm
material
stainless steel
SZQ-160 30/60/90/120
Film Applicator
Type: Combined quadrilateral fabricator, wet film thickness 30/60/90/120μm, Spreader width 160mm, material: stainless steel.

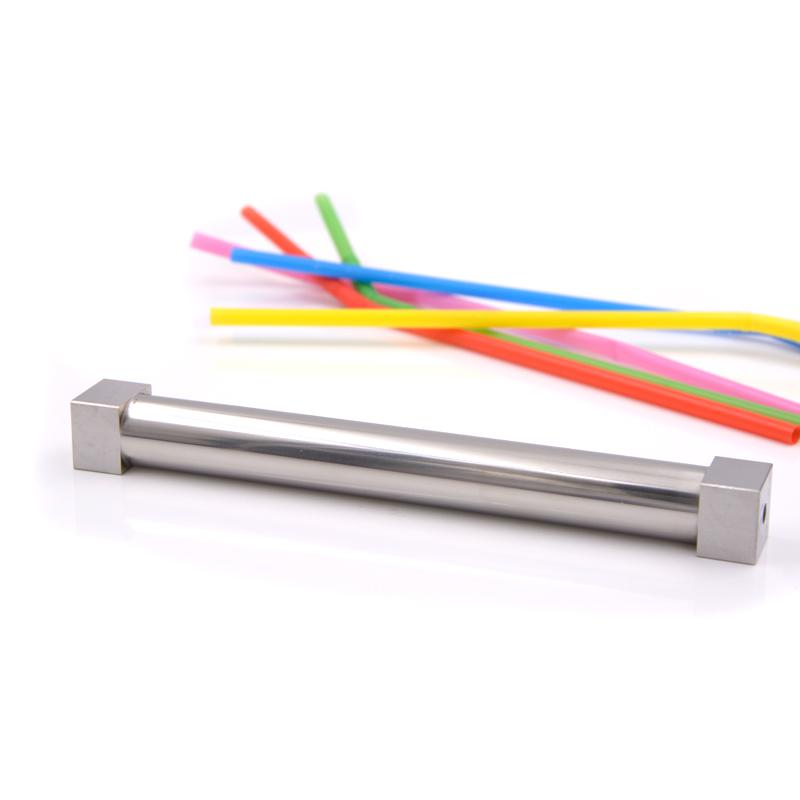

MODERNER SZQ-160 Film Applicator Micron Scraper 30/60/90/120μm Picture

Introduction

MODERNER SZQ-160 combination 30/60/90/120 can be coated with a film thickness of 30/60/90/120μm and a specification of 160x100mm. The combined quadrilateral Applicator is a Wet Film Applicator with a cylindrical shape in the middle and a quadrilateral at both ends, and the number of coating film grooves is 4.

Note: For non-standard customized models, please communicate with customer service for detailed parameters before placing an order.

Applications

MODERNER SZQ-160 combination 30/60/90/120 is used to coat wet film of specified thickness to measure the hiding power, color and luster of the sample or to prepare samples, etc.

Pictures

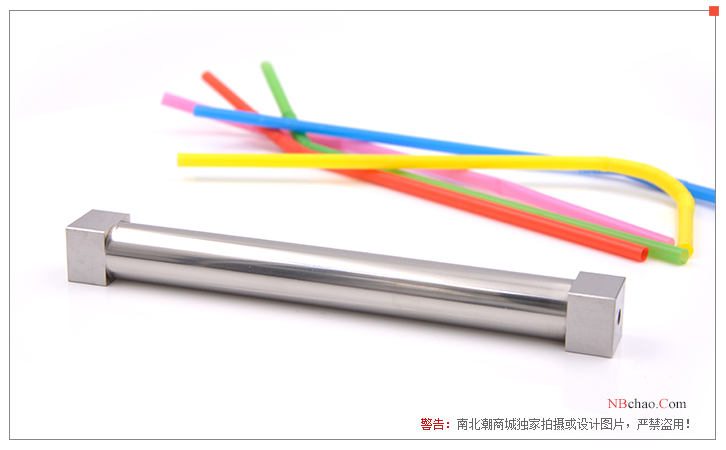

MODERNER SZQ-160 Wet Film Applicator display

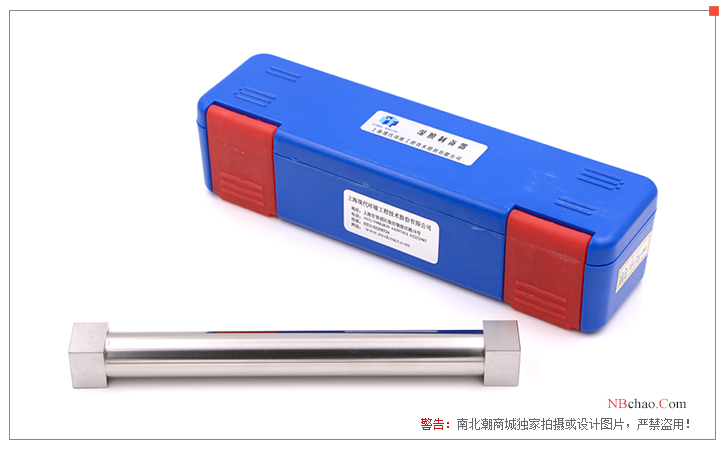

MODERNER SZQ-160 Wet Film Applicator outer packing diagram

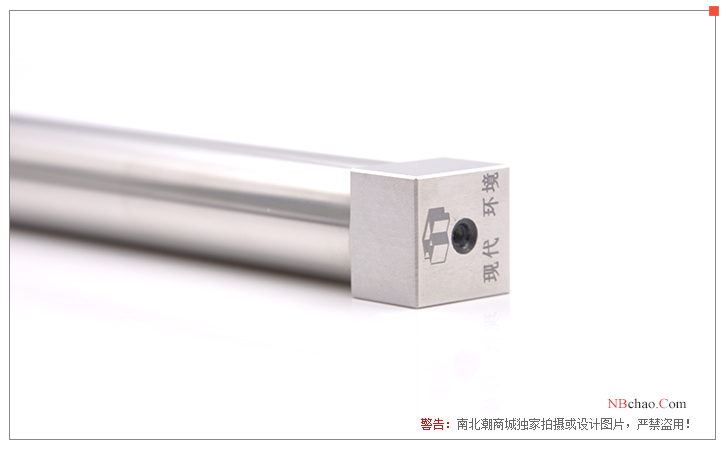

MODERNER SZQ-160 Wet Film Applicator details

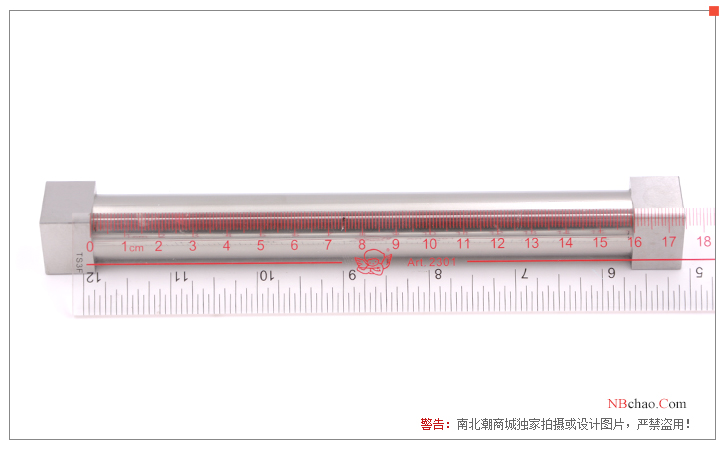

Dimensional drawing of MODERNER SZQ-160 Wet Film Applicator

FAQ
Q4-Sided Film Applicator accuracy +/- 2μm refers to the same plane, the total deviation of 4 microns, or 2 microns?
A Accuracy +/- 2 microns is the overall deviation of 4 microns, that is, on the same plane, a total of 4 microns up and down.
QCan this Film Applicator control the film thickness?
A Yes, the film may be prepared 30um, 60um, 90um and 120um wet film thickness.
QDo you have the Film Applicators mentioned in JB/T7663.2?
A The SZQ-160 30/60/90/120 Film Applicator will do
QWhat is the Spreader width in mm for the modern SZQ-160 Film Applicator?
A Hello, the width of the Spreader is 160mm.
QEmulsion film formation is the preparation of this film applicator?
A Yes!
QSZQ-160 30/60/90/120 Film Applicator can film 30 μm, 60 μm, 90 μm, 120 μm wet film thickness?
A No problem, the Quadrilateral Preparator Film Applicator is used for scraping samples 30/60/90/120μm
Standard
