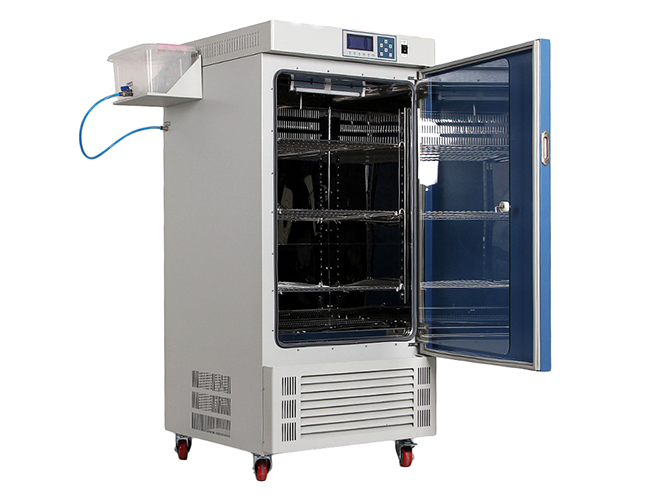

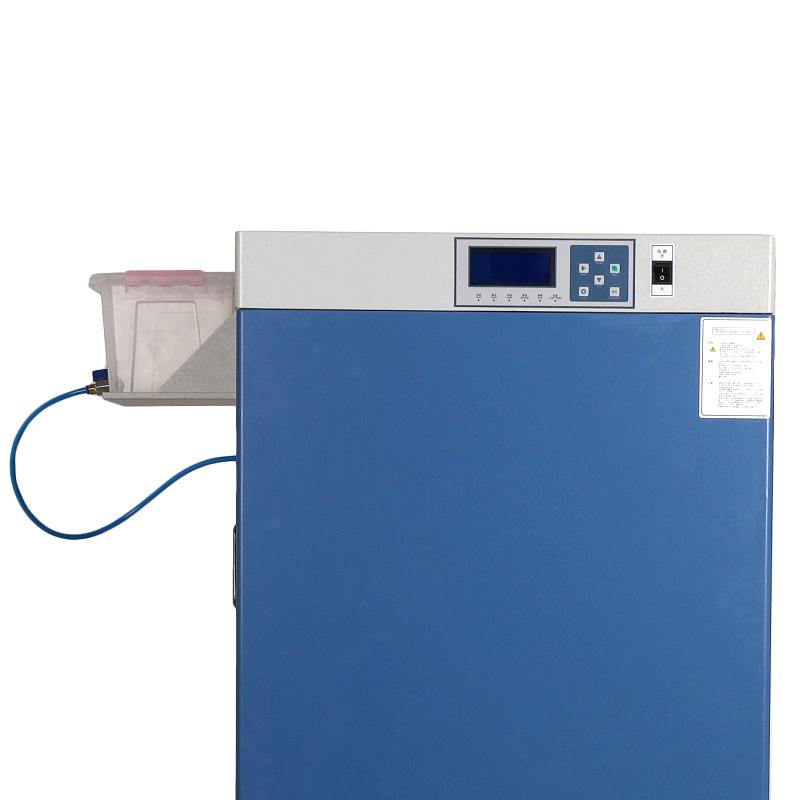

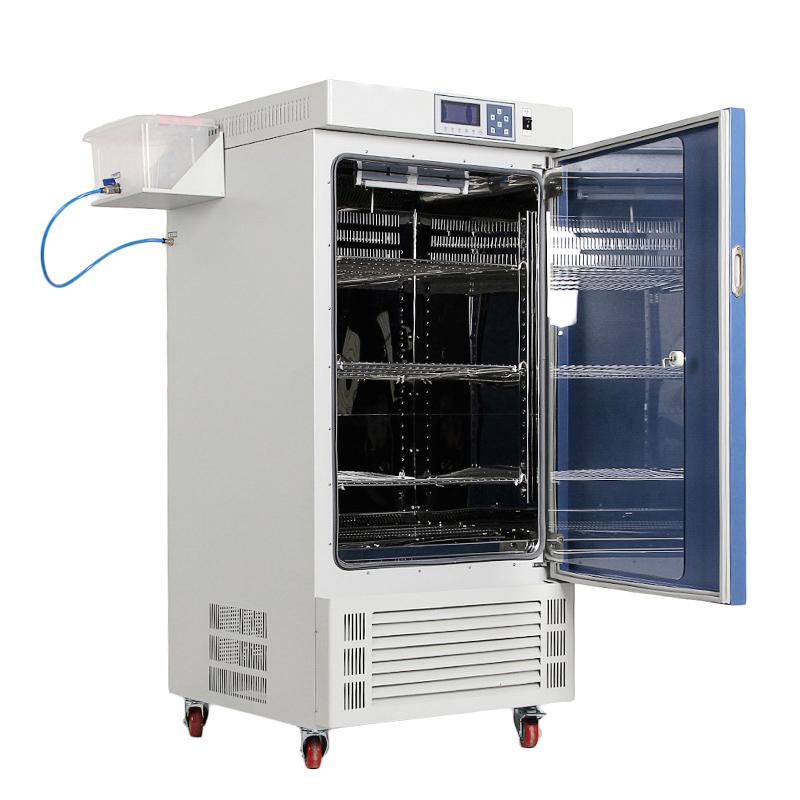

MODERNER HSX-100CH Constant Temperature and Humidity Chamber 10~85 ℃/100L

HSX-100CH

Constant Temperature and Humidity Chamber

Volume 100L, temperature control RT + 10~85 ℃, humidity control 80~95% RH, PID temperature control, double-decked door structure, international brand compressor, programmable, with 2 shelves.

Introduction

The constant temperature and Humidity Chamber has a precise temperature and humidity control system. It provides various environmental simulation conditions for industrial research and biotechnology testing. Therefore, it can be widely used in sterility tests and stability checks in pharmaceuticals, textiles, and food processing. As well as testing of raw material properties, product packaging, and product life of industrial products.

Features

■Humanized design

○Large-screen liquid crystal display, multiple sets of data can be displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (optional)

○Use 134 a, 406 a fluorine-free refrigerants, effective, energy-saving, and make the environment healthier!

○Mirror stainless steel liner is adopted, the semi-circular arc design of the four corners is easy to clean, and the distance between the shelves in the box is adjustable.

○Double-layer door structure is adopted, which has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

○ There is a test hole with a diameter of 25mm/80mm on the left side of the box, which is convenient for experimental operation and temperature measurement. (optional)

○Optional door observation window (except for optional, SC)

■Quality Assurance

○International brand compressors are used, and the self-developed compressor cooling system can effectively prolong the service life of the compressor.

○Using JAKEL pipe flow circulation fan, coupled with a uniquely designed air duct structure, creates a good air circulation system and effectively ensures the temperature uniformity in the box.

○Adopt the humidity sensor of the international famous brand, and the self-designed built-in Water Tank electric heating tube humidification system can effectively guarantee the humidity deviation.

○PID control method, accurate temperature control and humidity control with little fluctuation, menu-style operation page, easy to understand and easy to operate.

○The program has 99 cycles, each cycle is divided into 30 segments, and each cycle is 99 hours and 99 minutes, which can meet almost all complicated experimental procedures.

◆Independent temperature limit alarm system (optional)

○When the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will prompt the operator. Ensure the safe operation of the experiment without accidents.

◆Convenient data processing (optional)

○It has a USB or RS485 interface, which can be connected to a printer or a computer, and can record the change of temperature parameters. (optional)

Packing list：Host X1, shelf X2, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
