Specifications
| detection Voltage | 9V/90V |
| Voltage Accuracy | 9V：±2%；90V：±5% |
| Sensitivity | 100kΩ |
| Thickness range | 0~500μm |
| Headphone Connector type | 3.5Mm interface |
| Headphone output power | Maximum 150 mW |
| Headphone Output Impedance | Approx. 75Ω |
| Host size | 190*40*45mm |
| Instrument Weight | 460G; with sponge 600g |
| Display | Graphic color display, 1 inch, 96 x 64 pixels |
| Measurement speed | continuous |
| Environmental temperature | -10~50℃ |
| Environmental humidity | 0~85%RH |
| Operating Time | 130h |
| meet the standard | ISO8289, ISO 14654, ASTM5162, NACE RP0188, NACE SP0188, ASTM G62, BS 7793-2, ASTM D 5162-A, JIS K 6766, TM0384 |
Packing list

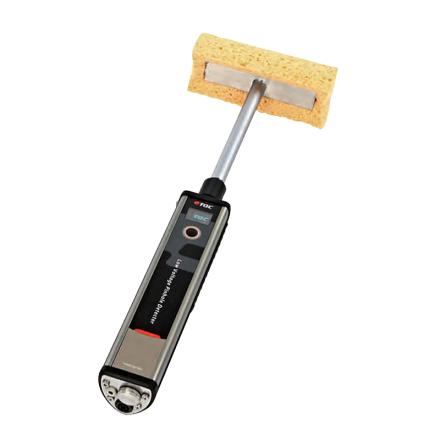

Pinholing detector * 1, sponge rod * 1, ground cable with clip * 1, calibrated certificate * 1, user manual * 1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/22008/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
