MODERNER GFX-9055A Forced Air Drying Oven 50L

SE
RT + 10~300 ℃, Temperature fluctuation +/- 1 ℃, Temperature resolution 0.1 ℃, Volume 50L, Interior size 420 * 350 * 390mm, Time fixed range 1~ 9999min, Power Supply AC220V 50HZ, Input power 850W.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

Moderner GFX-9055A Forced Air Drying OvenSPEC

Moderner GFX-9055A Forced Air Drying OvenDetails

Moderner GFX-9055A Forced Air Drying OvenPacking list

SKU
NB022075
Temperature range
RT+10~300°C
Temperature fluctuation
±1℃
temperature resolution
0.1℃
Volume
50L
Interior size
420*350*390mm
Timer
1~9999min
Power
AC220V 50HZ
Input power
850W
Environment temperature
20℃
Environment humidity
Environment humidity 50% RH
Overall Dimensions
705*610*530mm
GFX-9055A
Forced Air Drying Oven
RT + 10~300 ℃, Temperature fluctuation +/- 1 ℃, Temperature resolution 0.1 ℃, Volume 50L, Interior size 420 * 350 * 390mm, Time fixed range 1~ 9999min, Power Supply AC220V 50HZ, Input power 850W.

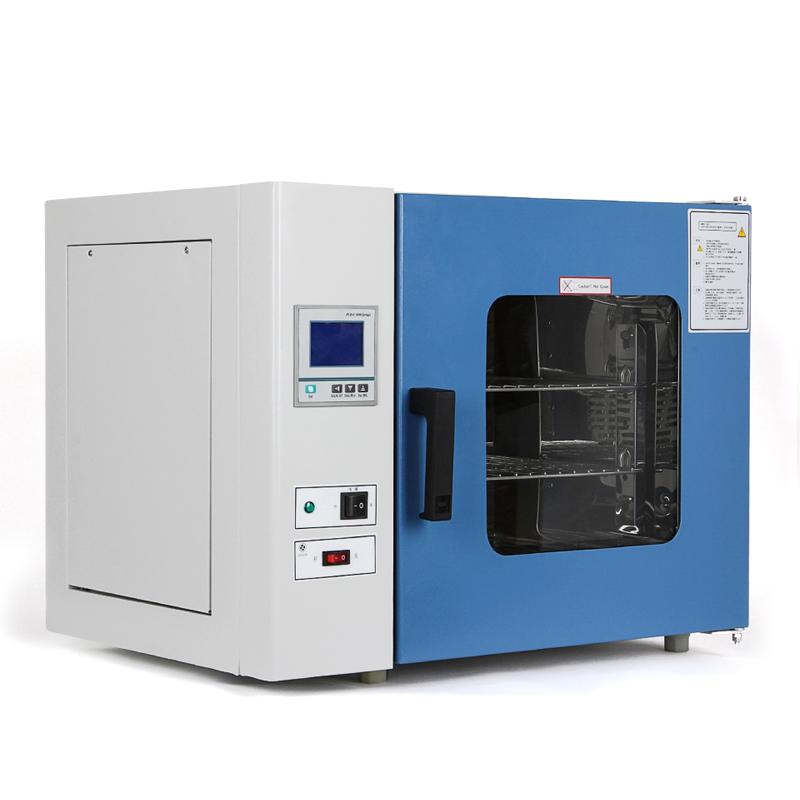

MODERNER GFX-9055A Forced Air Drying Oven 50L Picture

overview

For industrial and mining enterprises, laboratories, scientific research units, etc. for drying, baking, melting wax, and sterilization.

Features

■Large-screen liquid crystal display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (optional)

■Adopt the fan speed control method, which improves the temperature uniformity of the working room.

■The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

■It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

■The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

■The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

■Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

■With RS485 interface, it can be connected with Recorder and computer, and can record the change of temperature parameters. (optional)

Optional

Intelligent program controller

Large screen LCD monitor

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

Series

modelTemperature control rangeinput powervolume
GFX-9013ART+10~28055010
GFX-9023ART+10~28085020
GFX-9053ART+10~280110050
GFX-9073ART+10~280155070
GFX-9123ART+10~2802050136
GFX-9203ART+10~2802500220
GFX-9030ART+10~25085030
GFX-9050ART+10~250110050
GFX-9070ART+10~250155080
GFX-9140ART+10~2502050136
GFX-9240ART+10~2502500220
GFX-9035ART+10~30085020
GFX-9055ART+10~300110050
GFX-9075ART+10~300155080
GFX-9145ART+10~3002050136
GFX-9245ART+10~3002500220
Unit: °C, W, L
Other parameters
VoltageAC220V 50HZ
Constant temperature fluctuation±1℃
temperature resolution0.1°C
Carrier2pcs (standard configuration)
Timer Range1-9999min
*Performance parameters are tested under no-load conditions, without strong magnetism and vibration, at an ambient temperature of 20°C and an ambient humidity of 50%RH


FAQ
QDoes this drying oven comply with GB/T1714 standard?
A The blast drying oven is suitable for GB/T1714, please consult customer service for detailed application definition
QTemperature control at 215 ℃, size 50L up and down drying oven is recommended
A The machine GFX-9055A blast drying oven Temperature range 10~ 300 ℃, the maximum can put 50L, properly.
