Shanghai PUSHEN PS 2653 HGB cross-cut board 0~250μm

PUSHEN HGB cross-cut plates are mainly used for film adhesion testing. Coating thicknesses can be tested from 0 to 250 μm. HGB cross-cut plates have four different scratch spacings and a scratch length of 35mm.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

Pushen PS 2653 HGB cross-cut boardSPEC

Pushen PS 2653 HGB cross-cut boardDetails

Pushen PS 2653 HGB cross-cut boardPacking list

SKU
NB022124
Tooth spacing
1mm、1.5mm、2mm、3mm
Applicable film thickness environment
0~250μm
Instrument material
stainless steel
Application standard
GB/T 9286
Scratch length
35mm
Number of teeth
11 teeth
PS 2653
HGB cross-cut board

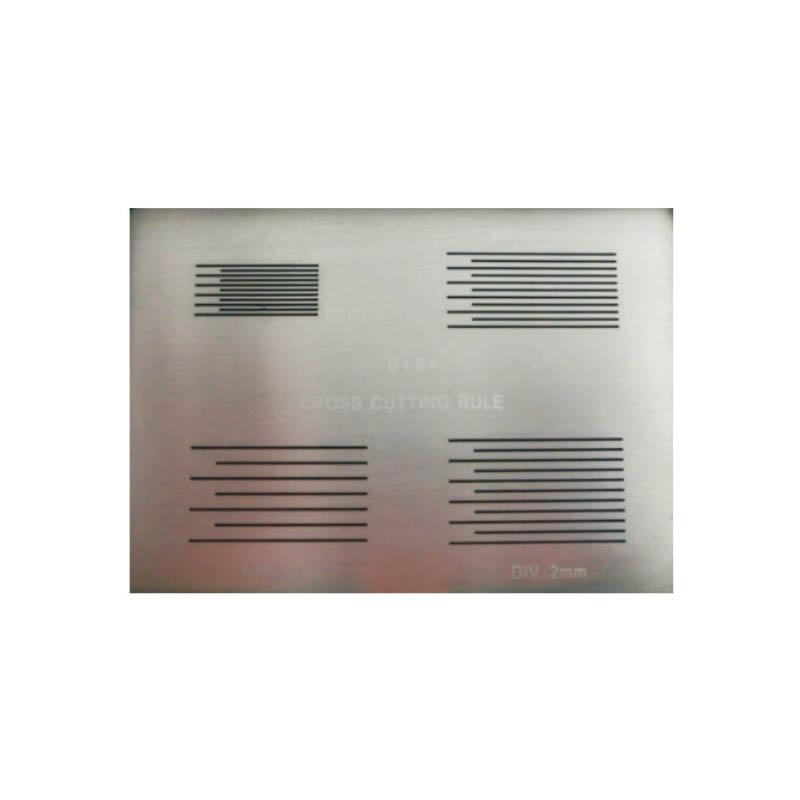

Shanghai PUSHEN PS 2653 HGB cross-cut board 0~250μm Picture

Introduction

Adhesion grating has the characteristics of convenience and simplicity. It is suitable for measuring the adhesion fastness of the paint film on the surface of wood, furniture and other wooden parts with a thickness of less than 250 microns to the substrate or the fastness of the base coat combined with each other. It is used to quickly measure the adhesion of many different kinds of coatings.

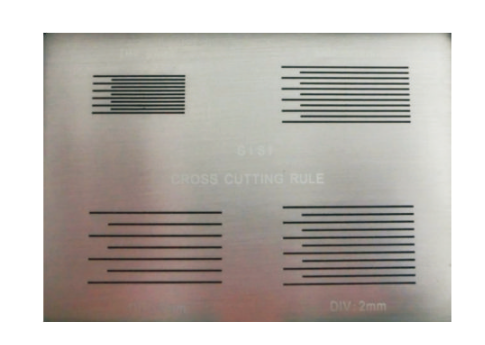

Pushen HGB scratching grid display map

Meets standards

GB/T 9286

FAQ
QDo you have the HGB cross-cut board involved in GB/T4893.4?
A The PS 2653HGB cross-cut board will do.
