AISRY AISRY LX-5611 DIN wear resistance testing machine

LX-5611 DIN abrasion testing machine is suitable for abrasion testing of resilience materials, rubber, tires, conveyor belts, conveyor belts, soles, soft synthetic leather, leather and other materials, in line with DIN-53516, ISO/DIS-4649, GB-9867
Model：
Certificate
Contact
Details SPEC CAT
Similar products

AISRY LX-5611 DIN wear resistance testing machineSPEC

AISRY LX-5611 DIN wear resistance testing machineDetails

AISRY LX-5611 DIN wear resistance testing machinePacking list

SKU
NB022126
Rotation speed
40rpm
Power supply Voltage
220V 50HZ
Machine size
95*66*31cm
Machine Weight
Approx. 50kg
rolling diameter
150mm
Clamp lateral displacement
4.2Mm/roll per turn
Load
2.5N,5N,10N
LX-5611
DIN wear resistance testing machine

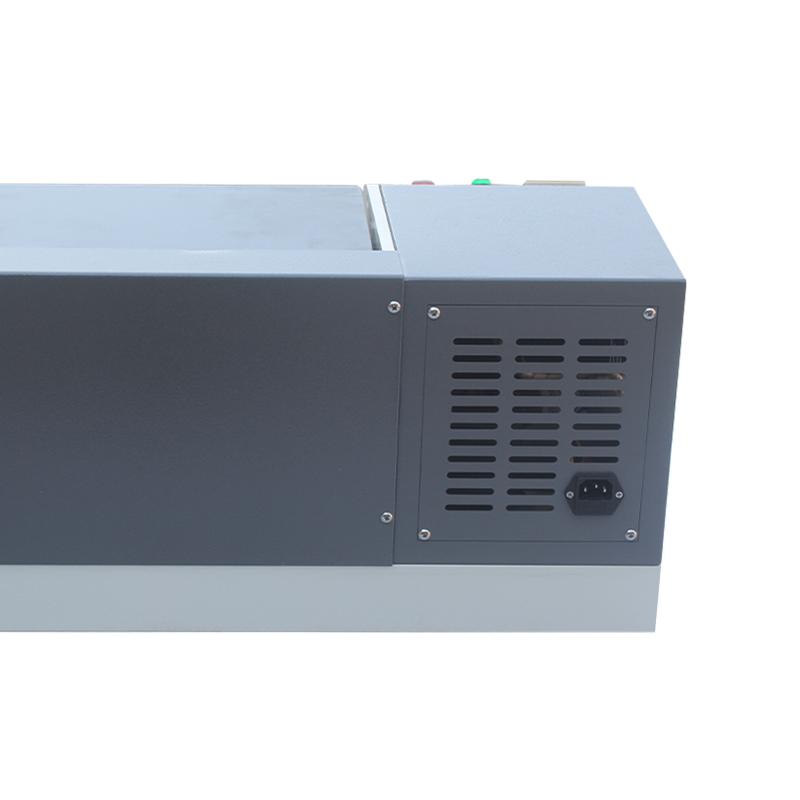

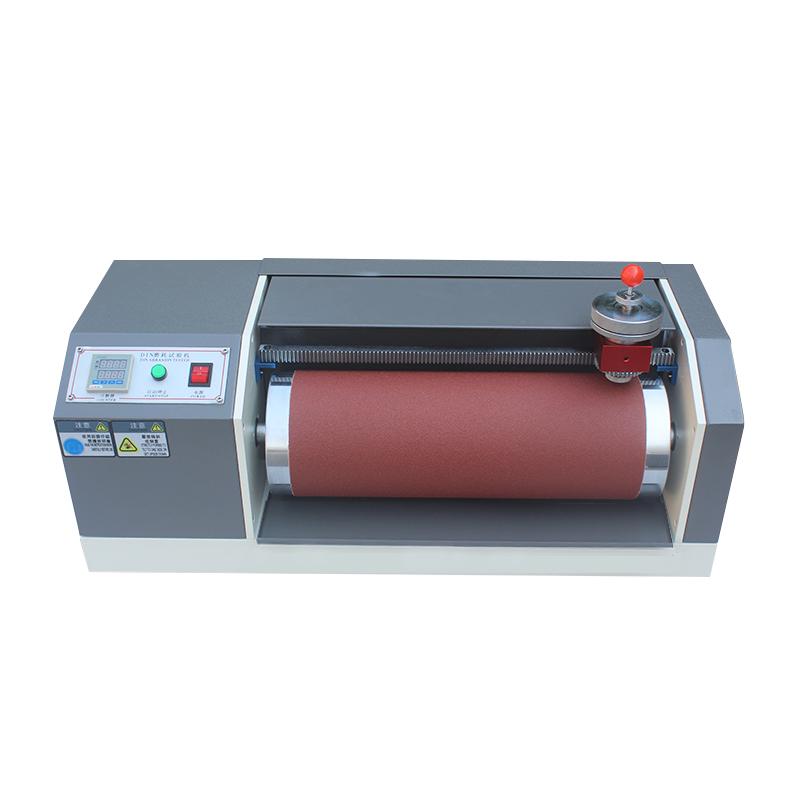

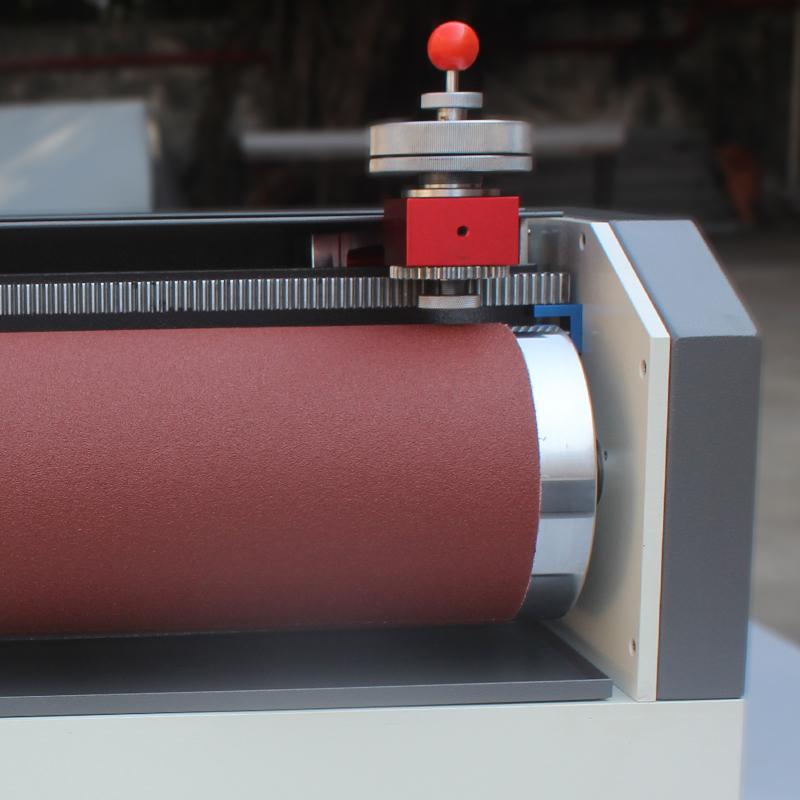

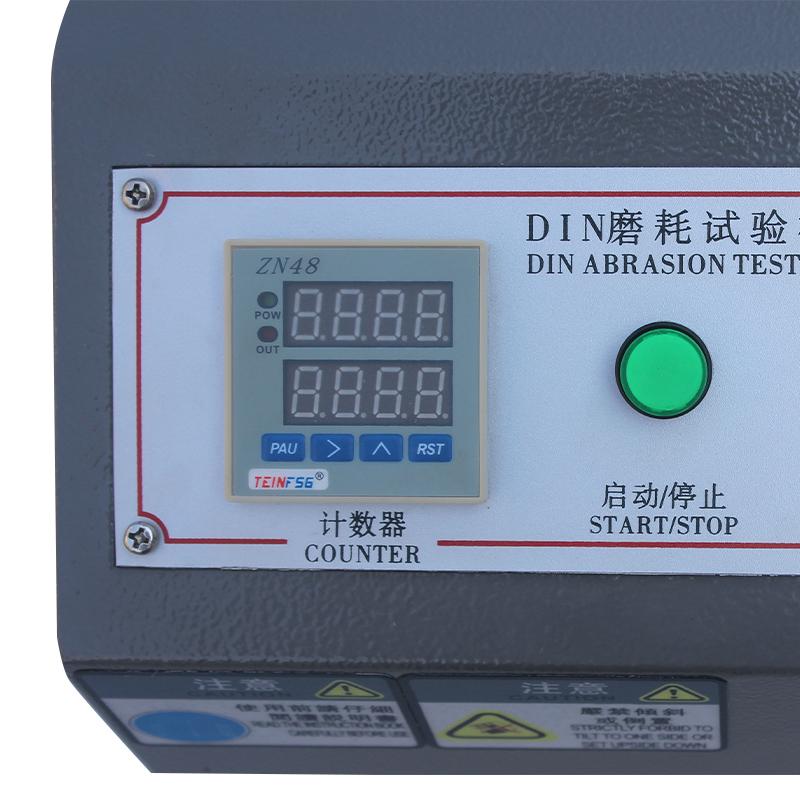

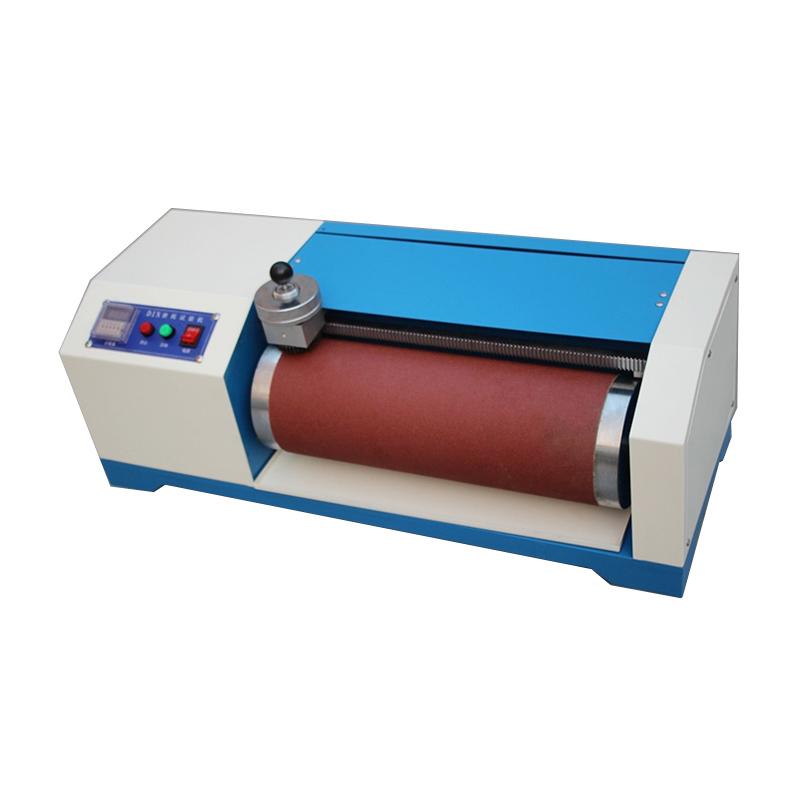

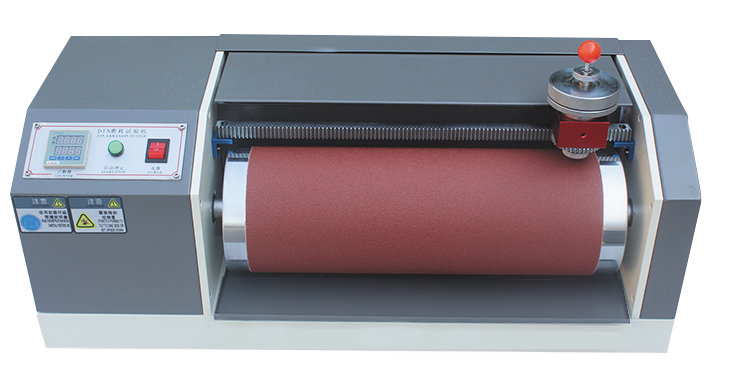

AISRY AISRY LX-5611 DIN wear resistance testing machine Picture

Introduction

This machine conforms to DIN-53516, ISO/DIS-4649, GB-9867 This machine is suitable for abrasion test of elastic materials, rubber, tires, conveyor belts, conveyor belts, shoe soles, soft synthetic leather, leather and other materials, and has the characteristics of effectiveness, good reproducibility and easy operation. Roller diameter φ150mm Roller length 460 mm Roller speed 40rpm Abrasion stroke 40 mm (20 mm) Abrasion speed 0.32 m/sec Inclination angle 3o Specimen diameter φ16 mm thickness 6~15 mm Test load 5N,1

DIN abrasion Tester

This machine is suitable for elastic materials, rubber, tires, conveyor belts, transmission belts, soles, soft synthetic leather, leather... The abrasion test of other materials has the characteristics of efficiency, good reproducibility and easy operation.
