LICHEN NDJ-8S Digital Viscometer 1~ 2 × 1000000mPa.s

Viscosity is 1~ 2 × 1000000mPa.s, the rotor is made of imported 304 stainless steel, the inclined rack is raised and lowered, and the measurement accuracy is ± 2%.
Model：
Contact
Details SPEC
Similar products

LICHEN NDJ-8S Digital ViscometerSPEC

LICHEN NDJ-8S Digital ViscometerDetails

LICHEN NDJ-8S Digital ViscometerPacking list

SKU
NB022240
Display
digital display
Measuring range
1~2×1000000mPa·s
Rotor Specifications
1 #, 2 #, 3 #, 4 #(0 #optional)
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Measurement Accuracy
±2%
Power
AC 220V ± 10, 50Hz ± 10%
Allowable Operating Temperature
5~35℃
Dimensions
370*325*280mm
Weight
6.8kg
Operating language
Chinese/English
Read stable cursor
When the vertical bar and square cursor are full, the display reading is basically stable
Temperature measurement device
without
Allowable Relative Humidity
≤80%
NDJ-8S
Digital Viscometer
Viscosity is 1~ 2 × 1000000mPa.s, the rotor is made of imported 304 stainless steel, the inclined rack is raised and lowered, and the measurement accuracy is ± 2%.

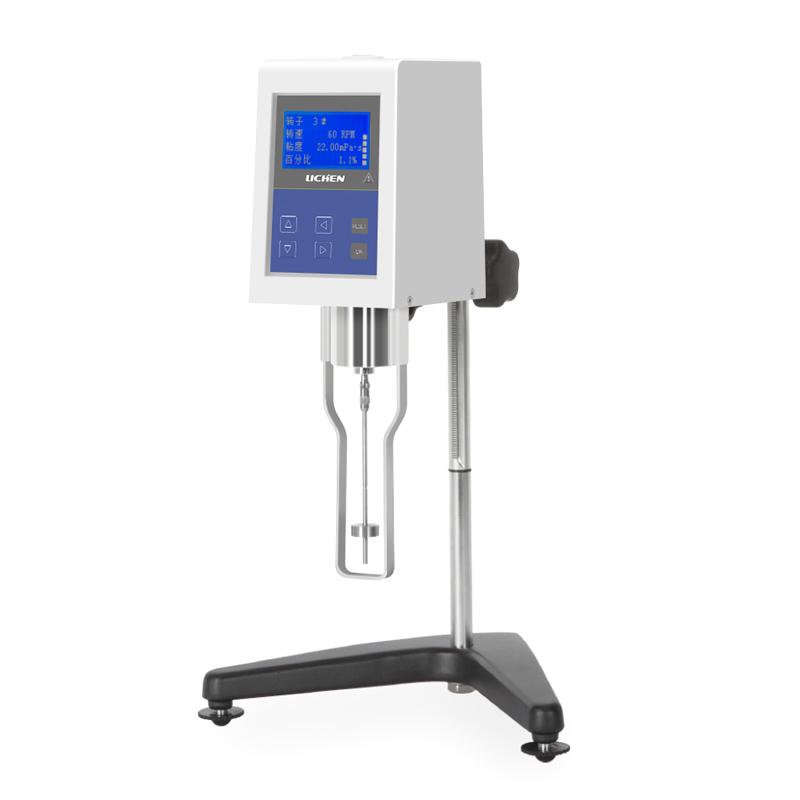

LICHEN NDJ-8S Digital Viscometer 1~ 2 × 1000000mPa.s Picture

Product Description

NDJ-5S/8S/9S digital display viscometer is an upgraded product of our company's Rotational Viscometer. This instrument adopts professional mechanical design technology, manufacturing process and microcomputer control technology, the data acquisition is correct, the display adopts blue backlight, high-brightness LCD display, and the data display is clear. This instrument has the characteristics of high measurement sensitivity, reliable test results, easy to use and operation, beautiful appearance, etc., and is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids, and can be widely used in grease, paint, plastics, food, coatings, glues, adhesive meters, resins, chemical raw materials and other products.

Features

◇ The lifting system adopts helical rack/helical gear mode

◇ Universal joints are added at the interface connecting the rotor

◇ The gears are highly wear-resistant, high-performance engineering plastics

◇ The rotor is made of imported good 304 stainless steel

◇ Digital blue backlit LCD screen

◇ Microcomputer control technology, correct data acquisition

Product parameters

ModelMeasuring rangerotate speedTemperature measuring device
NDJ-5S1~1x105mPa.s6、12、30、60rpmnot
NDJ-9SYes
NDJ-8S1~2×106mPa.s0.3、0.6、1.5、3、6、12、30、60rpmYes
Other parameters
Rotor specificationsRotor 1-4 (rotor 0 optional)
AutomaticAutomatically select the appropriate rotor number and speed
Select the operation interfaceChinese/English
Measurement accuracy±2% (Newtonian liquid)
FAQ
QIs the range 100-1000000mmpa.s?
A 1-2000000
QDo you have the digital Viscometer required by the GB/T12004.4 standard?
A This NDJ-8S digital display Viscometer will do.
QHow to combine the rotor and speed of this NDJ-8S digital display Viscometer?
A Hello, this Lichen digital display Viscometer can automatically select the appropriate rotor number and speed.
QHow many kinds of Rotor velocity can be selected for Lichen NDJ-8S digital viscosity meter?
A Hello, the NDJ-8S viscosity meter has eight different speeds of 0.3, 0.6, 1.5, 3, 6, 12, 30, and 60rpm.
