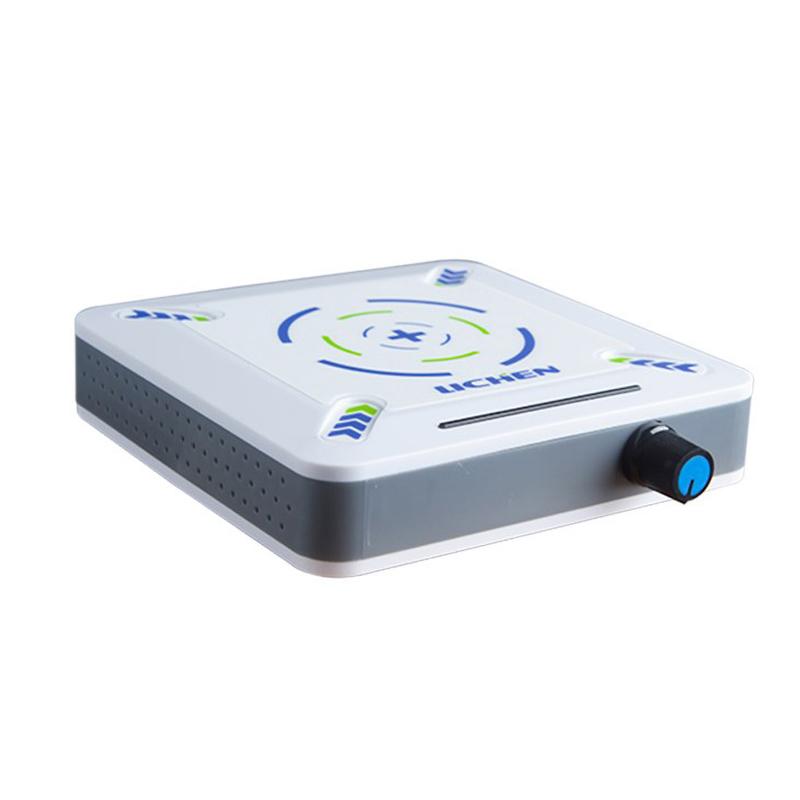

LC-DMS-H Digital magnetic heating Stirrer 2L
LC-DMS-H
LICHEN LC-DMS-H Magnetic StirrerSPEC
LICHEN LC-DMS-H Magnetic StirrerDetails
LICHEN LC-DMS-H Magnetic StirrerPacking list
- SKU
- NB022246
- station number
- 1 station
- Max. Capacity of stirring
- 2L
- Stirring speed
- 200~1500rpm
- Temperature range
- RT+~380℃
- Temperature control Accuracy
- 0.1℃
- Heating power
- 500w
- Input Power
- 3w
- Mixer size
- 30mm
- Pan size
- Disc or square plate 135 * 135mm, 155 * 155mm
- Panel Material
- Nano ceramic surface
- Dimensions
- 280*180*110mm
- Machine Weight
- 4kg
- Ambient Temperature
- 5-40℃
- Allowable Relative Humidity
- 80%
- Heating speed
- 6 K/min
Product description
Magnetic stirrers are laboratory instruments used for liquid mixing. They are mainly used to stir or simultaneously heat and stir low-viscosity liquids or solid-liquid mixtures. The basic principle is to use the magnetic field to push the magnetic stirrer placed in the container to rotate in a circle, thereby achieving the purpose of stirring the liquid. Cooperating with the heating temperature control system, the sample temperature can be heated and controlled according to specific experimental requirements, maintaining the temperature conditions required for the experimental conditions, and ensuring that the liquid mixing meets the experimental requirements.
Features
â The new mixer has the latest mixing technology and is suitable for unmanned operation
â The stirrer that can automatically identify escapes and is automatically recaptured
â Nano ceramic disc, round disc, square disc, size optional
â LCD display with backlight for easy reading
â Adopt fuzzy logic control and microprocessing foundation to ensure control accuracy
â Multiple operating modes ensure that the stirring function is not changed due to external factors
â With safety temperature control, unmanned operation is possible
â External PT100 temperature sensor can be used
â After the experiment, the thermal warning screen displays the residual temperature of the Heating Plate
â Connect to PC through RS232 interface
â Equipped with two independent safety circuits, independent temperature sensor detection, and the furnace plate temperature can be set.
Series selection
| model | LC-DMS-H | LC-DMS-S | LC-TN-1/2 |
| category | Digital magnetic heating stirrer | Digital magnetic stirrer | mini blender |
| Voltage (VAC) | 110/220 | 110/220 | 110/220 |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Power (W) | 500 | 5 | 5 |
| Number of stirring points | 1 | 1 | 1 |
| Maximum mixing volume (L) | 2 | 2 | 1 |
| Maximum length of stirrer (mm) | 30 | 30 | 30 |
| Motor type | Brushless DC motor | ||
| Motor input power (W) | 3 | 3 | 3 |
| Speed âârange(rpm) | 200-1500 | 200-1500 | 0-2500 |
| Speed ââdisplay | LCD | LCD | scale |
| Speed ââdisplay accuracy (mm) | 1 | 1 | - |
| Work plate material | Nano ceramic surface | Nano ceramic surface | Polyester film |
| Overall dimensions of working plate (mm) | Round or square disc 135mm*135mm, 155mm*155mm | 85mm*85mm | |
| Working plate shape | Square plate/round plate optional | Square plate/round plate optional | square plate |
| Heating power (W) | 500 | - | - |
| Heating speed (K/min) | 6 | - | - |
| Heating temperature range | Room temperature-380℃ | - | - |
| temperature display | LCD | - | - |
| Temperature display accuracy | 0.1℃ | - | - |
| Safe temperature range of work plate | 100-380℃ | - | - |
| External temperature sensor | PT100(optional)- | - | - |
| Appearance size (mm) | 280*180*110 | 280*180*110 | 120*120*30 |
| Weight (kg) | 4 | 4 | 0.15 |
| allowable ambient temperature | 5-40℃ | 5-40℃ | 5-40℃ |
| allowed Relative Humidity | 80% | 80% | 80% |
| DIN EN 60529 protection methods | IP 42 | IP 42 | IP 42 |
| RS232 interface | - | - | - |
