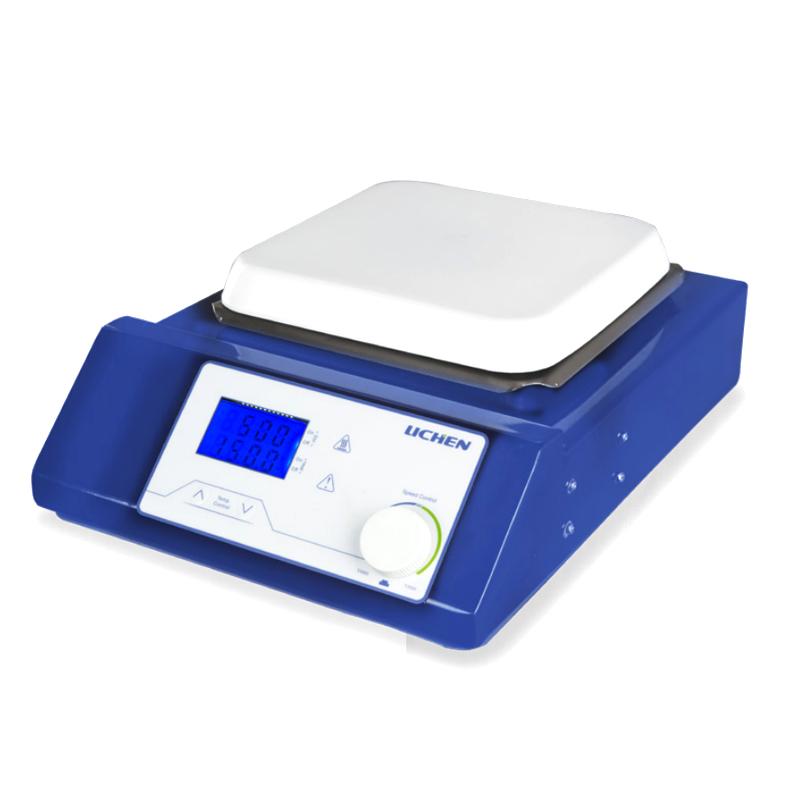

LICHEN LC-MAG-HS18 Digital Magnetic Heating Stir
LC-MAG-HS18
LICHEN LC-MAG-HS18 Digital Magnetic Heating StirSPEC
LICHEN LC-MAG-HS18 Digital Magnetic Heating StirDetails
LICHEN LC-MAG-HS18 Digital Magnetic Heating StirPacking list
- SKU
- NB022262
- station number
- 1 station
- Max. Capacity of stirring
- 20L
- Stirring speed
- 100~1600rpm
- Temperature range
- RT+~500°C
- Heating power
- 650W
- Input power
- 5w
- Stirringrod size
- 80mm
- Pan size
- 180*180mm
- Pan material
- Pottery and porcelain
- Dimensions
- 390*300*230mm
- Total Weight
- 12kg
- Allowable environment temperature
- 5-40℃
- Relative Humidity
- 80%
- Heating speed
- 6 K/min
Product Description
A magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used to stir or simultaneously heat and stir a liquid or solid-liquid mixture with low viscosity. Its basic principle is to use the principle of same-sex repulsion and opposite-sex attraction of magnetic field, and use the magnetic field to promote the magnetic stir bar placed in the container to rotate in a circle, so as to achieve the purpose of stirring the liquid. With the heating temperature control system, the sample temperature can be heated and controlled according to the specific experimental requirements, and the temperature conditions required for the experimental conditions can be maintained to ensure that the liquid mixing meets the experimental requirements.
Features
◇ The new agitator has the latest mixing technology and is suitable for unmanned operation
◇ The stirring block can be automatically judged to escape and automatically recaptured
◇ Nano ceramic disk, disc, square disc, size optional
◇ LCD display with backlight for easy reading
◇ Fuzzy logic control and microprocessing are used to ensure the control accuracy
◇ Multiple operation modes to ensure that the stirring function is not changed due to external factors
◇ With safety temperature control, unmanned operation can be realized
◇ External PT100 temperature sensor can be used
◇ After the experiment, the thermal warning screen displays the residual temperature of the Heating Plate
◇ Connect with PC via RS232 interface
◇ With two independent safety loops, independent temperature sensor detection, the temperature of the hob can be set.
Series selection
| Model | LC-MAG-HS18 | LC-MAG-MS18 |
| category | Digital magnetic heating stirrer | Digital magnetic stirrer |
| Voltage (VAC) | 110/220 | 110/220 |
| Frequency (Hz) | 50/60 | 50/60 |
| Power(W) | 650 | 20 |
| Number of mixing points | 1 | 1 |
| Maximum stirring capacity (L) | 20 | 20 |
| Maximum length of stir bar(mm) | 80 | 80 |
| Motor type | ||
| Motor input power (W) | 18 | 18 |
| Speed range (rpm) | 100-1600 | 100-1600 |
| Rotational speed display | LCD | LCD |
| Speed display accuracy (mm) | 1 | 1 |
| Work Tray Material | Nano ceramic surface | Nano ceramic surface |
| Working Disc Dimensions(mm) | 180mm*180mm | 180mm*180mm |
| Shape of the work plate | Square plate | Square plate |
| Heating power (W) | 500 | - |
| Heating speed(K/min) | 6 | - |
| Heating temperature range | Room temperature -500 °C | - |
| Temperature display | LCD | - |
| Temperature display accuracy | - | - |
| The safe temperature range of the working plate | 100-500℃ | - |
| External temperature sensor | PT100 | - |
| Appearance size (mm) | 390*300*230 | 390*300*230 |
| Weight (kg) | 12 | 12 |
| Allowable ambient temperature | 5-40℃ | 5-40℃ |
| Relative Humidity is allowed | 80% | 80% |
| DIN EN 60529 protection method | IP 42 | IP 42 |
| RS232 interface | - | - |
