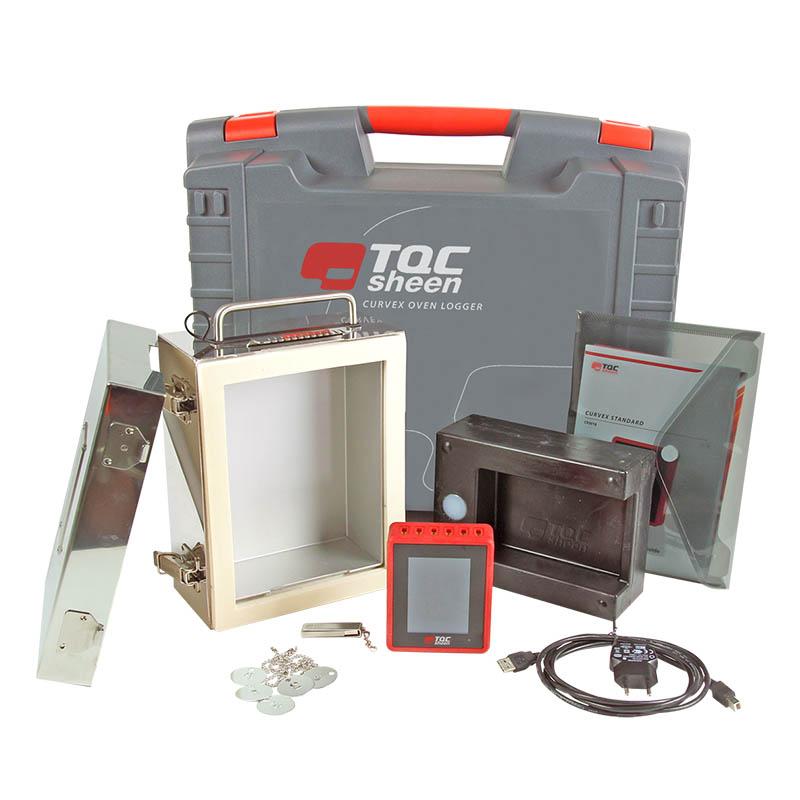

TQC CX3020 CURVEX 3 Furnace temperature tracker standard set 6 channels 1200 ℃
SE
CX3020
TQC sheen CX3020 Furnace temperature trackerSPEC
TQC sheen CX3020 Furnace temperature trackerDetails
TQC sheen CX3020 Furnace temperature trackerPacking list
- SKU
- NB022264

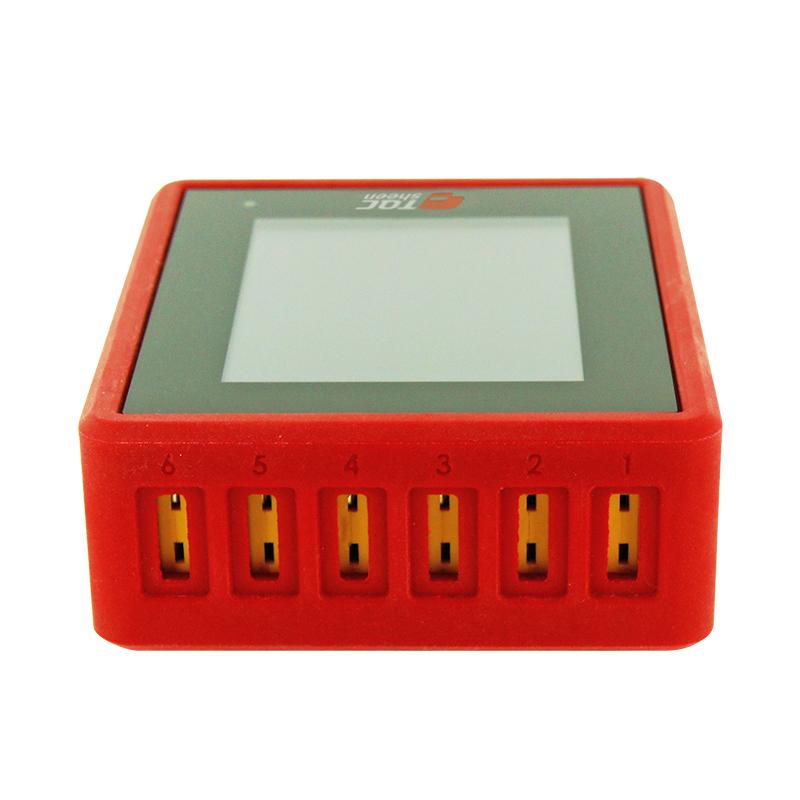

- number of channels
- 6
- Probe type
- Thermocouple K
- Temperature Measurement Range
- 0~1200℃
- Temperature measurement Accuracy
- +/- 0.5 ℃ (standard)
- Sampling interval
- 1~3600s
- Resolution
- 0.1℃
- Storage Capacity
- Can store 10 groups of 25,000 total, or 250,000 readings per group
- Recorder size
- 108x90x35mm
- Recorder Weight
- 425g
- Power supply Voltage
- Rechargeable battery

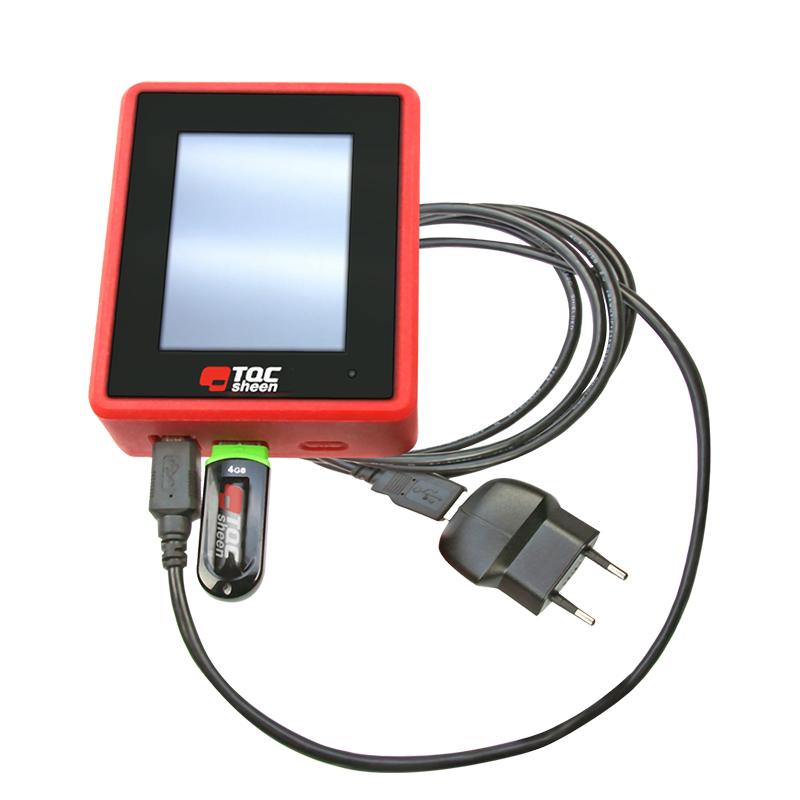

- Connectivity
- USB
- language
- English, French, Spanish, Italian, German, Thai, Japanese, Chinese, Russian
- Display
- 3.5 inch 240x320px 262K color TFT touch LCD screen
- Battery life
- 4 hours of continuous use
Introduction

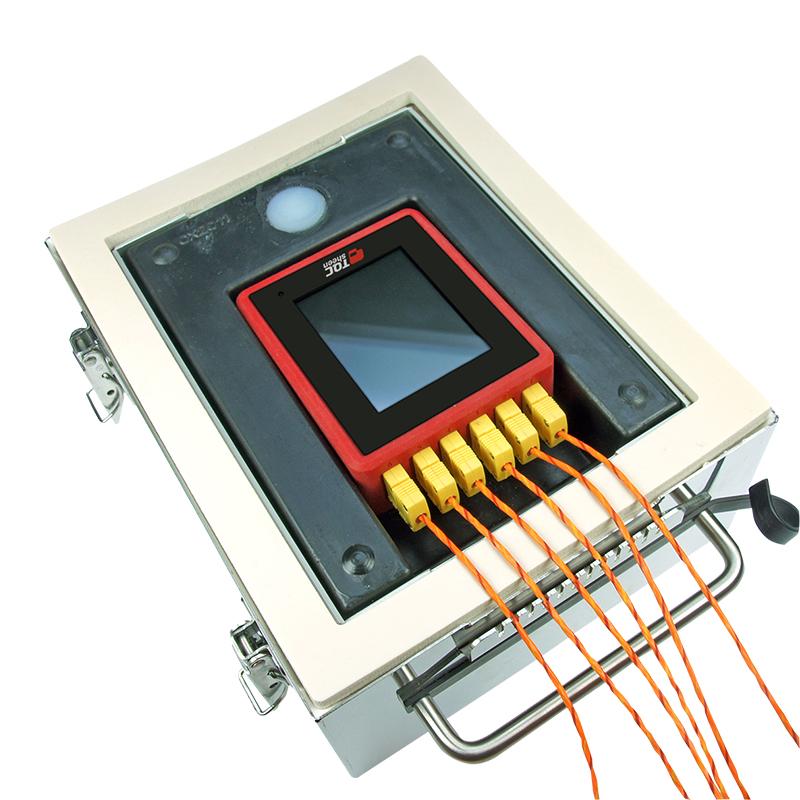

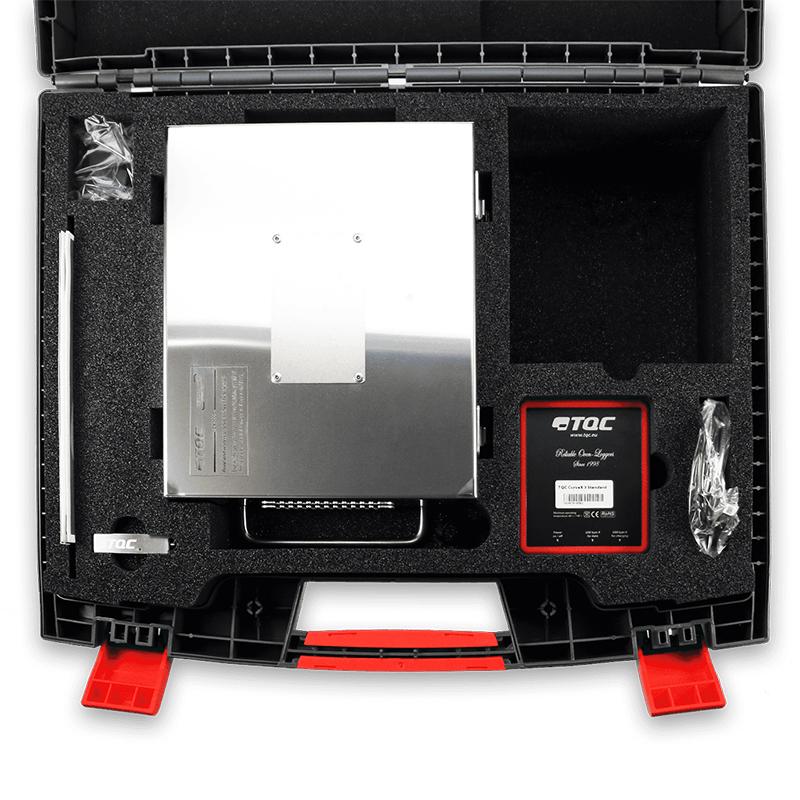

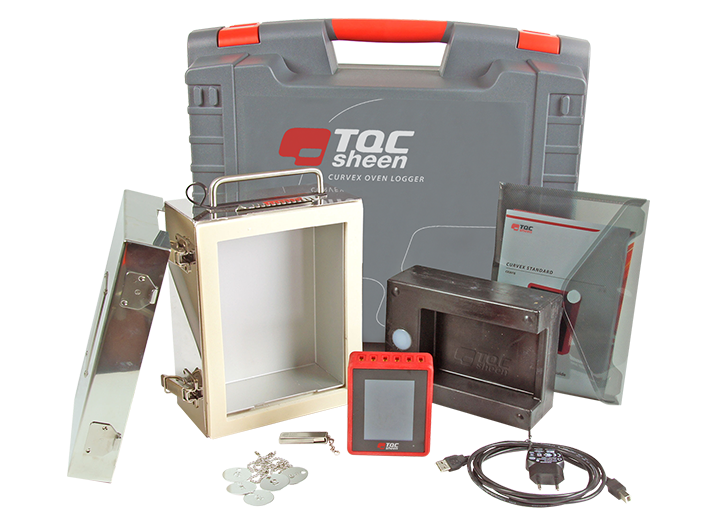

Use the CurveX 3 Standard Oven Recorder Kit to start the analysis of industrial powder-coated ovens. It contains all the required items, just add the required magnetic or clip-on probe, and the KIT of the oven Recorder is complete.
At the heart of KIT is the CurveX 3 Standard Oven Data Logger, which provides easy-to-use, high-quality temperature data logging for paint curing ovens. Measurements, analysis levels, and reporting options are fully customizable, giving you customized information about the quality of your curing process. The data logger is equipped with a large, full-color touchscreen for easy menu-driven operation and a quick display of measurement results. The Recorder has 6 channels and a total storage capacity of 250,000 measuring points.
TQC's Satisfactory Completion Analysis Data Analysis Software allows you to analyze the recorded data and create detailed reports. These professional features and a wide range of display and printing options make the CurveX 3 Standard the most flexible temperature data logging solution, ideal for field use and laboratory conditions.
Ideal for Industrial Oven and Laboratory Oven temperature analysis. Mandatory testing by Qualicoat, QIB and GSB accredited laboratories.
Features
• Easy to use

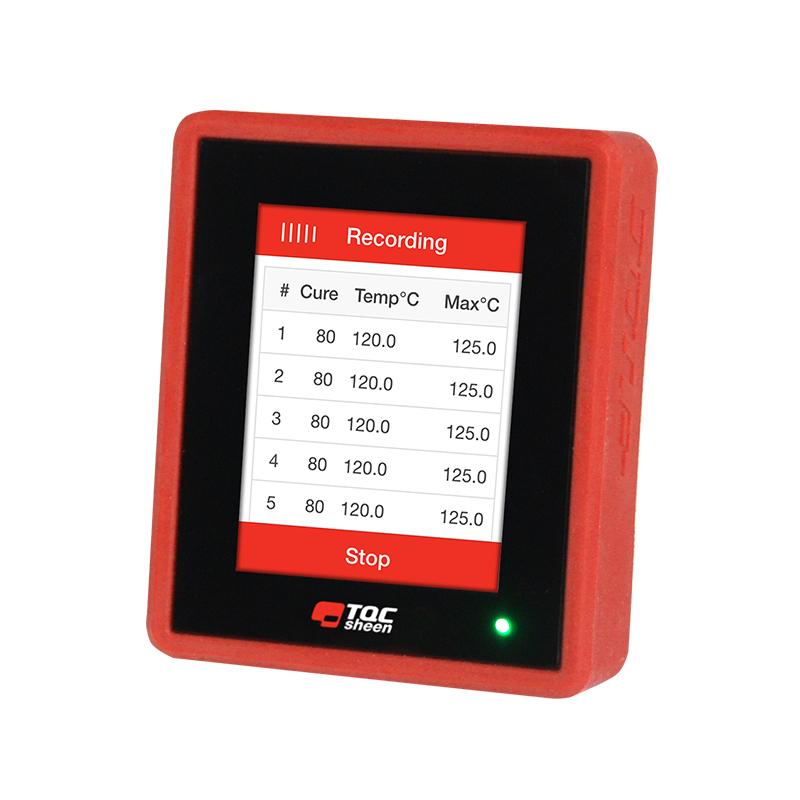

• Large full-color touch screen
• Menu-driven operation
• High-quality temperature data recording
• Fully customizable measurements, analysis levels, and reporting options
Model accessories
| Model | Name description |
| CX3020 | TQC SHEEN Curve-X3 Furnace Temperature Tracker Kit |
| CX3021 | TQC SHEEN Curve-X3 Furnace Temperature Tracker Kit |
| CX3015 | TQC SHEEN Curve-X3 Standard Furnace Temperature Tracker |
| CX3010 | TQC SHEEN Curve-X3 Basic Furnace Temperature Tracker Kit |
| CX3005 | TQC SHEEN Curve-X3 Basic Furnace Temperature Tracker |
| CX3055 | 10 elastic band sleeves for Curve-X3 Basic |
| CX2005 | Curve-X Incubator (H = 140mm, T = 300°C/572°F) |
| CX2011 | Curve-X Cooler (for CX2005 and CX2017) |
| CX3060 | Carrying case for basic and standard furnace temperature tracker kits |
| CM1105 | Data cable for the Curve-X USB data logger |
| CX2100 | Probe identification kit |
| CX3050 | Bracket for the Curve-X3 Basic Kit |
| CX3059 | Curve-X3 Basic Furnace Temperature Tracker and Cable's Miniature Protective Case |
| CX3058 | Curve-X3 standard Recorder and small protective case for cables |
