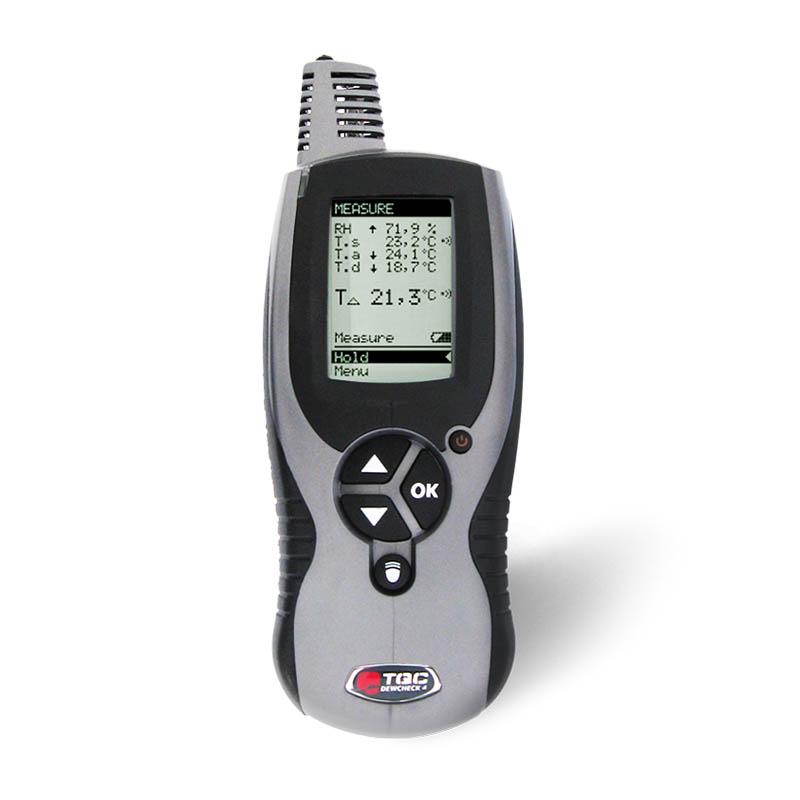

TQC DC7510 DewCheck 4 dew point meter
DC7510
TQC sheen DC7510 Dew point meterSPEC
TQC sheen DC7510 Dew point meterDetails
TQC sheen DC7510 Dew point meterPacking list
- SKU
- NB022297
- Temperature range - environment
- -20~+ 80℃
- temperature error
- ±0.5℃
- Resolution - Temperature
- 0.1℃
- Humidity range
- 0~100%RH
- Humidity error
- ±3% RH
- Resolution - Humidity
- 0.1%
- Sensors location
- built-in
- statistical function
- Humidity, Ta and Ts. Calculate Miscellaneous Parameters and Dates and Times
- Data storage
- Manual 6000 readings; automatic 12,000 readings
- Operating temperature
- Operating temperature - 20 ℃~ 60 ℃
- Temperature range - Surface
- - 30~+ 60 ℃
- temperature error
- ± 0.5 ℃
- Resolution - Temperature
- 0.1 ℃
- Temperature range - Surface Exterior
- - 30~+ 60 ℃
- temperature error
- ± 0.5 ℃
- Resolution - Temperature
- 0.1 ℃
- Display
- LCD backlit display
- batch number
- 8
- Alarm function
- Beep Sounds, Display Symbols and RED LEDs
- Operating language
- English, German, French, Japanese
- meet the standard
- ISO 8502-4, ASTM D3276-05, BS 7079-B4, NACE RP prop 97
Introduction
The TQC DewCheck 4 - Dew Point Meter (DPM)/Dew Point Meter is a versatile dew point meter for measuring and recording all the climatic parameters required for treated surfaces. Compliant with ISO 8502-4 and ASTM D3276-07, this easy-to-use and rugged shut-off valve measures Relative Humidity (%RH), ambient temperature (Ta) and surface temperature (Ts) and calculates dew point temperature (Td) and differential between dew point temperature and surface temperature (ÄT). The difference between the surface temperature and the dew point temperature indicates very good climatic conditions for painting. All parameters can be stored in the dehumidifier's memory and marked with the date and time.
For communication between the DewCheck 4 Corrosion Tester and a PC, a DewCheck Inclinometer USB cable is standard. In order to analyze the data, the DewCheck 4 is equipped with a special centering finishing analysis software. This software is Dewpoint Meters' current professional temperature and humidity monitoring software package. It provides user-friendly reporting for standard production work and advanced calculations for in-depth analysis of climatic parameters prior to coating. Detailed graphical representations and customizable reports help make the right decisions.
Meets standards
ISO 8502-4、ASTM D3276-05、BS 7079-B4、NACE RP prop 97
Features
• Large illuminated graphic display
• One-handed operation
• Simple menu-driven user interface
• Rich data logging function, readings are stamped with time and date and stored on the meter
• USB interface connects the device to the PC for programming and downloading data.
• Use as a "live" inspector tool or as a "standalone" data logger
• Heavy-duty ergonomic housing
• Set limits for each parameter
• Acoustic and visual alarms
• Select Celsius/Fahrenheit
• Automatic trend indicator shows the trend of climatic conditions (up, down, stable)
• High-end industrial sensors and built-in probes
• Integrated "spare" LED flashlight
• DewLog temperature and humidity monitoring software included
• Calibration certificate valid for two years!

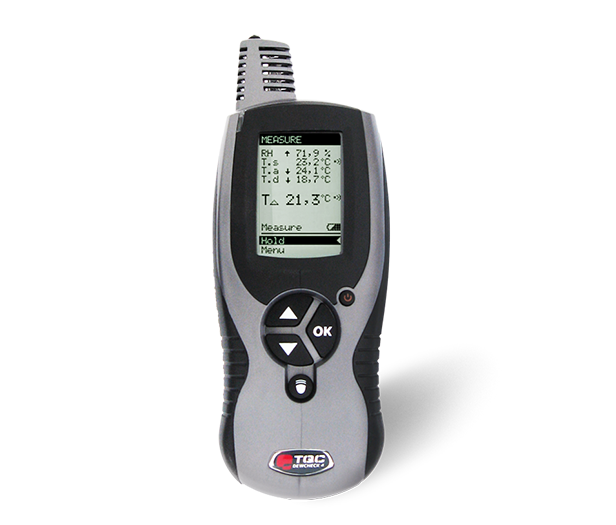

Product display
