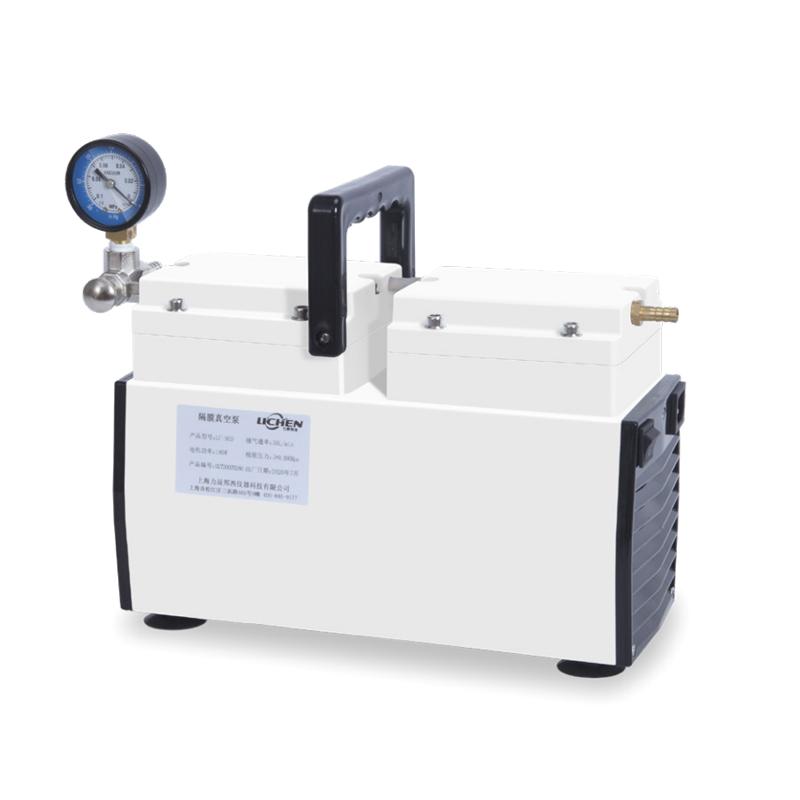

LICHEN LC-85DL Oil Free Diaphragm Vacuumpump
LC-85DL
LICHEN LC-85DL Oil Free Diaphragm VacuumpumpSPEC
LICHEN LC-85DL Oil Free Diaphragm VacuumpumpDetails
LICHEN LC-85DL Oil Free Diaphragm VacuumpumpPacking list
- SKU
- NB022352
- Noise value
- 50dB (A)
- Dimensions
- 250*135*210mm
- Weight
- 10kg
- Pumping rate
- 60L/min
- ultimate pressure
- >0.085 (150mbar)
- series
- 2
- Motor power
- 180w
- Diaphragm material
- Imported corrosion-resistant rubber
- function
- Positive and negative pressure dual-purpose type
- Positive pressure
- 40Mpa
Product Description
Oil-free diaphragm Vacuum Pump is a high-tech replacement product. In addition to being suitable for circulating water Vacuum Pumps and rotary vane Vacuum Pumps, it is also used in product analysis, fine chemicals, biochemistry, food inspection and other fields, and is a supporting product for precision chromatography instruments.
Features
◇ No need for any working medium (no oil), no pollution
◇ Equipped with overheating power-off protector, it will automatically power off when the pump body temperature reaches 130°C
◇ Frictionless membrane body movement, no heat generation, no friction loss
◇ The body is designed with an automatic cooling and exhaust system, which can ensure 24-hour continuous operation
◇ Adjustable pressure design, which can meet the vacuum degree and gas flow rate within a certain range
◇ Small size, light weight, easy to move, save laboratory space, convenient for repair and maintenance
◇ The parts in contact with the gas of the anti-corrosion pump are treated with Teflon, which has complete chemical corrosion resistance
Series selection
Model | LC-85 | LC-85L | LC-95D | LC-85DL |
Pumping speed(L/min) | 30 | 30 | 30 | 60 |
Ultimate Pressure(Mpa) | >0.085 | >0.085 | >0.095 | >0.085 |
(150mbar) | (150mbar) | (50mbar) | (150mbar) | |
Positive Pressure (Psi) | — | 40 | — | 40 |
Progression | 1 | 1 | 2 | 2 |
Motor power(W) | 180 | 180 | 180 | 180 |
Size L×W×H (mm) | 250×135×210 | 250×135×210 | 315×135×210 | 315×135×210 |
Weight | 7.5 | 8 | 10 | 10 |
Diaphragm material | Imported corrosion-resistant rubber | Imported corrosion-resistant rubber | Imported corrosion-resistant rubber | Imported corrosion-resistant rubber |
Noise (dB) | <50 | <50 | <50 | <50 |
function | Negative pressure | Positive and negative pressure dual-purpose type | Negative pressure | Positive and negative pressure dual-purpose type |
