2XZ-2

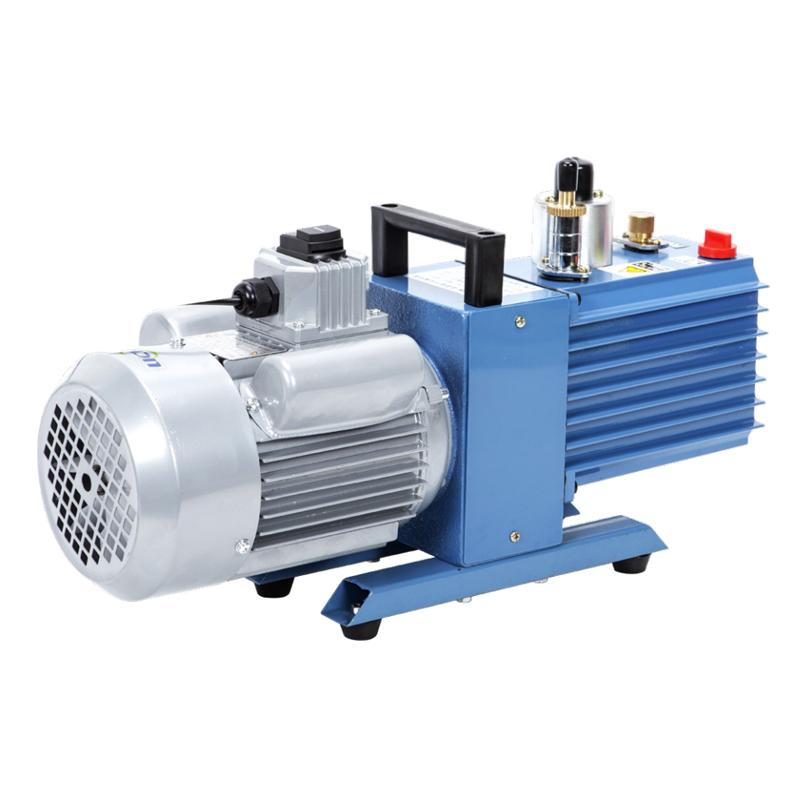

LICHEN 2XZ-2 Direct Rotary Vane VacuumpumpSPEC
LICHEN 2XZ-2 Direct Rotary Vane VacuumpumpDetails
LICHEN 2XZ-2 Direct Rotary Vane VacuumpumpPacking list
- SKU
- NB022362
- Working Voltage
- 220/380V
- Motor power
- 0.37Kw
- Display
- Pressure gauge × 1
- Number of air extraction heads
- 1
- Ultimate pressure - partial pressure
- ≤0.06Pa
- Ultimate Pressure - Full Pressure
- ≤1.33Pa
- Pumping rate
- 2L/s（7.2m³/h）
- Air inlet diameter (outer diameter)
- G3/4、KF-25
- oil Capacity
- 1.0L
- Net Weight
- 20Kg
- Dimensions
- 488*145*275mm
Product Description
This series of pumps is used as the basic equipment for the extraction of gases from sealed containers. It can be used alone, but also can be used for booster pumps, diffusion pumps, molecular pumps, pre-pump pumps, maintenance pumps, titanium pumps, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, instrumentation, instrumentation, refrigerators, air conditioning lines, laboratories and other vacuum operations.
Features
◇ Low-noise design and precision processing to achieve low noise
◇ Equipped with gas ballast valve to prevent the pump oil from mixing with water and prolong the service time of the pump oil
◇ Adopt similar product design, small size, light weight, low noise and easy start-up
◇ It can be equipped with small-diameter adapter joint, KF interface and flange interface
Series selection
| Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 |
| Operating Power Supply (V) | 220 | 220/380 | 220/380 | 220/380 |
| Motor power(Kw) | 0.18 | 0.25 | 0.37 | 0.55 |
| How it is displayed | Pressure gauge × 1 | |||
| Number of taps | 1 | |||
| Ultimate Pressure (Pa) - Partial pressure | ≤0.06 | |||
| Ultimate Pressure (Pa)-Full pressure | ≤1.33 | |||
| Pumping speed (L/s) | 0.5（1.8m³/h） | 1（3.6m³/h） | 2（7.2m³/h） | 4（14.4m³/h） |
| Air Inlet Bore (O.D.) (mm) | G3/8 | G3/4 | ||
| KF-16 | KF-25 | |||
| Oil Capacity (L) | 0.6 | 0.7 | 1 | 1.1 |
| Net Weight (Kg) | 16 | 17 | 20 | 22 |
| Dimensions(mm) | 440×130×250 | 485×130×250 | 488×145×275 | 528×145×275 |
