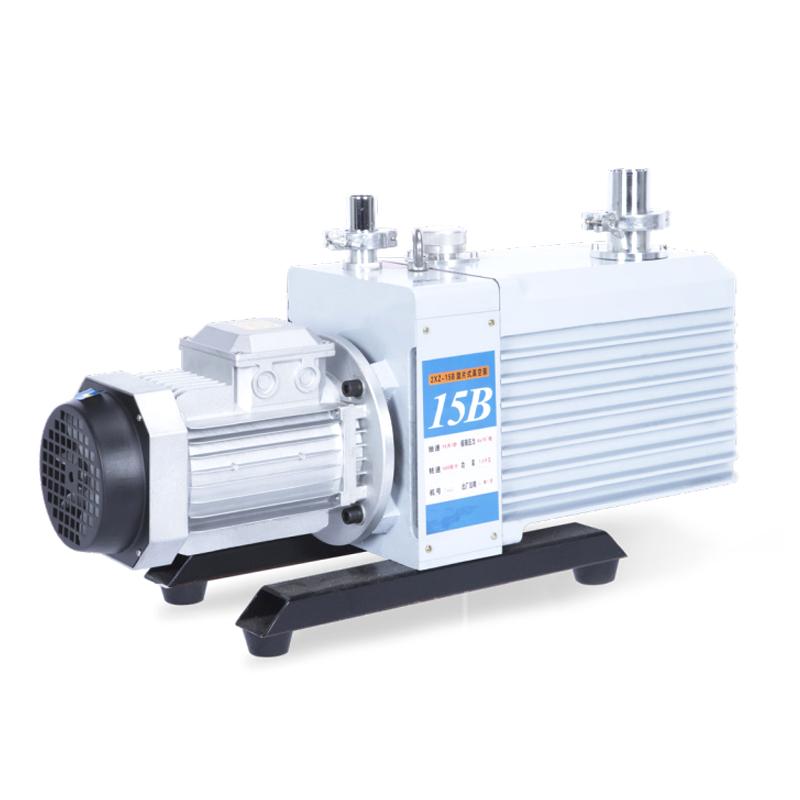

LICHEN 2XZ-15B Direct Rotary Vane Vacuumpump

2XZ-15B

Direct Rotary Vane Vacuumpump

Pumping rate 15L/s, ultimate pressure partial pressure ≤ 4 × 10-2Pa, rotational speed 1400rpm, Power 380V, motor power 1.5Kw, air inlet diameter Φ40mm, noise value 72dB (A), oil capacity 4L

Product Description

The 2XZ-B series Vacuum Pump is the basic equipment used to remove the gas from the sealed container. The forced oil inlet device of the oil pump is adopted, and the advantages of continuous operation can still be carried out when the pressure of the air inlet ≤ 1.33×103. It can be used alone, but also can be used for booster pumps, diffusion pumps, molecular pumps, pre-pumping pumps, maintenance pumps, titanium pumps, vacuum drying, freeze drying, vacuum degassing, vacuum packaging, instruments, instrumentation, refrigerators, air conditioning lines and laboratories and other vacuum operations and supporting use.

Features

◇ The oil pump is used to force the oil inlet device, and the vacuum degree is higher

◇ Low-noise design and precision processing to achieve low noise

◇ Equipped with gas ballast valve to prevent the pump oil from mixing with water and prolong the service time of the pump oil

◇ Adopt similar product design, small size, light weight, low noise and easy start-up

◇ It is equipped with an automatic double anti-oil return safety device, and no oil return

◇ It can be equipped with small-diameter adapter joint, KF interface and flange interface

Series selection

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
