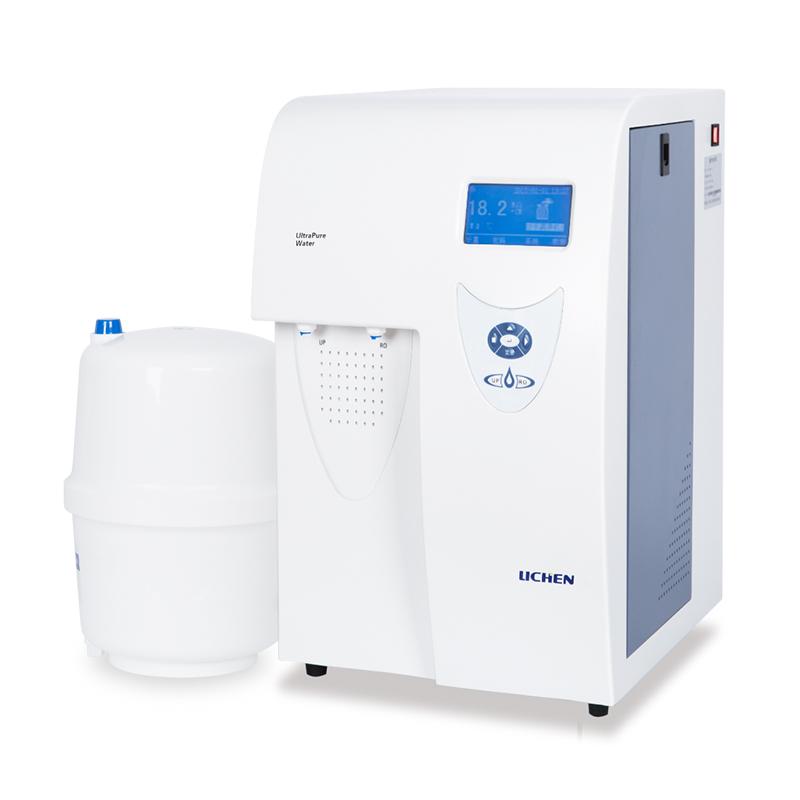

LICHEN UPA-L 80L/h Ultra Pure Water Machine
UPA-L 80L/h
LICHEN UPA-L 80L/h Ultra pure water machineSPEC
LICHEN UPA-L 80L/h Ultra pure water machineDetails
LICHEN UPA-L 80L/h Ultra pure water machinePacking list
- SKU
- NB022415
- Flow Rate
- 80L/h
- Pure water quality
- RO: ≤10-20μs/cm@25℃ UP: ≥17-18.2MΩ.cm@25℃
- inlet pressure
- 0.15MPa (pressure at minimum feed water flow rate of 0.3m ³)
- Operating Environment
- Water supply conditions Urban tap water or groundwater (TDS ≤ 200PPM) pH: 4~ 9 15~ 35 ℃
- Power
- 220V/50HZ
- Host size
- 400*490*550mm
- Packing Weight
- 35Kg
- power
- 50W

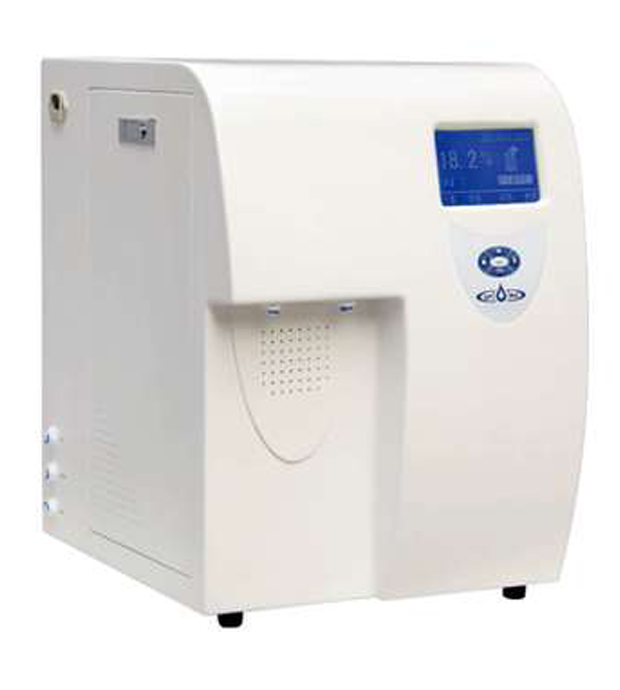

Product Description
The UPA-L series Ultrapure Water System is designed for high-precision experiments with extreme requirements for ultrapure water. From product design, process flow to original component procurement, production and commissioning, every link is to make UPTA series Ultrapure Water System a good product comparable to imported Ultrapure Water System.
Features
◇ 5.1 inch large screen LCD Chinese display, real-time display of running status
◇ RO membrane, UP water dual-channel water quality and temperature display, good online monitoring
◇ Adopt double pump operation, regular automatic circulation, and maintain stable water quality at all times
◇ Chinese and English language selection function, convenient for language use
◇ Pretreatment, RO film, UV lamp and ultrapure water bag life can be set arbitrarily.
◇ Consumables usage and remaining time can be displayed
◇ It can be automatically started and the circulation system can be turned off to prolong the life of the ultrapure water bag
◇ Consumables are automatically reminded when they expire to avoid water quality decline
◇ The system is set with password protection function to prevent unauthorized data change
◇ Full plastic shell, no rust
◇ UPA-L is a floor-standing Ultrapure Water System
Series selection
| Model | UPA-L 40L/h | UPA-L 60L/h | UPA-L 80L/h | UPA-L 100L/h |
| Enter the power supply | 220V/50HZ | |||
| power | 50W | 50W | ||
| Minimum water supply | 0.3m³/hr | 0.3m³/hr | ||
| Feed water conditions | Municipal tap water or groundwater (TDS≤200PPM) | Municipal tap water or groundwater (TDS≤200PPM) | ||
| pH: 4-9 15-35℃ | pH: 4-9 15-35℃ | |||
| Apply water pressure | 0.15 MPa (pressure at a minimum feed flow rate of 0.3 m³) | 0.15 MPa (pressure at a minimum feed flow rate of 0.3 m³) | ||
| Pure water is produced | 40L/H | 60L/H | 80L/H | 100L/H |
| Effluent standards | RO: ≤10-20μs/cm@25℃ | RO: ≤10-20μs/cm@25℃ | ||
| UP: ≥17-18.2MΩ.cm@25℃ | UP: ≥17-18.2MΩ.cm@25℃ | |||
| Dimensions | 400mm× 490mm×550mm (L×W×H) | 400mm× 490mm×550mm (L×W×H) | ||
| weight | 35Kg | 35Kg | ||
