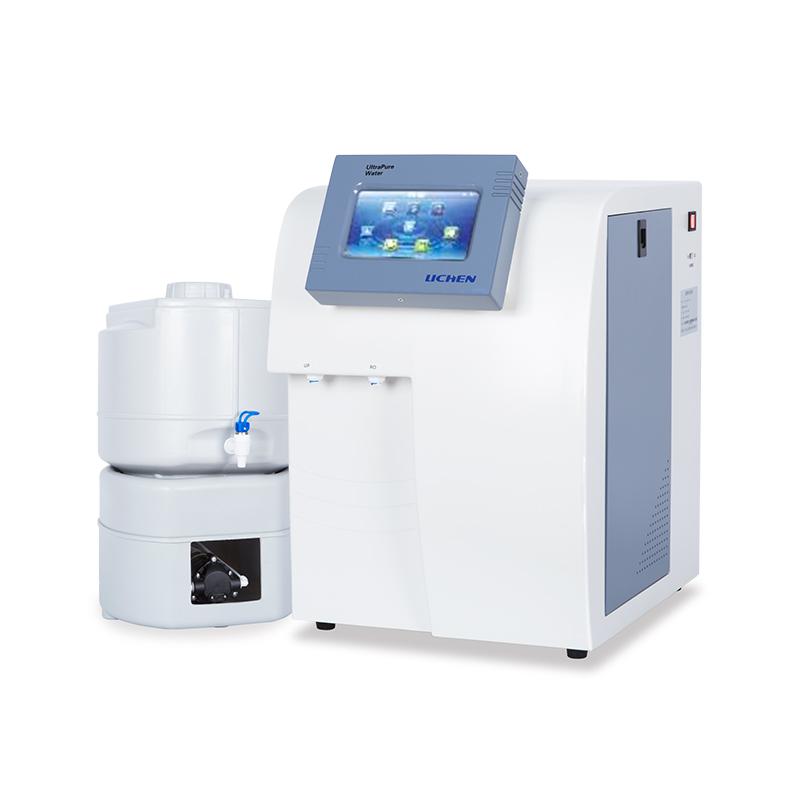

LICHEN UPT PLUS 10L/h Ultra Pure Water Machine
UPT PLUS 10L / h
LICHEN UPT PLUS 10L / h Ultra pure water machineSPEC
LICHEN UPT PLUS 10L / h Ultra pure water machineDetails
LICHEN UPT PLUS 10L / h Ultra pure water machinePacking list
- SKU
- NB022417
- Flow Rate
- 10L/h
- Pure water quality
- UP resistivity > 18.2mΩ .cm@25C ° RO Conductivity Detector rate 2-10us/cm Heavy metal ions < 0.1ppb Total organic carbon (TOC) < 10ppb Microorganisms < 1CFU/ml Microparticles < 1/ml (> 0.22um)
- Inlet pressure
- 0.1-0.5Mpa
- Operating Environment
- Water supply conditions Urban tap water TDS < 200ppm When TDS > 200PPM, a water softener is required
- Host size
- 400*490*550mm/35kg
- power
- 50W
- water outlet
- Double outlet: RO; UP
- Instant water withdrawal
- Pure water 1.5L/min Ultrapure water 1.2L/min (the flow rate of the UF model is slightly slower)
Product Description
The UPT PLUS series of Ultrapure Water Systems is designed for high-precision experiments with extreme requirements for ultrapure water. From product design, process flow to original component procurement, production and commissioning, every link is to make UPT PLUS series Ultrapure Water System a good product comparable to imported Ultrapure Water System.
Features
◇ 7-inch large color touch screen, animated menu control system
◇ RO water and UP water quality and inlet water temperature display to achieve online monitoring
◇ Automatic reminder of consumables failure to avoid water quality decline
◇ Password protection function to prevent unauthorized data change
◇ Regular automatic circulation to protect and stabilize water quality at all times
◇ It can be started freely and the circulatory system can be turned off
◇ Compatible with two pure water storage methods, pressure bucket and liquid level Water Tank, which can directly display the water level and water storage
◇ Quantitative water intake function (1-999999ml) Qualitative water intake function (0.1-18.2MΩ.cm)
◇ Perfect information query and data management function, fully grasp the operation status of the system
◇ Standard USB interface, can be connected to the printer, print historical water quality, water intake and other conditions
◇ Standard one-key disinfection function component to realize rapid disinfection of RO membrane, circulating pipeline and Water Tank
◇ System time setting, timer standby (0~60min), timer shutdown (0~24h) function
◇ Pretreatment, RO film, UV lamp and ultrapure water bag life can be set arbitrarily, and the consumables are used and the remaining time can be displayed
◇ Built-in RO membrane anti-Graduation timed automatic flushing function to prolong the service life of RO membrane
◇ Full plastic shell, no rust
◇ UPT PLUS is a desktop Ultrapure Water System
Series selection
| Model | UPT PLUS 10L/h | UPT PLUS 20L/h |
| Pure water is produced | 10L/H | 20L/H |
| Water | City tap water TDS<200ppm When TDS > 200ppm, a water softener is required | |
| Water outlet | Double outlet: RO;UP | |
| Effluent quality | UP resistivity > 18.2mΩ.cm@25C° RO conductivity 2-10us/cm Microorganisms< 1CFU/ml microparticulate matter<1/ml (>0.22um) Heavy metal ions< 0.1 ppb, total organic carbon (TOC) < 10 ppb | |
| Instantaneous water withdrawal | Pure water: 1.5L/min, ultrapure water: 1.2L/min (with UF model, the flow rate is slightly slower) | |
| Hydraulic | 0.1-0.5Mpa | |
| The power of the whole machine | 50W | |
| Dimensions/weight | 400*490*550mm/35kg | |
