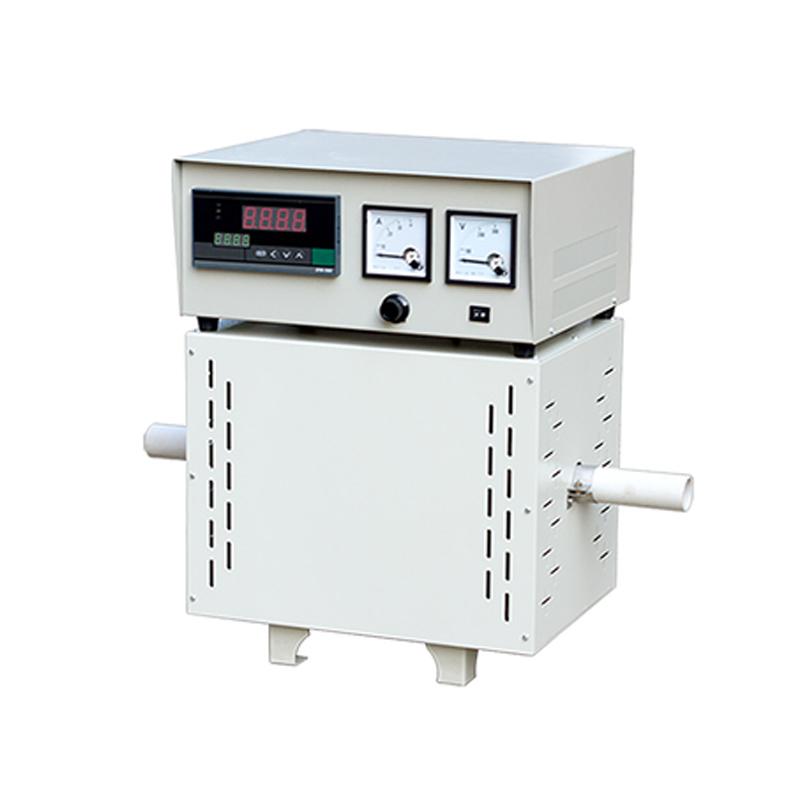

LICHEN SK-2.5-13S tubular Resistance Furnace
SK-2.5-13S
LICHEN SK-2.5-13S Tubular Resistance FurnaceSPEC
LICHEN SK-2.5-13S Tubular Resistance FurnaceDetails
LICHEN SK-2.5-13S Tubular Resistance FurnacePacking list
- SKU
- NB022470
- maximum temperature
- 1300℃
- Furnace size
- 180*Φ22*2mm
- Power supply Voltage
- 220V
- Dimensions
- 600*240*280mm
- Rated power
- 2.5KW
- phase number
- Phase 1
- Carbon rod specification
- 300mm
- working segment
- Φ8/14×180mm
- connection terminal
- Φ14×60/2mm
- Equipped with Controller
- KSY-6D-16

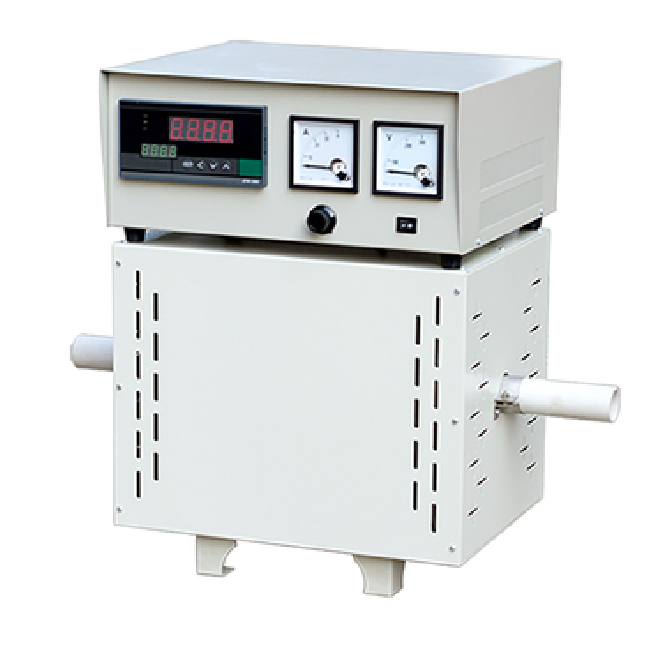

Product Description
The shell of this electric furnace is rolled and welded by cold-rolled plate, the furnace is sintered with high-alumina material, and the silicon carbon rod of the heating element is stretched on both sides of the furnace or the upper and lower parts of the furnace to form a complete set of equipment with the supporting controller, which can reach up to 1350 °C, which can be used for carbon determination, small steel quenching, ceramic sintering, etc.
Features
◇ The appearance is treated with electrostatic spraying of high-temperature resistant and corrosion-resistant paint
◇ The furnace is made of high-temperature refractory sintering, which has a long service life
◇ The console adopts intelligent PID digital display controller, which has good stability and high precision
◇ The lining of the furnace is made of good insulation cotton, and the insulation effect is good
Series selection
| Electric furnace model | SK-2.5-13 | SK-2.5-13S |
| Rated power(KW) | 2.5 | 2.5 |
| Power supply Voltage (V) | 220 | |
| Number of phases (phases) | 1 | |
| Maximum Temperature (°C) | 1300℃ | |
| Furnace size(mm) | 180×φ18 | 180×φ22*2 |
| Carbon rod specification(mm) | 300 | |
| Working Section(mm) | φ8/14×180 | |
| Connector(mm) | φ14×60/2 | |
| Maximum heating time(mm) | ≤50 | |
| Dimensions(mm) | 600×240×280 | |
| Equipped with a controller | KSY-6D-16 | |
