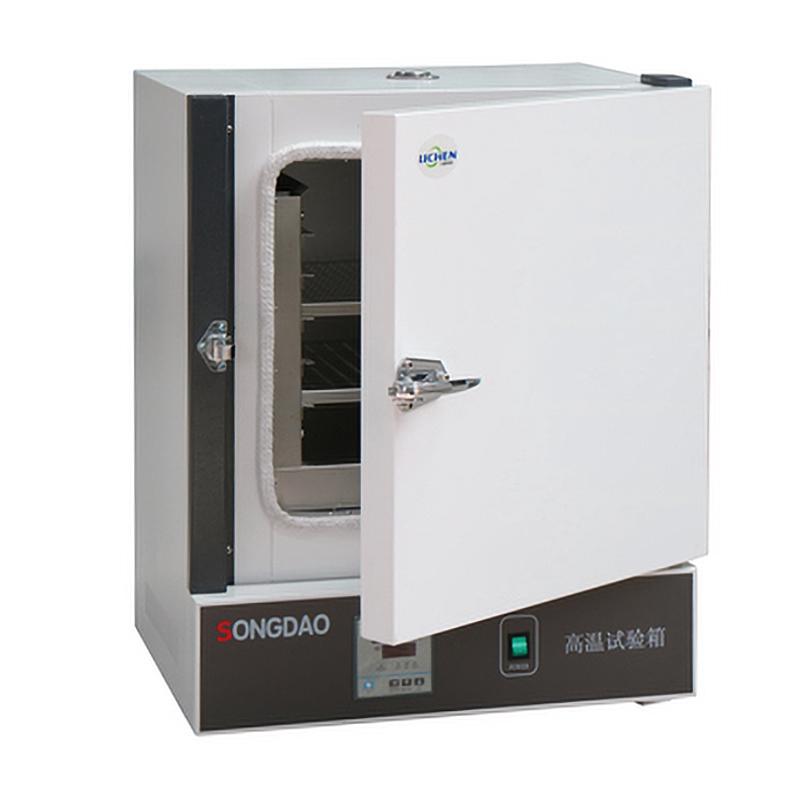

LICHEN GW-400B Artificial climate Chamber
GW-400B
LICHEN GW-400B Artificial Climate ChamberSPEC
LICHEN GW-400B Artificial Climate ChamberDetails
LICHEN GW-400B Artificial Climate ChamberPacking list
- SKU
- NB022538
- Temperature range
- RT+10-500°C
- Temperature fluctuation
- ±1℃
- Input power
- 7500W
- Environment temperature
- RT+~40°C
- Power
- AC380V /50HZ
- Liner size
- 650*700*850mm
- Dimensions
- 800*1110*1250mm
Product Description
The high-Temperature Test Chamber is the test equipment required in the fields of aviation, automobiles, home appliances, scientific research, etc., which is used to test and determine the parameters and performance of electrical, electronic and other products and materials after the temperature environment changes after high temperature or constant test.
Features
◇ The shell is made of good cold-rolled steel, and the surface is treated by electrostatic spraying process, which is beautiful and generous, anti-corrosion and durable.
◇ The studio is made of high-temperature stainless steel plate and has been treated with anti-corrosion, the height of the shelf is adjustable, and the four corners are formed into a semi-circular arc, which is easy to clean.
◇ The design of "double-layer inner liner" is safe and reliable, beautiful appearance, easy to open, and small footprint, which is an excellent choice for processing and manufacturing in factory workshops and office experiments.
◇ Comprehensive three-dimensional forced air supply technology to ensure that the temperature in the studio is uniform and consistent.
◇ Microcomputer intelligent digital display temperature control instrument accurately controls the temperature to ensure that there is no overshoot of temperature, and has the functions of timing, over-temperature alarm and so on.
◇ Adopt high-temperature high-speed fan, good heat insulation design, can operate at high temperature for a long time, has a long service life, is easy to replace, and is better green, energy-saving and environmentally friendly.
◇ High-temperature resistant ceramic fiber sealing strip is used, and the lock-type elastic adjustment door lock is used to ensure good sealing and prevent heat loss.
◇ The unique clean design of the geometric cavity ensures good protection of the sample.
Series selection
| Model | GW-50B | GW-80B | GW-150B | GW-240B | GW-400B | GW-640B |
| Supply Voltage | AC220V /50HZ | AC380V /50HZ | ||||
| Temperature control range | Room temperature +10-500°C | |||||
| Temperature fluctuations | ±1℃ | |||||
| Operating ambient temperature | ＜40℃ | |||||
| Input power | 2KW | 3KW | 4KW | 6KW | 7.5KW | 10KW |
| Studio size cm | 35×35×40 | 40×40×50 | 50×50×60 | 60×60×65 | 65×70×85 | 80×80×100 |
| Dimensions cm | 50×60×73 | 55×78×83 | 65×88×93 | 75×98×98 | 80×111×125 | 95×121×140 |
| Shelf load | 15KG | |||||
