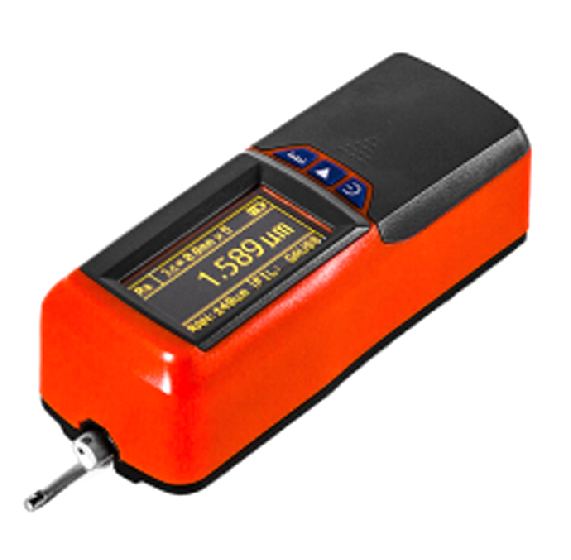

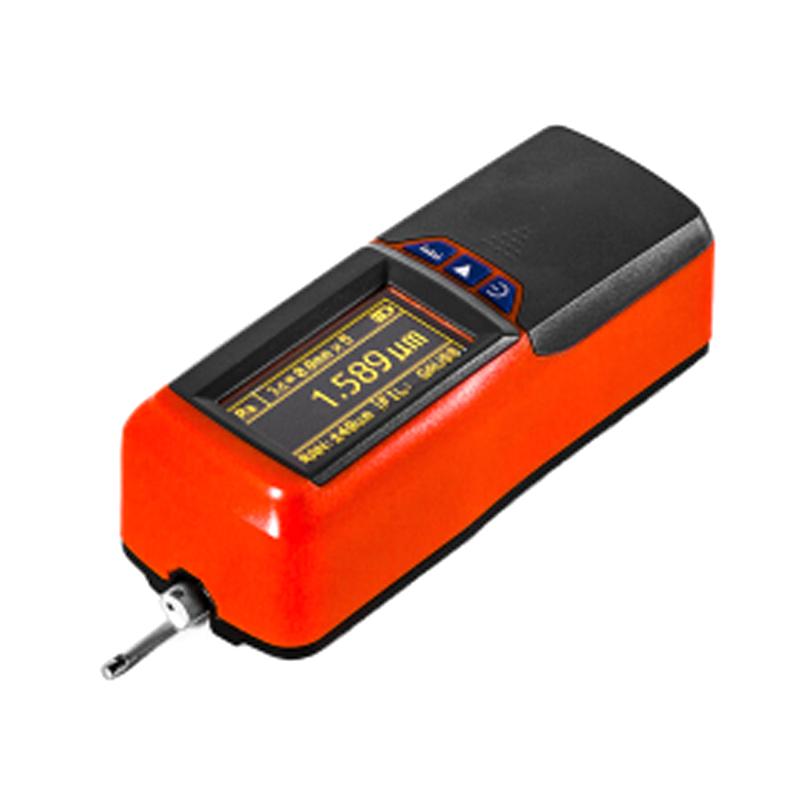

LEEB U942 Portable Roughness Gauge (Split)

U942

Portable Roughness Gauge

overview

Portable roughness Tester is a portable stylus surface roughness shape measuring instrument, which is suitable for the detection of workshop verification stations, laboratories, measurement rooms and other environments. The measurement parameters are in line with international standards and compatible with the standards of some industrially developed countries such as the United States, Germany, Japan, and the United Kingdom. Measurement results can be displayed numerically and graphically

It is displayed on the LCD display and can also be output to the printer.

The upgrade has been improved in the following areas:

Using lithium-ion rechargeable battery, it can work for a long time, no memory effect, can work while charging, short charging time, and long battery life.

The working performance of the circuit is improved, the operating Voltage is reduced, and the power consumption and circuit noise are reduced accordingly.

The driving mechanism, materials and processing technology of the sensor have been improved, and the assembly is more accurate and the measurement is more stable.

The newly designed display interface adds some necessary measurement hints and low Voltage hints.

The sensor interface has been improved to make the sensor more accurate and tightly inserted into the main unit to ensure the accuracy of the measurement process.

The LCD backlight function is added, which is convenient for users to use in dark places.

Smaller size and lighter weight.

Product functions and features

★ Mechatronics design, small size, light weight, easy to use;

★ DSP chip is used for control and data processing, with fast speed and low power consumption;

★ Large range, multi-parameter Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr;

★128×64 OLED dot matrix display, digital/graphic display;

★ The display is rich and intuitive, and can display all parameters and graphics;

★ Compatible with ISO, DIN, ANSI, JIS national standards;

★ Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect;

★ There is a remaining power indicator icon to prompt the user to charge in time;

★ An indication of the charging process can be displayed, so that the operator can know the charging level at any time

★ The continuous working time is more than 20 hours

★ Large-capacity data storage, which can store 100 sets of raw data and waveforms.

★ Real-time clock setting and display for easy data recording and storage.

★ It has power-saving functions such as automatic sleep and automatic shutdown

★ Reliable anti-motor run-off circuit and software design

★ Display measurement information, menu prompt information, error information, power on and off and other prompt information;

★ The all-metal housing design is rugged, compact, portable and reliable.

★ Chinese/English language selection;

★ Can be connected to a printer;

★ Good repeatability and linearity - the indication value is stable, accurate and reliable

★ Easy and convenient operation – high feasibility on site

★ Protective slide cover – protects the body from oil damage and prolongs its life

★ With USB interface, software CD, PC communication, view data, waveform, print report, etc

Main technical performance indicators

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
