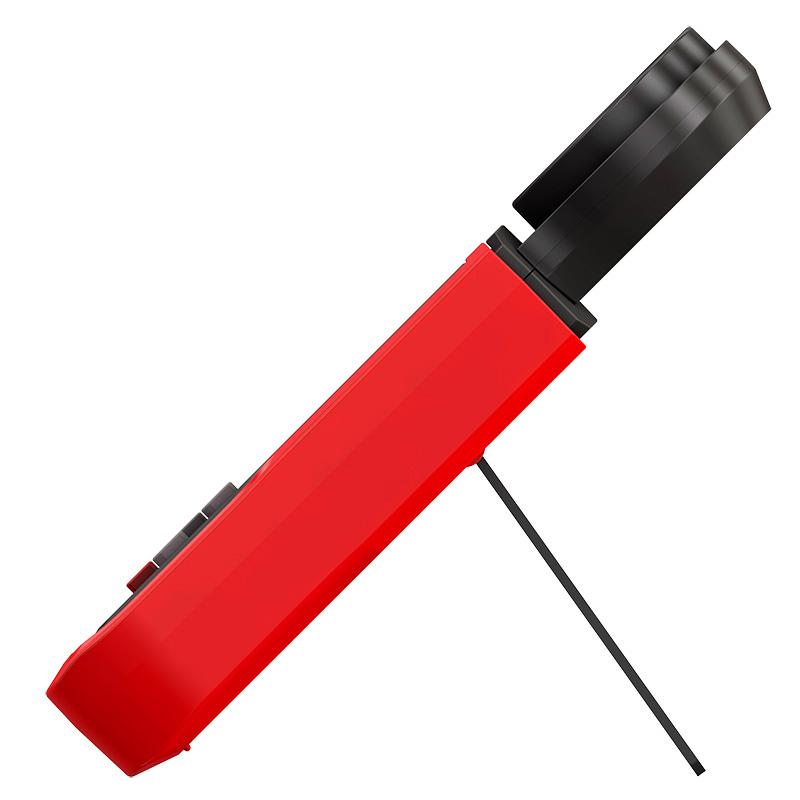

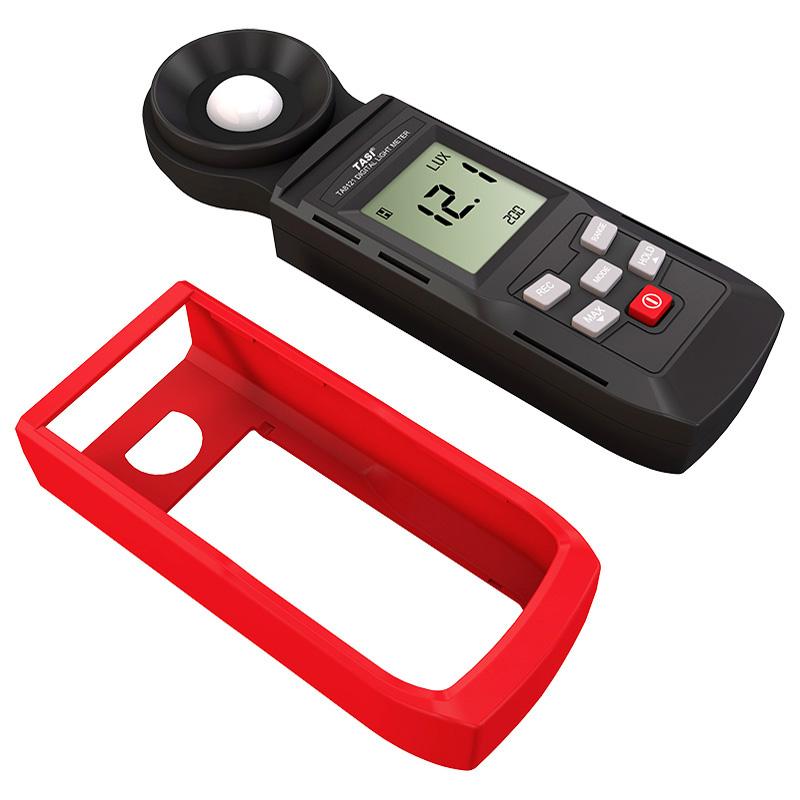

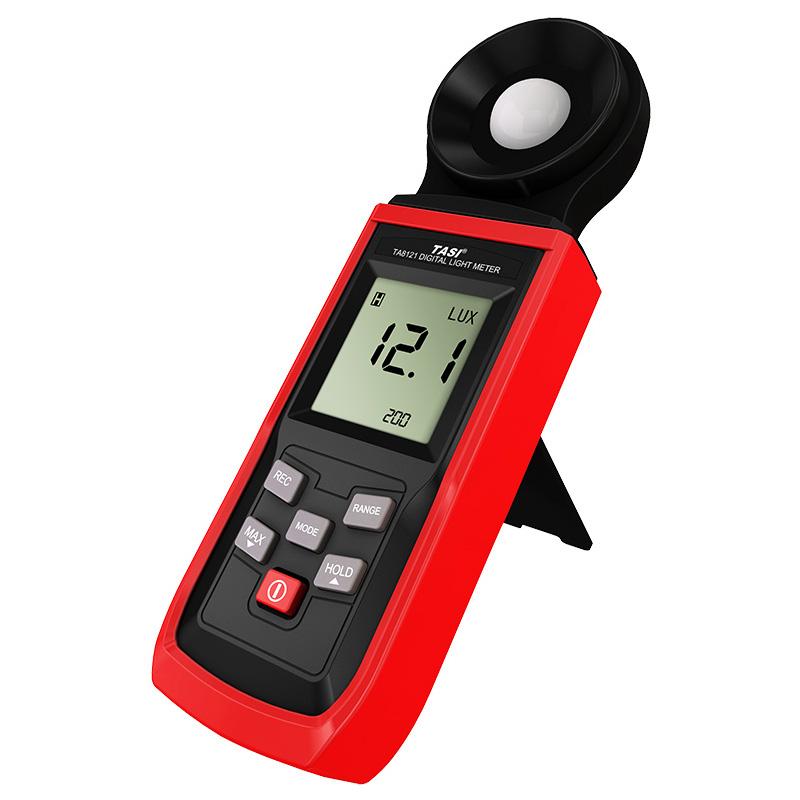

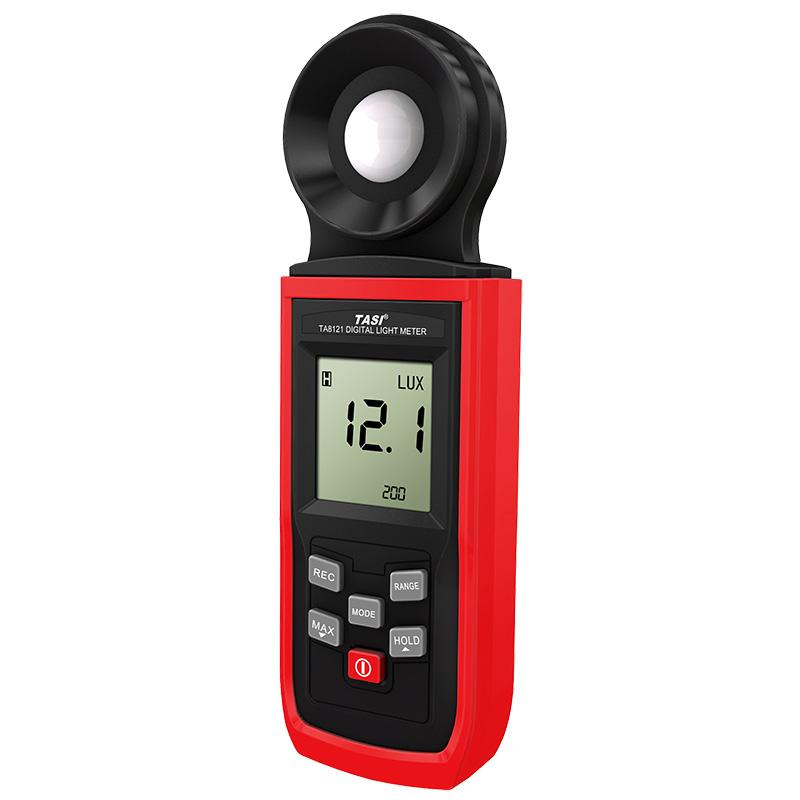

TASI /TASI TA8123 digital luminometer
TA8123
TASI TA8123 Digital luminometerSPEC
TASI TA8123 Digital luminometerDetails
TASI TA8123 Digital luminometerPacking list
- SKU
- NB022778
- Measurement range
- 200Lux，2000Lux，20000Lux，200000Lux
- Resolution
- 200Lux gear: 0.1 Lux, Miscellaneous gear 1LUX
- Repeatability
- ±2%
- Sampling rate
- About 2 times/second
- Power Supply
- 2 * 1.5V AAA battery
- Host size
- 185*55*30mm
- Instrument Weight
- About 150 grams
- input channel
- 3 ½-Bit LCD display, maximum reading 1999
- Precision
- +/- 3% rdg +/- 10dgts (< 10,000 lux) +/- 4% rdg +/- 10dgts (> 10,000 lux) (Color temperature 2856 K standard flat lamp correction)
- photoreceptor
- Photodiode with filter
- range conversion
- Manual or automatic measurement
- MAX Maximum and MIN Minimum measurements
- Yes.
- LUX/FC conversion function
- Yes.
- Low Voltage prompt
- Yes.
- Automatic data collection and recording
- Automatically record 50 measurements (with delay time recording, 1 to 60 seconds optional)
- Operating environment
- 0 °to 40℃ (32℉ to 104℉) ＜70% R.H.
Introduction
Lux meter (or lux meter) is an instrument that specializes in measuring luminosity and brightness. It is to measure the intensity of light (illuminance) is the degree to which the object is illuminated, that is, the ratio of the luminous flux obtained by the surface of the object to the irradiated area. A lux meter is usually composed of a selenium photocell or silicon photocell and a microampere meter.
Features
CE certified qualified products.
3-1/2 digit LCD display, maximum reading 1999.
Manual/automatic measuring range: 0~200,000Lux.
It can measure LUX and FC illuminance units.
It has a peak lock function and a reading value lock function.
Maximum and minimum value measurement function.
It can record and store 50 sets of data. (With delay time recording function, 1~60 seconds optional).
