KORNO GT-903-Y2 (O2, EX) Standard 2-in-1 Gas Detector

SE
The KORNO GT-903-Y2 standard 2-in-1 Gas Detector can detect both oxygen and combustible gases at the same time. It is a pump-suction Gas Detector. The GT-903-Y2 2-in-1 Gas Detector uses a 2.4-inch industrial-grade color screen.
$378.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con VIDEO CATCAT

KORNO GT-903-Y2(O2,EX) Gas DetectorSPEC

KORNO GT-903-Y2(O2,EX) Gas DetectorDetails

KORNO GT-903-Y2(O2,EX) Gas DetectorPacking list

SKU
NB022792
Detection gas
O2、EX
range
0~30%vol、0~100%LEL
resolution
0.01% vol0.01% vol
temperature and humidity
Optional accessories, temperature detection range: -40~120 ℃, humidity detection range: 0~100% RH
Sampling method
Pump suction
Detection Accuracy
≤±3%
linearity error
≤±1%
Response time
T90≤20s
Zero drift
≤±1%(F.S/年)
recovery time
≤20s
Sexual repeability
≤±1%
data storage
Real-time storage and Timer storage can be set; single channel can store 30800 groups of data
Explosion-proof sign
Ex ia IIC T4 Ga
Shell material
ABS+PC
Protection class
IP65
Operating Temperature
-30~60℃
Environment humidity
0~95% RH non-condensing
Operating Pressure
-30Kpa ~ 200Kpa
Power
4000mA Rechargeable Polymer Battery
Dimensions
180*85*55mm
Execution standards
GB3836.1-2010、GB3836.4-2010
GT-903-Y2(O2,EX)
Gas Detector

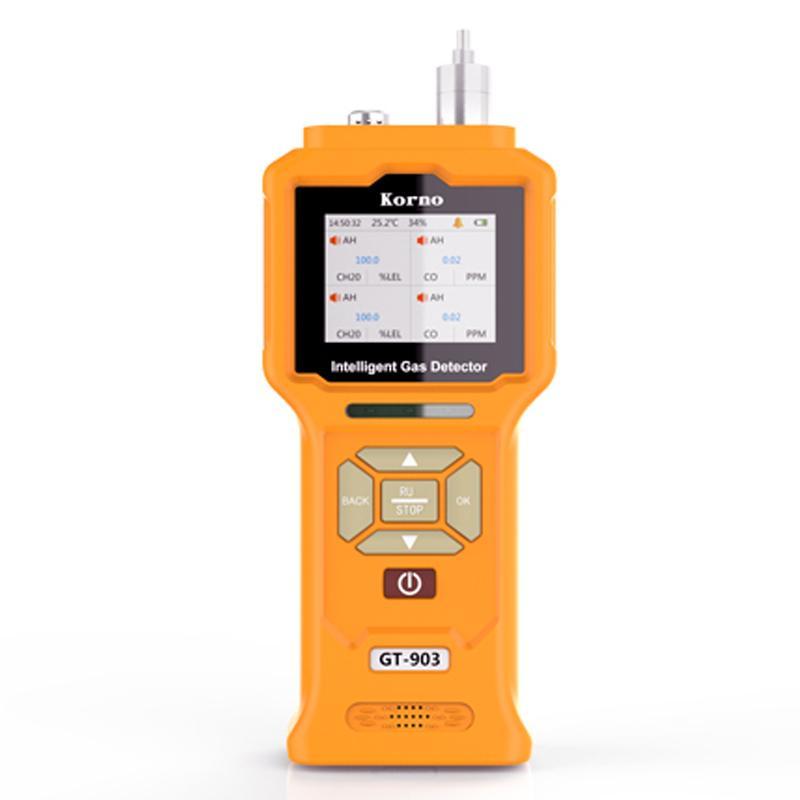

KORNO GT-903-Y2 (O2, EX) Standard 2-in-1 Gas Detector Picture

Introduction

GT-903 pump-suction compound Gas Detector is suitable for gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical\infrared gas sensor and microcontroller technology, with fast response speed, high measurement accuracy and stability And repeatability is good, the performance of the whole machine is at the domestic (CN) professional level, various parameters can be customized by users, and the operation is simple. Built-in 4000mA high-capacity polymer rechargeable battery, super long standby time; 2.4-inch industrial-grade color screen, good display of various technical indicators and gas concentration values, historical data can be viewed on the screen, with storage, data export, temperature and humidity detection, etc. Function.

Features

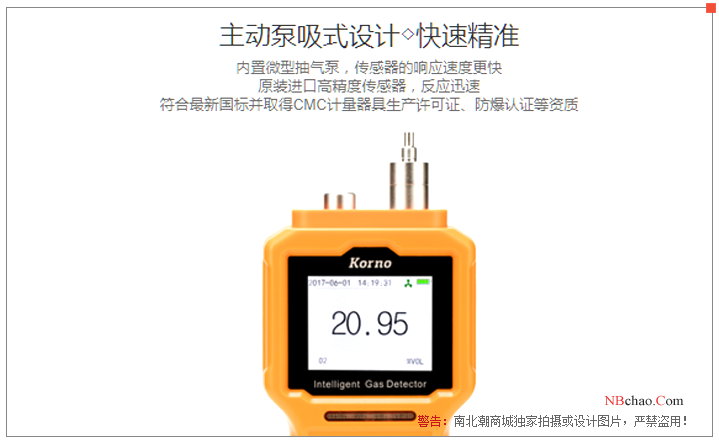

Appearance of Kernuo GT-903-Y2 Standard 2-in-1 Gas Detector

Details of KORNO GT-903-Y2 standard two-in-one Gas Detector

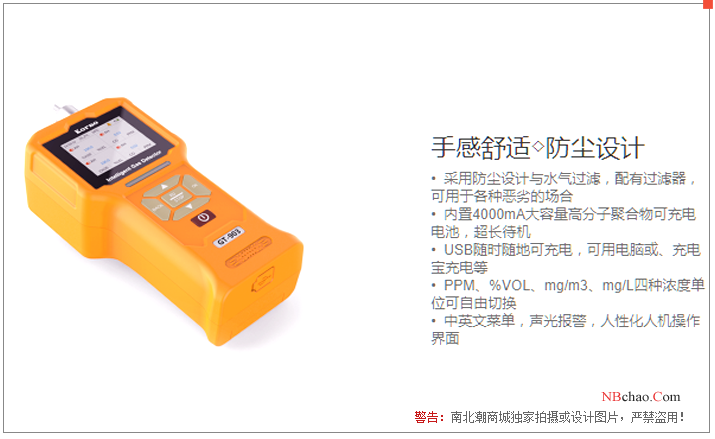

KORNO GT-903-Y2 standard two-in-one Gas Detector display


FAQ
QCan this link computer derivative data?
A Yes, connect the computer with a USB data cable, and install our monitoring software on the computer to export the data.
QDoes the GT-903 Gas detector have a real-time Linear dispersion map?
A Yes, real-time Linear dispersion is used to observe the trend of concentration changes of the detected gas Linear dispersion. When the cursor moves to this column, press the "OK" button to enter the real-time Linear dispersion. Then select the corresponding Sensors through the up and down buttons and press the OK button to view the Linear dispersion diagram. The Linear dispersion on the screen will display the current status.
QCan this gas detector export measurement data?
A Yes, install the data export software, connect the data cable to the computer and the instrument, and then enter the historical data export interface.
QDo you have the Gas detector involved in GB15322.1?
A The GT-903-Y2 (O2, EX) Gas detector will do
