TASI /TASI TA8514 Ultrasonic Thickness Gauge

The measurement range of TASI TA8514 Ultrasonic Thickness Gauge is 1.0~300mm (steel), and the sound speed range is 1000-9999m/s. TA8514 is an Ultrasonic Thickness Gauge with auto calibration zero point function.
Model：
Certificate
Contact
Details SPEC
Similar products

TASI TA8514 Ultrasonic Thickness GaugeSPEC

TASI TA8514 Ultrasonic Thickness GaugeDetails

TASI TA8514 Ultrasonic Thickness GaugePacking list

SKU
NB022799
Measurement Range
1.0~300Mm (steel)
Probe line length
Φ6mm 5MHz ; Φ10mm 5MHz
Lower limit of pipe measurement
φ 15 * 2.0mm (φ 6mm probe): φ 20 * 3.0mm (φ 10mm probe)
measurement error
±(1%H±0.1)mm
Display resolution
0.01mm
storage Capacity
12 groups
Sound speed range
1000~9999m/s
Ambient Operating Temperature
0~40℃

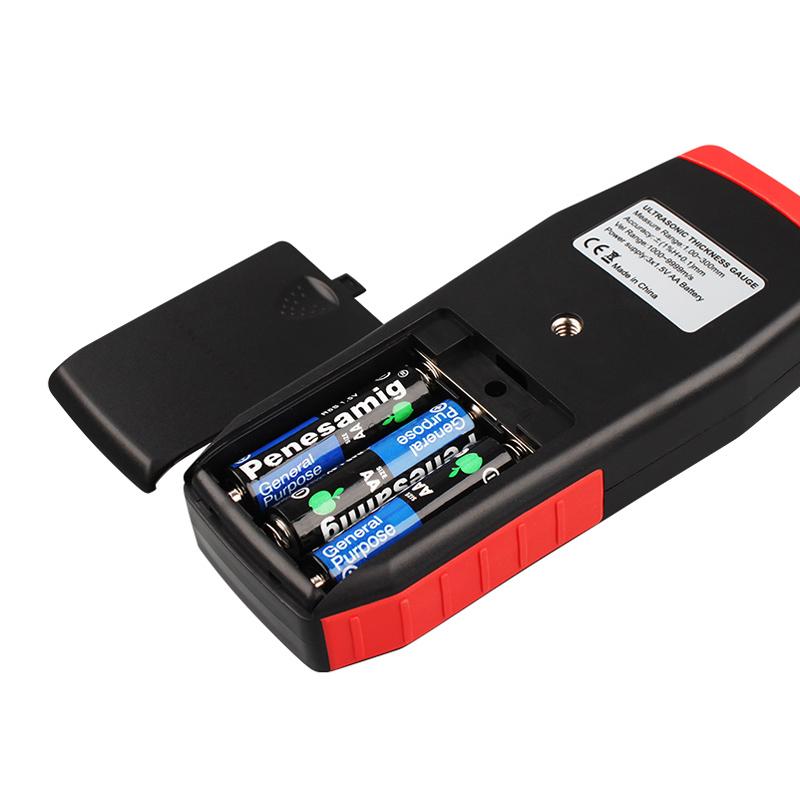

Power Supply
3 AA batteries
Host size
150*80.5*34mm
Weight
About 200g
probe frequency
5MHz
Anti-measurement sound speed function
√
Film thickness alarm
√
Metric to British Conversion
√
Low Voltage indication
√
Automatic shutdown
√
Zero proofreading
automatic
Coupling status hint
√
Backlight function
√
TA8514
Ultrasonic Thickness Gauge

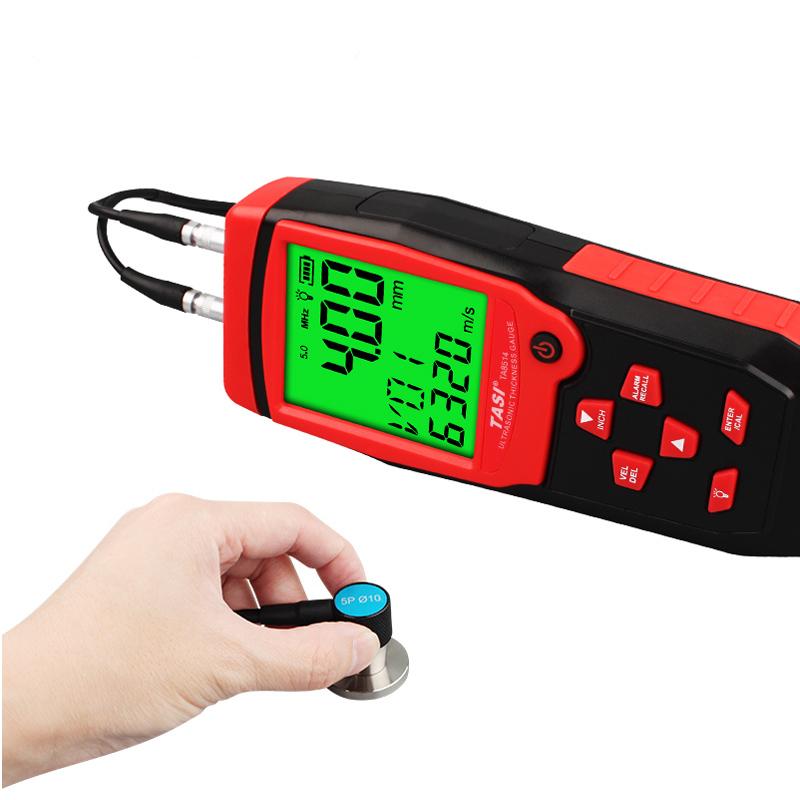

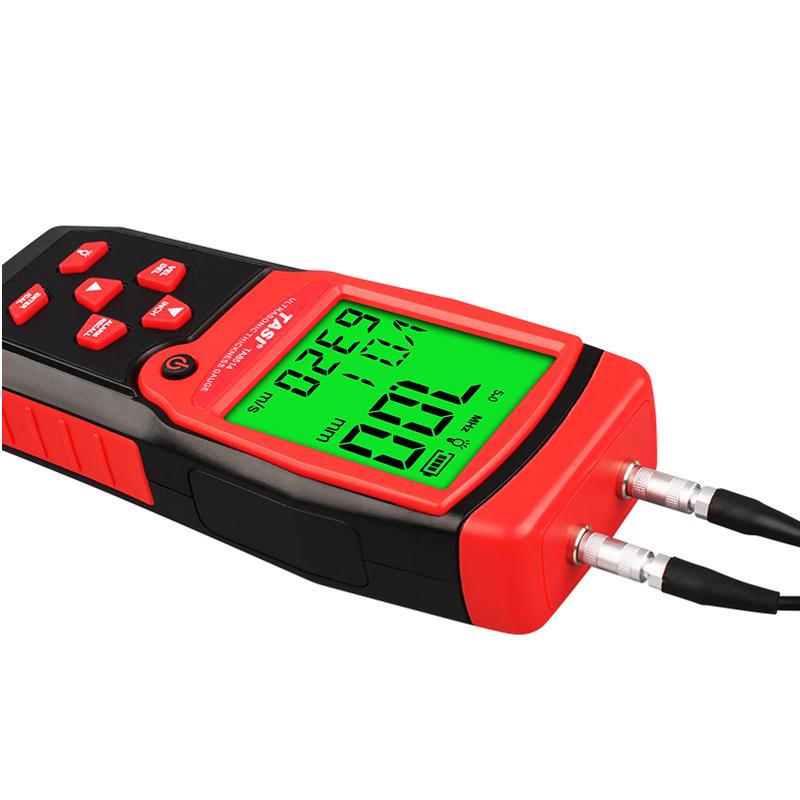

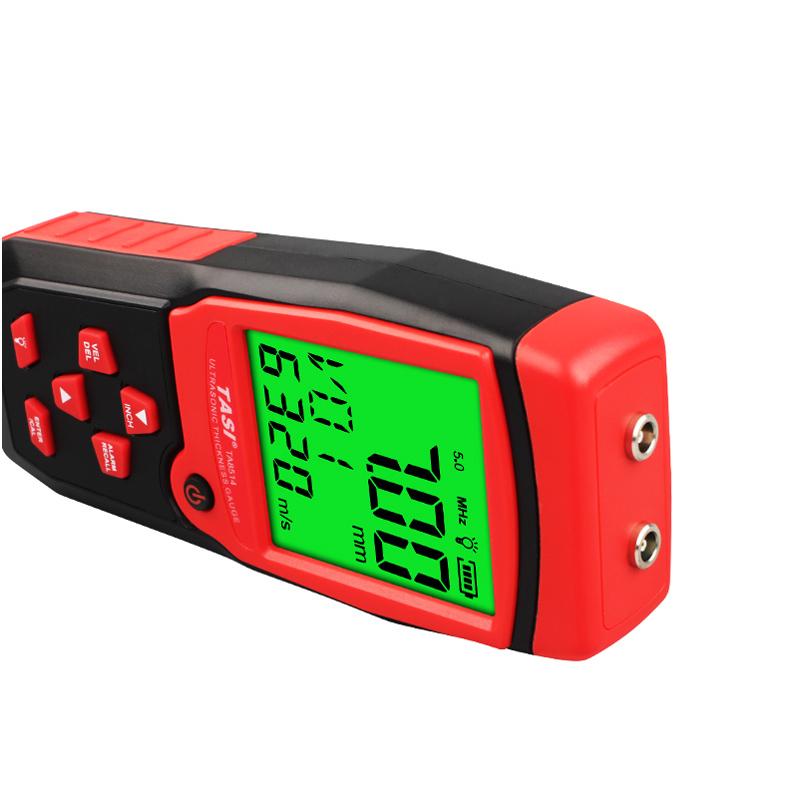

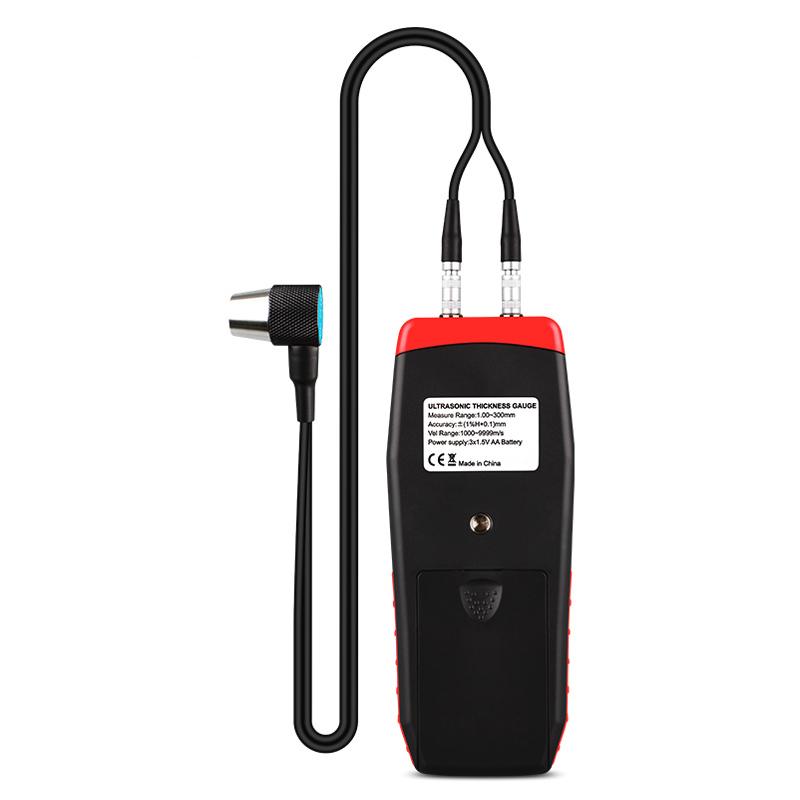

TASI /TASI TA8514 Ultrasonic Thickness Gauge Picture

Introduction

A gauge that measures the thickness of an object. It is commonly used in industrial production to continuously measure the thickness of products (such as steel plates, steel strips, paper, etc.). Among these instruments are radioThickness Gauges that use the penetrating characteristics of α-ray, β-ray, and γ-ray; There are ultrasonic Thickness Gauges that use ultrasonic frequency variations; There is an eddy current Thickness Gauge that uses the eddy current principle; There are also capacitive Thickness Gauges, etc. The use of microwave and laser technology to make Thickness Gauges is still in the development and testing stage.


FAQ
QHow much can this TA8514 Ultrasonic Thickness Gauge measure?
A TA8514 Ultrasonic Thickness Gauge The thinnest can measure the thickness of 1mm.
QDoes the Ultrasonic Thickness Gauge meet the specifications of ZBN 77001?
A Model TA8514 Ultrasonic Thickness Gauge
QWhat probe does the TA8514 Ultrasonic Thickness Gauge come with?
A Hello, Teanse's thickness gauge comes standard with a thickness probe with a diameter of 10mm and 5MHz, and the error is ± (1% H ± 0.1mm).
