TASI /TASI TA8512 Ultrasonic Thickness Gauge

The TASI TA8512 Ultrasonic Thickness Gauge has a measurement range of 1.2-225 mm (steel) and a sound speed range of 1000-9999m/s. The TA8512 is an Ultrasonic Thickness Gauge with auto calibration zero point function.

Model：

TA8512

Certificate

TASI

Contact

Details SPEC

TASI TA8512 Ultrasonic Thickness GaugeSPEC

TASI TA8512 Ultrasonic Thickness GaugeDetails

TASI TA8512 Ultrasonic Thickness GaugePacking list

SKU: NB022801

Measurement Range: 1.2-225 mm (steel)

Probe line length: Φ6mm 5MHz ; Φ10mm 5MHz

Lower limit of pipe measurement: φ 10mm probe: φ 20 * 3mm (steel)

measurement error: ±(1%H±0.1)mm

Display resolution: 0.1mm

storage Capacity: 12 groups

Sound speed range: 1000~9999m/s

Ambient Operating Temperature: 0~40℃

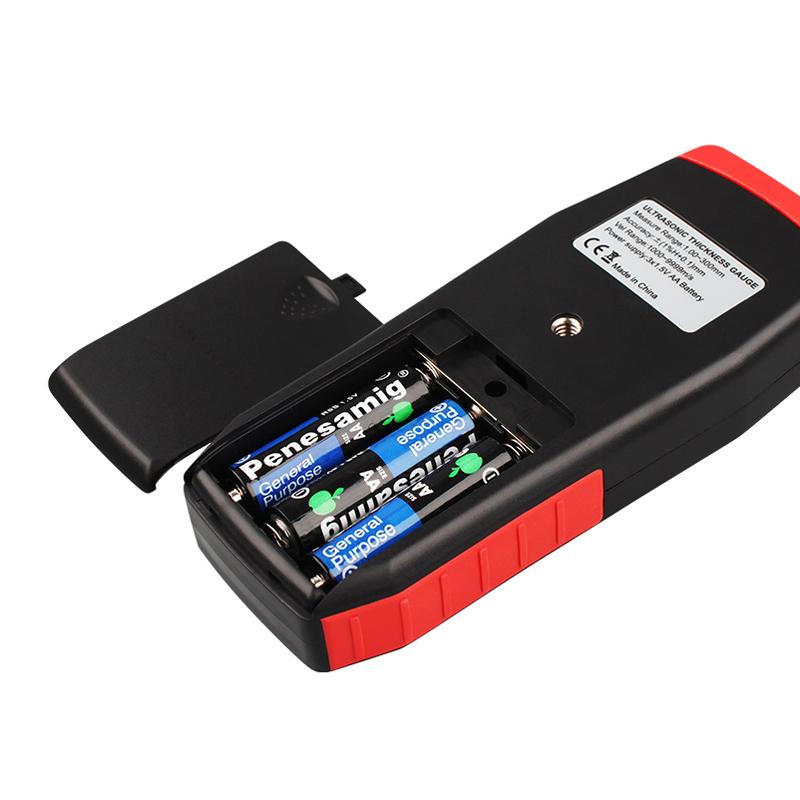

Power Supply: 3 AA batteries

Host size: 150*80.5*34mm

Weight: About 200g

probe frequency: 5MHz

Anti-measurement sound speed function: support

data storage: √

Low Voltage indication: √

Automatic shutdown function: √

TA8512

Ultrasonic Thickness Gauge

Introduction

A gauge that measures the thickness of an object. It is commonly used in industrial production to continuously measure the thickness of products (such as steel plates, steel strips, paper, etc.). Among these instruments are radioThickness Gauges that use the penetrating characteristics of α-ray, β-ray, and γ-ray; There are ultrasonic Thickness Gauges that use ultrasonic frequency variations; There is an eddy current Thickness Gauge that uses the eddy current principle; There are also capacitive Thickness Gauges, etc. The use of microwave and laser technology to make Thickness Gauges is still in the development and testing stage.
