Brand：Moderner
Model：XD-1JQ-F1

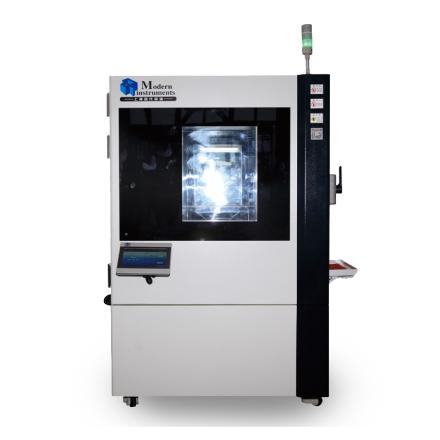

Name：Determination of formaldehyde release climate chamber
Specifications
| Temperature range | 20~35℃ |
| Humidity control range | 40~60% R.H. |
| Temperature Fluctuation | ±1℃ |
| Temperature Uniformity | ≤2℃ |
| Temperature deviation | ≤±2.0℃ |
| Humidity stability | -2%RH，﹢3%RH |
| Humidity Deviation | ≤±3.0%RH |
| wind speed | The wind speed at the geometric center point in the box is 0.1~ 0.5m/s. (Wind speed is adjustable) |
| noise | Less than or equal to 55 decibels (A sound level), there will be no resonance sound between the box door and the equipment door |
| Background concentration | ≤0.006mg/m3 |
| Interior size | 内箱Size1±0.02 m3；W960mm*H1050mm*D1000 mm |
| Temperature Resolution | 0.1℃ |
| Humidity resolution | 0.1%RH |
| air exchange rate | 0.5~ 2 times/hour (adjustable); Flow rate adjustment range should be greater than 0.25~ 2.5m3/h; |
| Flow rate Accuracy | Digital Flow rate meter, Accuracy 0.5; 0~500L/min Glass rotor Flow rate meter, Accuracy not less than 2.5; 0.25~ 2.5m3/h |
| Flow rate display | Standard Glass Rotor Flow rate meter scale display (Flow rate range adjustable) _ Analog digital micro Gas flow rate meter, Touch screen Online Flow rate display (Flow rate range adjustable) |
| Air tightness | When the pressure is over 1000pa, the leakage is less than 10-3 × 1m3/min; the gas flow rate difference between the import and export of the gas is less than 1%; the air pressure monitoring in the box, analog digital display micro pressure Sensors, touch screen online pressure display in the box |
| Stabilization time | Temperature Stabilization time is less than 40min; Humidity Stabilization time is less than 70min, the equipment can run continuously for not less than 30 days; |
Packing list
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/22851/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
