Moderner XD-1JQ-A1-P Determination of formaldehyde release climate chamber Specifications

Search

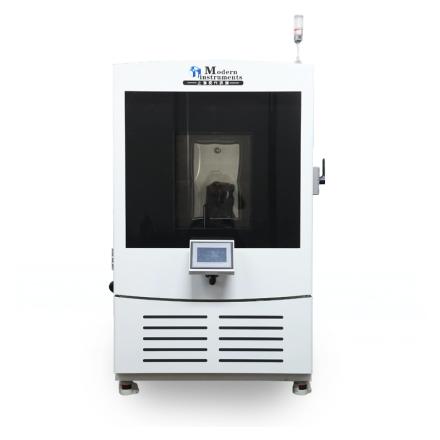

MODERNER XD-1JQ-A1-P 1m3 formaldehyde release determination climate chamber, rapid desorption type

Brand：Moderner

Model：XD-1JQ-A1-P

Name：Determination of formaldehyde release climate chamber

DetailsContact
Specifications
Temperature range 20~35℃
Humidity control range 40~60% R.H.
Temperature Fluctuation ±1℃
Temperature Uniformity ≤2℃
Temperature deviation ≤±2.0℃
Humidity stability -2%RH，﹢3%RH
Humidity Deviation ≤±3.0%RH
wind speed The wind speed at the geometric center point in the box is 0.1~ 0.5m/s. (Wind speed is adjustable)
noise Less than or equal to 55 decibels (A sound level), there will be no resonance sound between the box door and the equipment door
Background concentration ≤0.006mg/m3
Applicable standards GB18580-2017、GB18584-2001、GB18587-2001、GB/T17657-2013、LY/T 1981-2011、JG/T 344-2011、ASTMD 6007-02、EN 717-1 2004、GB 50325-2010、ISO 12460-1.2007
Interior size 内箱Size1±0.02 m3；W960mm*H1050mm*D1000 mm
air exchange rate 0.5~ 2 times/hour (adjustable); Flow rate adjustment range should be greater than 0.25~ 2.5m3/h
Flow rate Accuracy Glass Rotor Flow rate meter, Accuracy not less than 2.5; 0.25~ 2.5m3/h
Flow rate display Standard Glass Rotor Flow rate meter scale display (Flow rate range adjustable), the analog digital Micro Gas flow rate meter, Touch screen Online Flow rate display (Flow rate range adjustable)
Air tightness When the pressure is over 1000pa, the leakage is less than 10-3 × 1m3/min; the gas flow rate difference between the import and export of the gas is less than 1%; the air pressure monitoring in the box, analog digital display micro pressure Sensors, touch screen online pressure display in the box
Stabilization time Temperature Stabilization time is less than 40min; Humidity Stabilization time is less than 70min, the equipment can run continuously for not less than 30 days;
desorption Sprinkable rapid desorption
