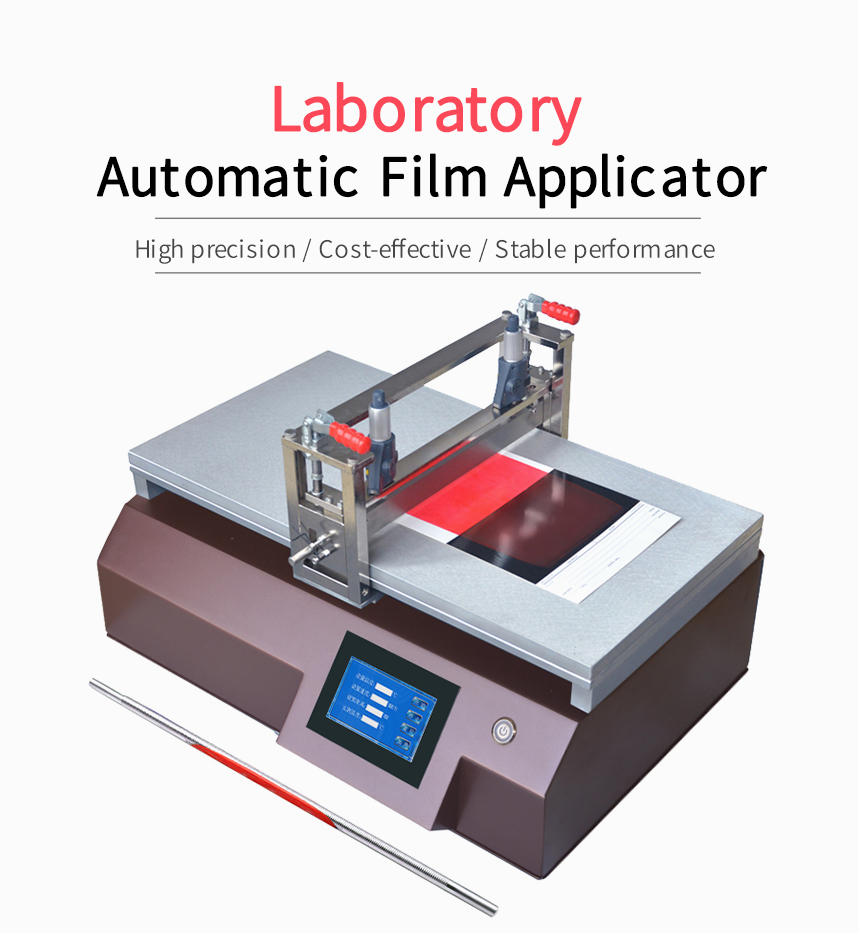

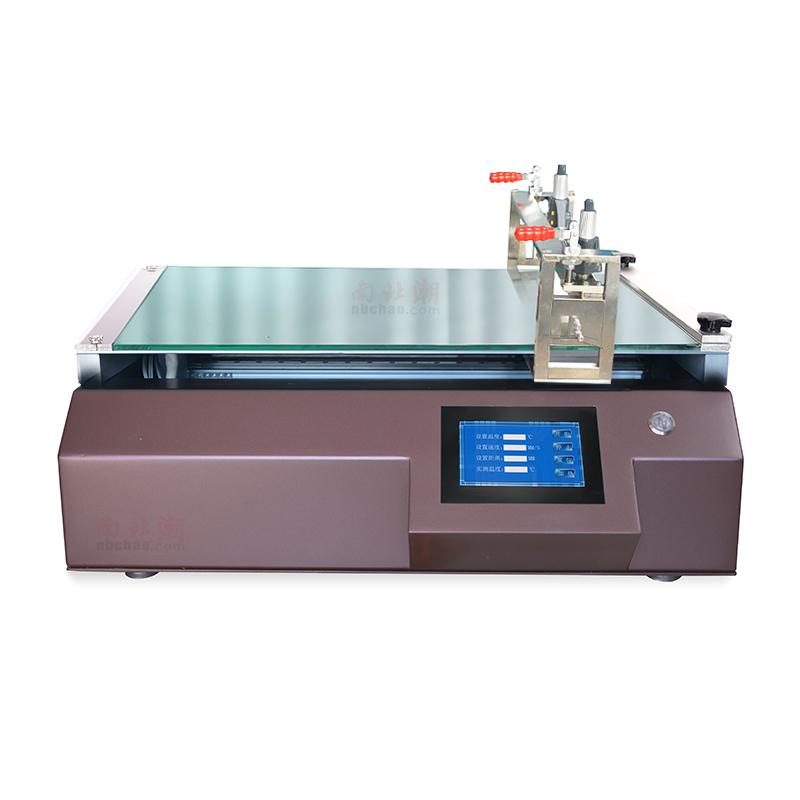

CHINA ZY-TB-B1 drawdown blade Automatic Film Applicator Automatic Film Applicator
Single drawdown blade, suitable for high viscosity glue Spreader, adjustable film thickness range of 0~10mm, accuracy of +/- 0.001mm; touch screen control operation, automatic Spreader, reduce manual operation error.
Model：
ZY-TB-B1
zy
Manufacturer authorization
Similar products
zy ZY-TB-B1 Automatic Film ApplicatorSPEC
zy ZY-TB-B1 Automatic Film ApplicatorDetails
zy ZY-TB-B1 Automatic Film ApplicatorPacking list
- SKU
- NB022855
- Coating method
- Drawdown blade
- Coating size
- 300*400mm
- Application width
- 300mm
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Spreader thickness range
- 0~10mm
- Key control mode
- Touch screen control
- Regulator display Accuracy
- ±0.001mm
- Display
- digital
- Total power consumption
- 60W
- Host Power
- 220V 50Hz
- Dimensions
- 690*410*520mm
- Machine Weight
- 45Kg
- Optional
- Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- Customizable function

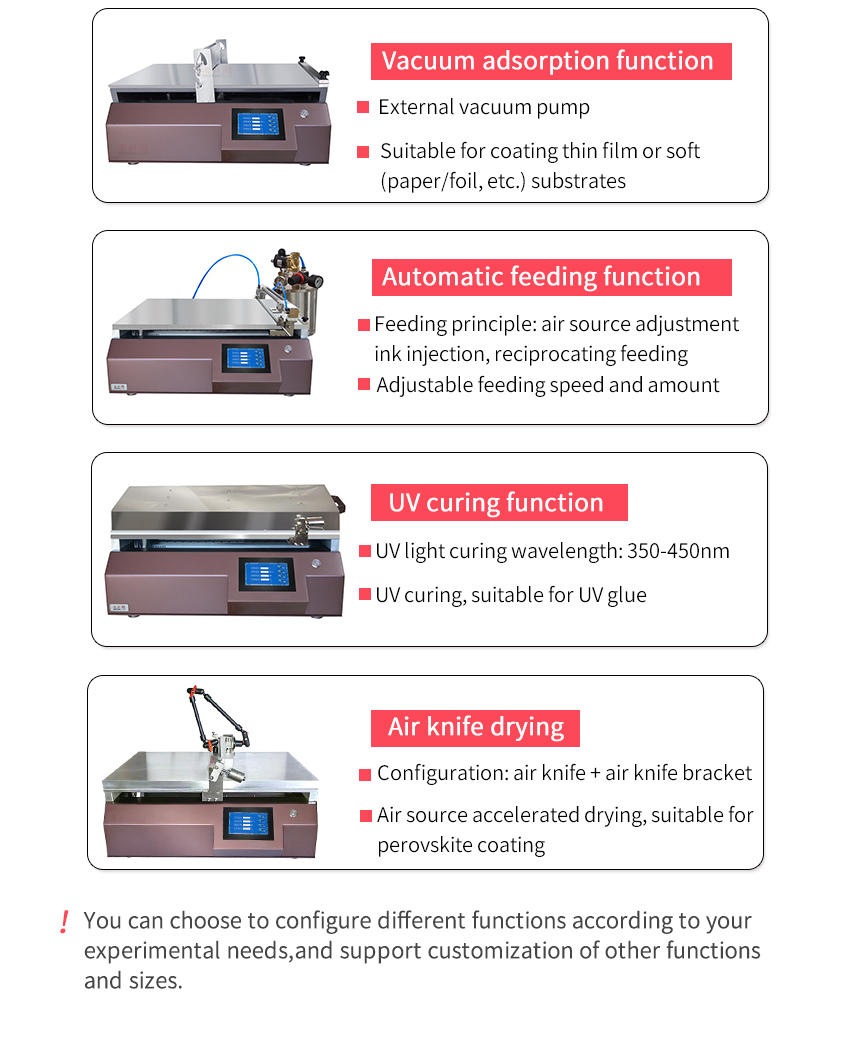

- Jet system device, UV solid-containing device, automatic inking system
ZY-TB-B1
Automatic Film Applicator
Single drawdown blade, suitable for high viscosity glue Spreader, adjustable film thickness range of 0~10mm, accuracy of +/- 0.001mm; touch screen control operation, automatic Spreader, reduce manual operation error.
The ZY-TB-B experimental small coating testing machine all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.
Since the main factors that affect the coating film are the coating speed and the pressure exerted on the Film Applicator, the coatings applied manually are often inconsistent, especially the differences between different people are even greater. This makes it difficult to compare test results between samples. Our company's automatic Film Applicator is carefully designed to allow operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating films.
Optional
|
|
|
FAQ
QViscous polyurethane is scraped on PET, can this machine be used?
A
Yes, PET film hand scraping flat difficult to control, the use of vacuum adsorption to fix the film, low viscosity fluid bar with higher prepative accuracy, high viscosity using doctor blade Moulding with Film Applicator can achieve the effect.
QCan the small scraper coater be used to scrape the polyester film?
A
Hello, you can't scrape with a scraper, but use a wire rod. The scraper will scratch the film.
QLithium battery diaphragm Spreader experiment with this scraper type experimental coater?
A
Hello, this one does not have a heating function. Lithium battery Spreaders generally need to have a heating function.
QWhat is the allowable viscosity of the Spreader material for this coater?
A
The allowable range of film viscosity is generally determined by the Moulding device. The viscosity of the wire rod generally does not exceed 1000cp, and the doctor blade has no limit. But the accuracy of the wire rod is higher. In addition, due to the heating function, the viscosity of some materials decreases with the increase of temperature, so it is necessary to comprehensively consider the requirements of materials, substrates, film thickness and preparatory purposes. For details, please consult NBchao customer service.
QCan the small doctor blade coater send samples to you to help test the effect?
A
Hello, OK.
QWhat should I do if the film prepared on the experimental automatic film machine is difficult to peel off from the Glass substrate?
A
Hello, there are two solutions: first, the baseplate is replaced by PTFE material, PTFE has release properties; second, Teflon solution can be coated on the Glass substrate, and then film liquid after drying.
QIs this doctor blade Lab Film Applicator ASTMD823 compliant?
A
The doctor blade Lab Film Applicator is suitable for ASTMD823, please consult customer service for detailed application definition
QWhich Spreader testing machine in Zhongyi is equipped with a Spreader scraper? No heating vacuum is required.
A
Hello, you can take a look at Zhongyi's ZY-TB-B1 scraper type Spreader testing machine, which can meet your needs.
