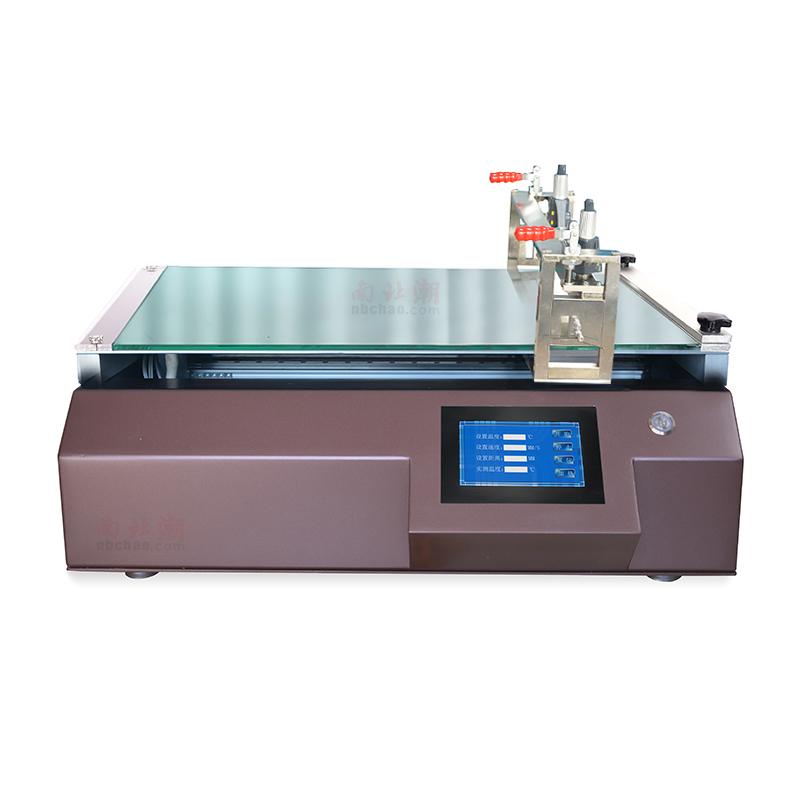

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator

ZY-TB-B2 Automatic Film Applicator is a drawdown blade and bar integrated Automatic Film Applicator, the effective application width is 300mm, ZY-TB-B2 coating bar machine/Coater adopts digital display touch screen control, display accuracy is +/- 0.001mm, Coating speed is adjustable in the range of 1~ 140mm/s, is an experimental coater.
Model：
Contact
Details SPEC VIDEO CAT
Similar products

zy ZY-TB-B2 Automatic Film ApplicatorSPEC

zy ZY-TB-B2 Automatic Film ApplicatorDetails

zy ZY-TB-B2 Automatic Film ApplicatorPacking list

SKU
NB022856
Coating method
Wire rod/drawdown blade
Coating size
300*400mm
Application width
300mm
Coating speed
5~ 180Mm/s (< 5mm/s can be customized)
Spreader thickness range
0~10mm
Spreader Accuracy
0.003mm
Key control mode
Touch screen control
Regulator display Accuracy
±0.001mm
Display
digital
Total power consumption
60W
Host Power
220V 50Hz
Dimensions
690*410*520mm
Machine Weight
50Kg
Optional
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader)
Customizable function
Jet system device, UV solid-containing device, automatic inking system
ZY-TB-B2
Automatic Film Applicator
CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Picture

The ZY-TB-B experimental small coating testing machine all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.


Since the main factors that affect the coating film are the coating speed and the pressure exerted on the Film Applicator, the coatings applied manually are often inconsistent, especially the differences between different people are even greater. This makes it difficult to compare test results between samples. Our company's automatic Film Applicator is carefully designed to allow operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating films.

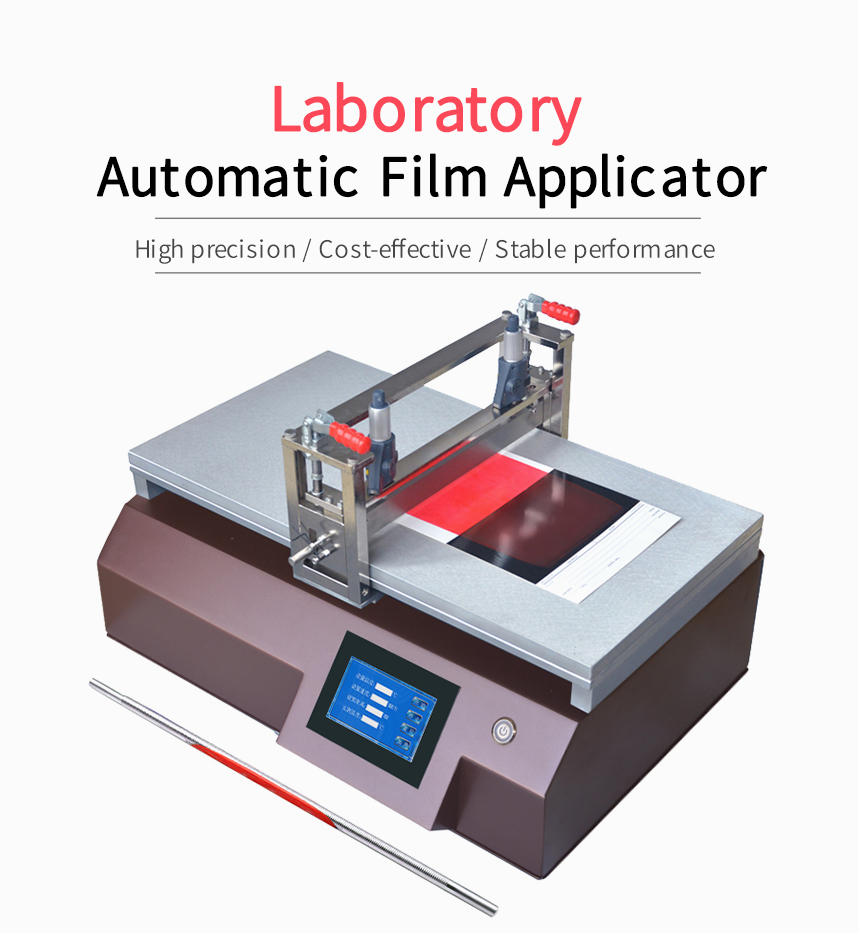

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 1

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 2

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 3

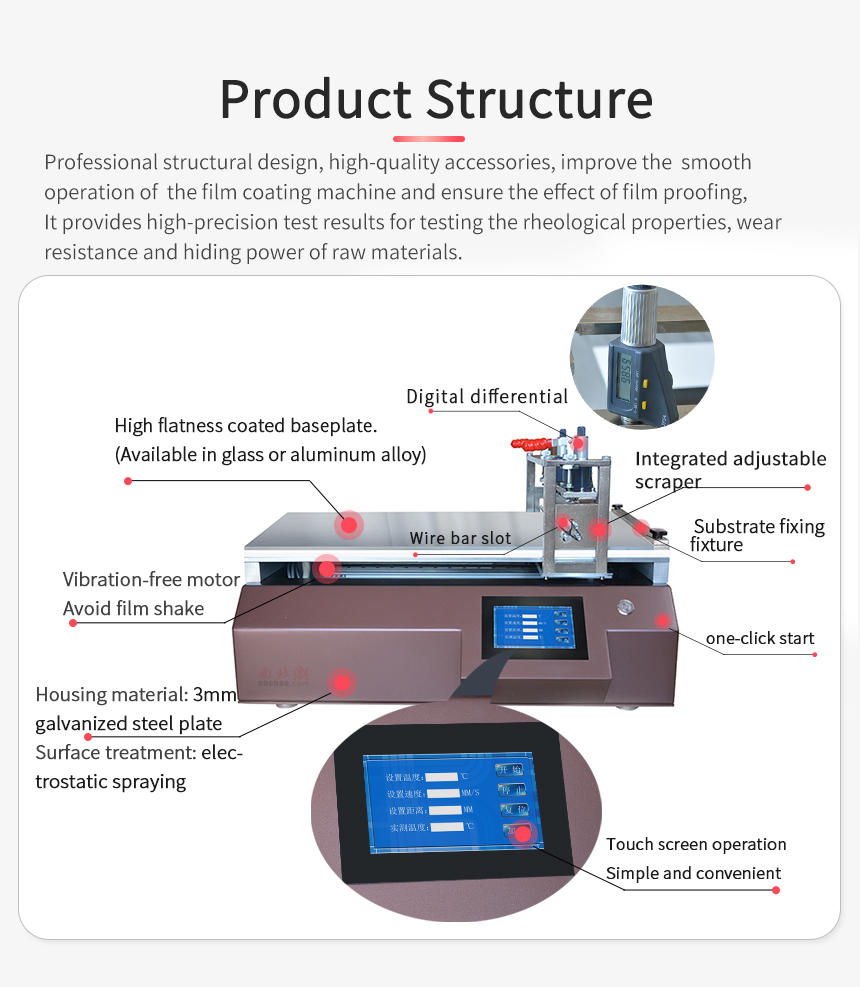

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 4

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 5

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 6

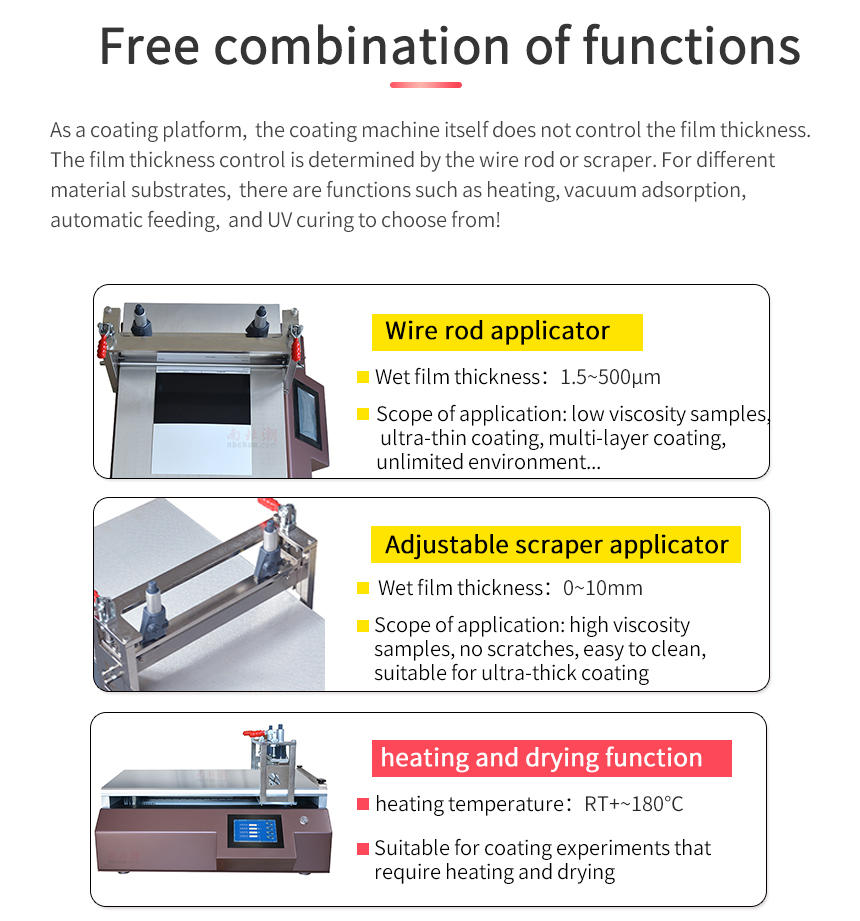

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 7

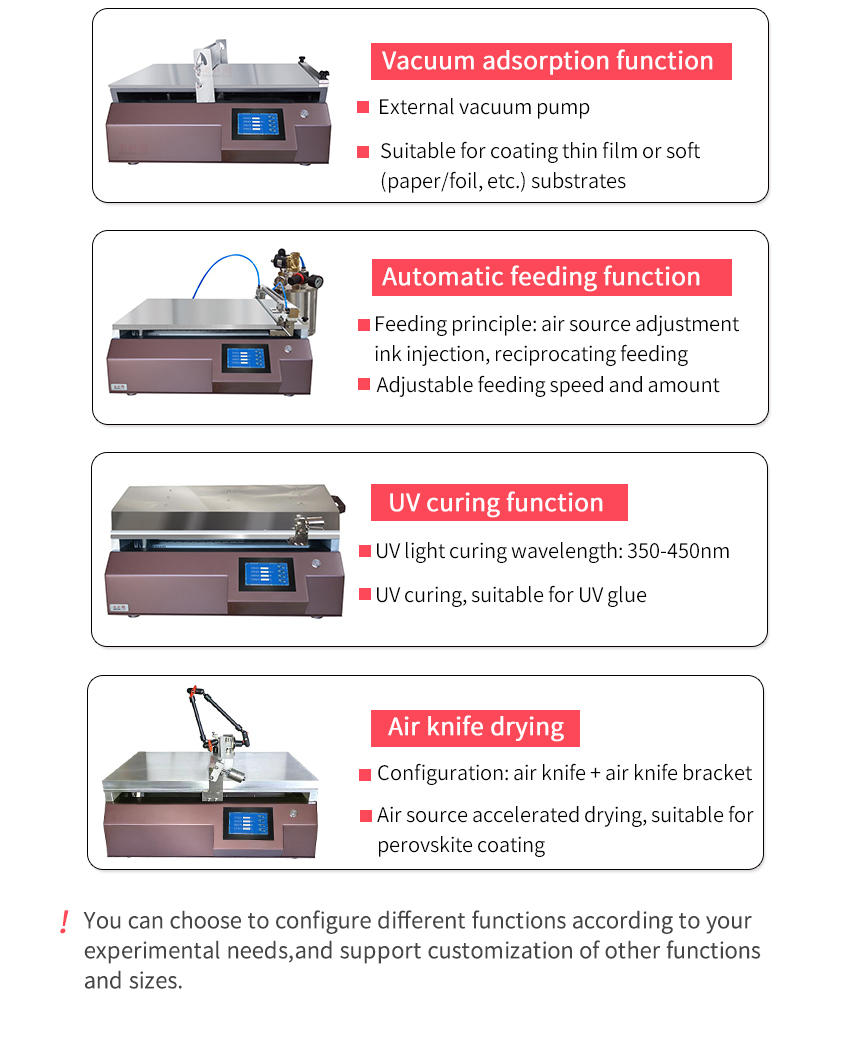

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 8

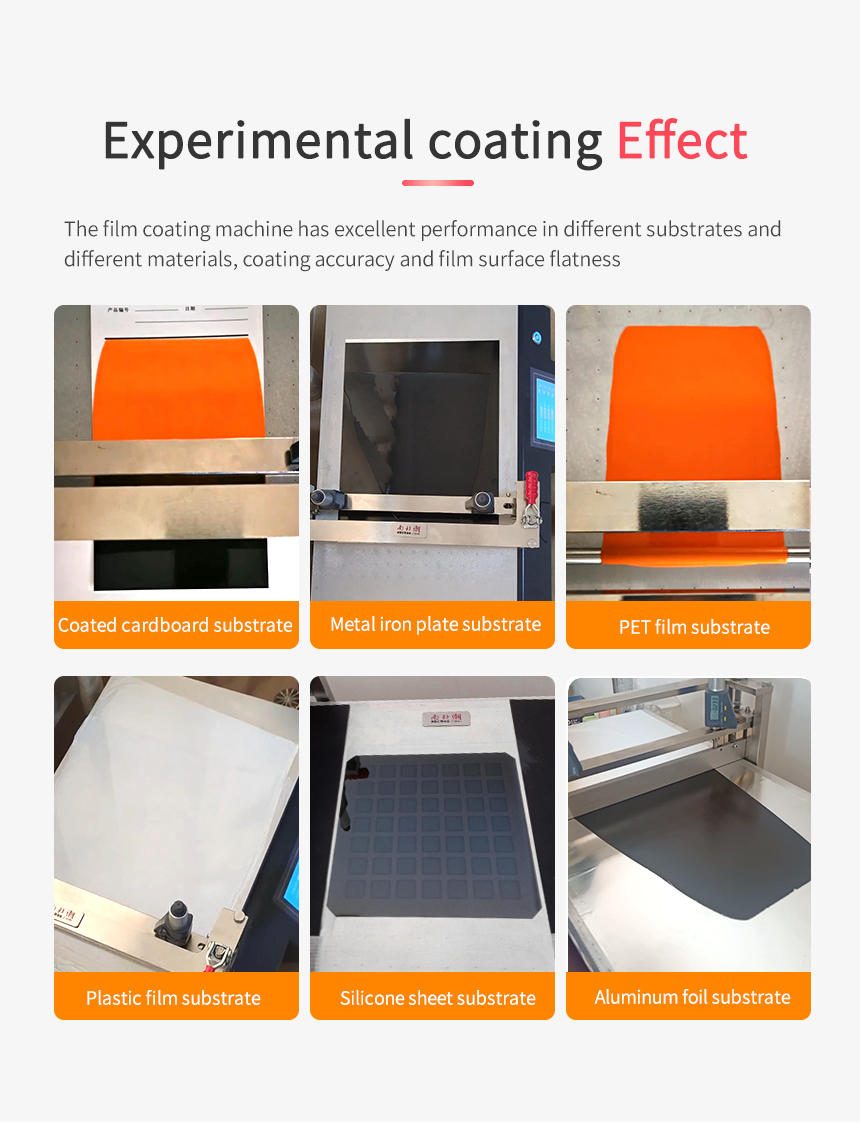

CHINA ZY-TB-B2 metering rod & drawdown blade Automatic Film Applicator Figure 9


Optional

Coating wire bar applicator

Coating film test paper

Drawdown Plate

FAQ
QIs this Lab Film Applicator GB/T9756 compliant?
A The Lab Film Applicator is suitable for GB/T9756, please consult customer service for detailed application definition
QWhat is the size of the Spreader base of the ZY-TB-B2 Spreader testing machine?
A Hello, the Spreader base size of this Film Applicator is 300 * 400mm.
QWhat is the Spreader accuracy and rate of this Zhongyi Spreader testing machine? Our laboratory needs to see if it fits.
A Hello, the Spreader accuracy of the ZY-TB-B2 metering rod & doctor blade integrated Spreader testing machine is ± 0.003mm, and the Spreader speed is 1~ 140mm/s.
