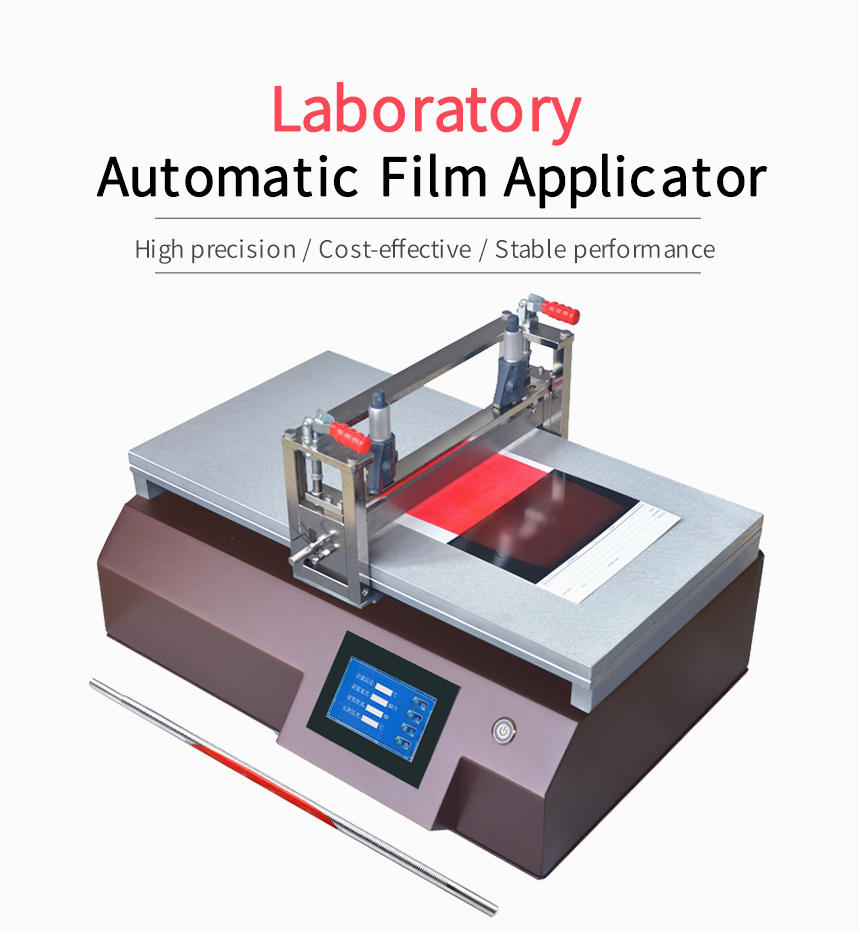

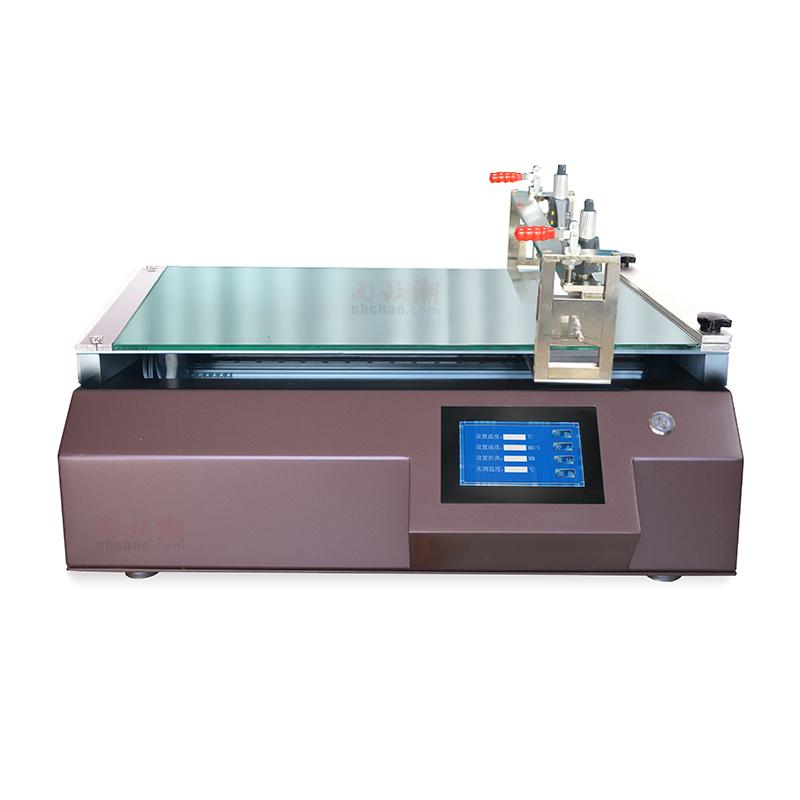

CHINA ZY-TB-B4 metering rod & drawdown blade Automatic Film Applicator with heating
ZY-TB-B4
-
HUINUO TM3100 Wire Rod & Drawdown Blade Automatic Film Applicator with Heated Bed$ 3024.00SE -
TM3100Pro High-precision Wire Rod & Drawdown Blade Automatic Coating Machine with Heated Bed$ 3180.00SE -
China Heating Wire Drawdown blade Automatic Scraping Machine TBJ-B4-XB with imported bar Coating Machine$ 2636.00SE -
China TBJ-B4 drawdown Bar & blade Integrated Lab Film Applicator with heating, lithium battery Film Coater$ 2092.00SE
zy ZY-TB-B4 Automatic Film ApplicatorSPEC
zy ZY-TB-B4 Automatic Film ApplicatorDetails
zy ZY-TB-B4 Automatic Film ApplicatorPacking list
- SKU
- NB022857
- Coating method
- Wire rod/drawdown blade
- Coating size
- 300*400mm
- Application width
- 300mm
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Spreader thickness range
- 0~10mm
- Spreader Accuracy
- 0.003mm
- Heating mode
- Aluminum Panel
- Heating mode
- resistance wire
- Heating temperature range
- RT+~200℃
- Temperature display Accuracy
- ±2℃
- Heating power
- 2000W
- Key control mode
- Touch screen control
- Regulator display Accuracy
- ±0.001mm
- Display
- digital
- Total power consumption
- 2060W
- Host Power
- 220V 50Hz
- Dimensions
- 690*410*520mm
- Machine Weight
- 55Kg
- Drawdown blade adjustable Graduation
- 1 micron
- Platform size
- 32x62.2cm
- Optional

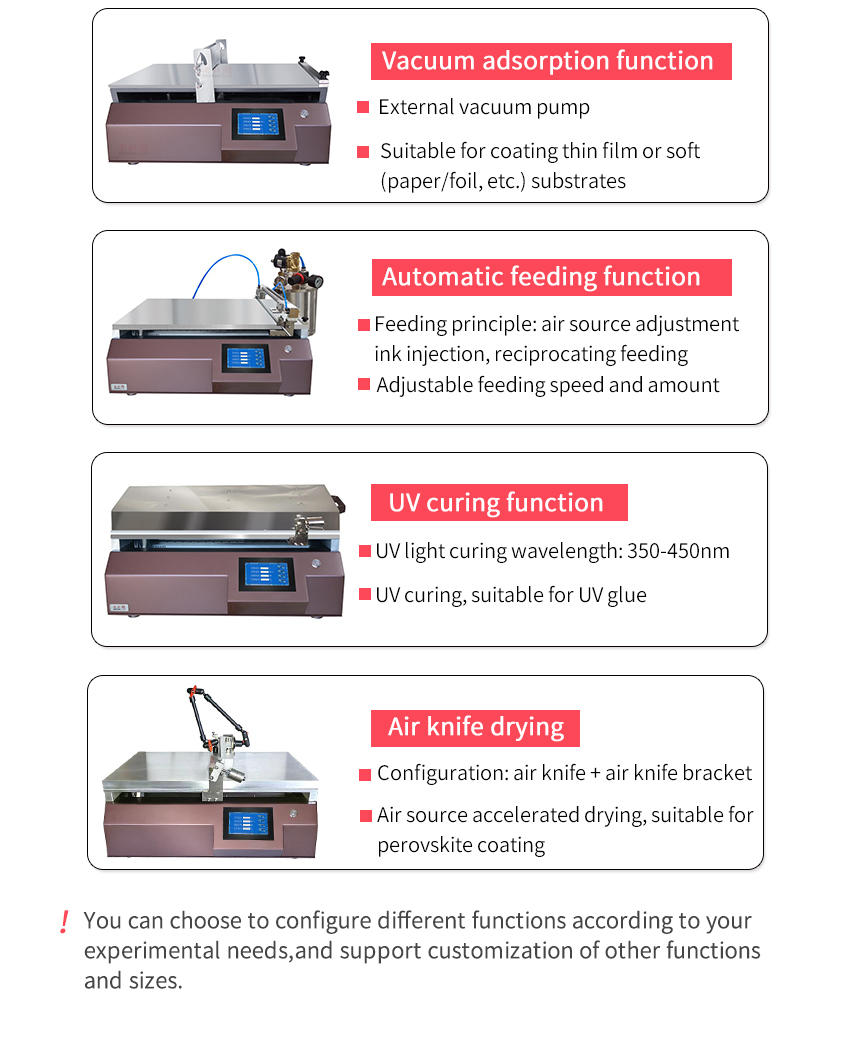

- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader)
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
The ZY-TB-B experimental small coating testing machine all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.
Since the main factors that affect the coating film are the coating speed and the pressure exerted on the Film Applicator, the coatings applied manually are often inconsistent, especially the differences between different people are even greater. This makes it difficult to compare test results between samples. Our company's automatic Film Applicator is carefully designed to allow operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating films.
