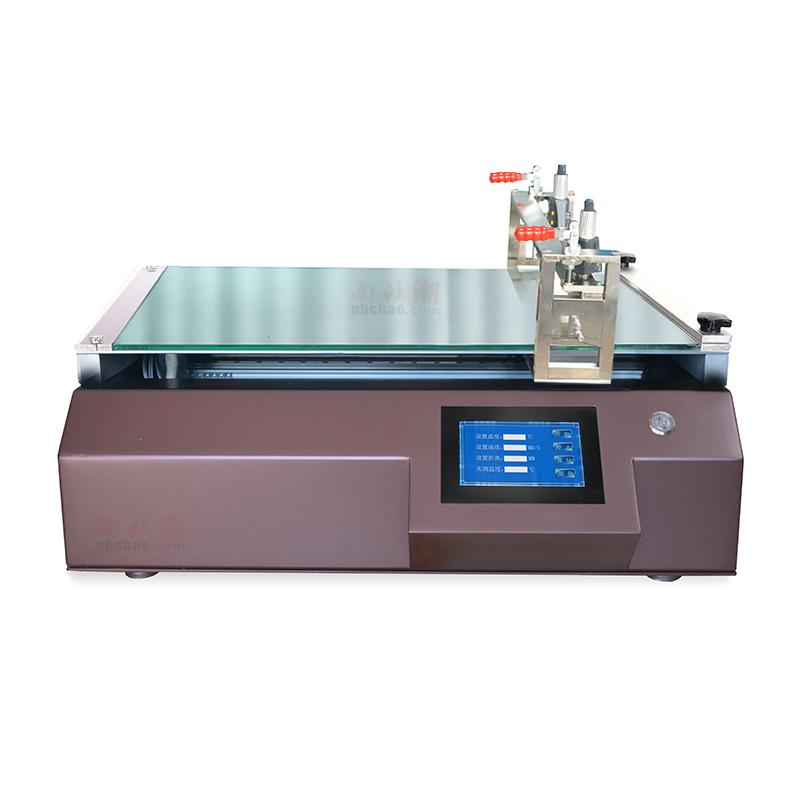

CHINA ZY-TB-X1 Vacuum adsorption drawdown blade Automatic Film Applicator
ZY-TB-X1
-
HuiNuo TM2200 Drawdown blade Vacuum chuck Lab Film Applicator Flat coater$ 3802.00SE -
MODERNER AFA-V Miniature Automatic Film Applicator Automatic Film Applicator -
China TBJ-X1 Vacuum chuck Drawdown blade Film Applicator Lithium battery small coater$ 2791.00SE -
China TBJ-X1 Vacuum chuck Drawdown blade Lab Film Applicator Size 330 * 400mm$ 2962.00SE -
MODERNER FAA-V Miniature Automatic Film Applicator with External Vacuumpump
zy ZY-TB-X1 Automatic Film ApplicatorSPEC
zy ZY-TB-X1 Automatic Film ApplicatorDetails
zy ZY-TB-X1 Automatic Film ApplicatorPacking list
- SKU
- NB022859
- Coating method
- Drawdown blade
- Coating size
- 300*400mm
- Application width
- 300mm
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Spreader thickness range
- 0~10mm
- Vacuum pump configuration
- external
- Vacuum Area
- 300 * 400Mm (can be customized)
- Key control mode
- Touch screen control
- Regulator display Accuracy
- ±0.001mm
- Display
- digital
- Total power consumption
- 60W
- Host Power
- 220V 50Hz
- Dimensions
- 690*410*520mm
- Machine Weight
- 65Kg

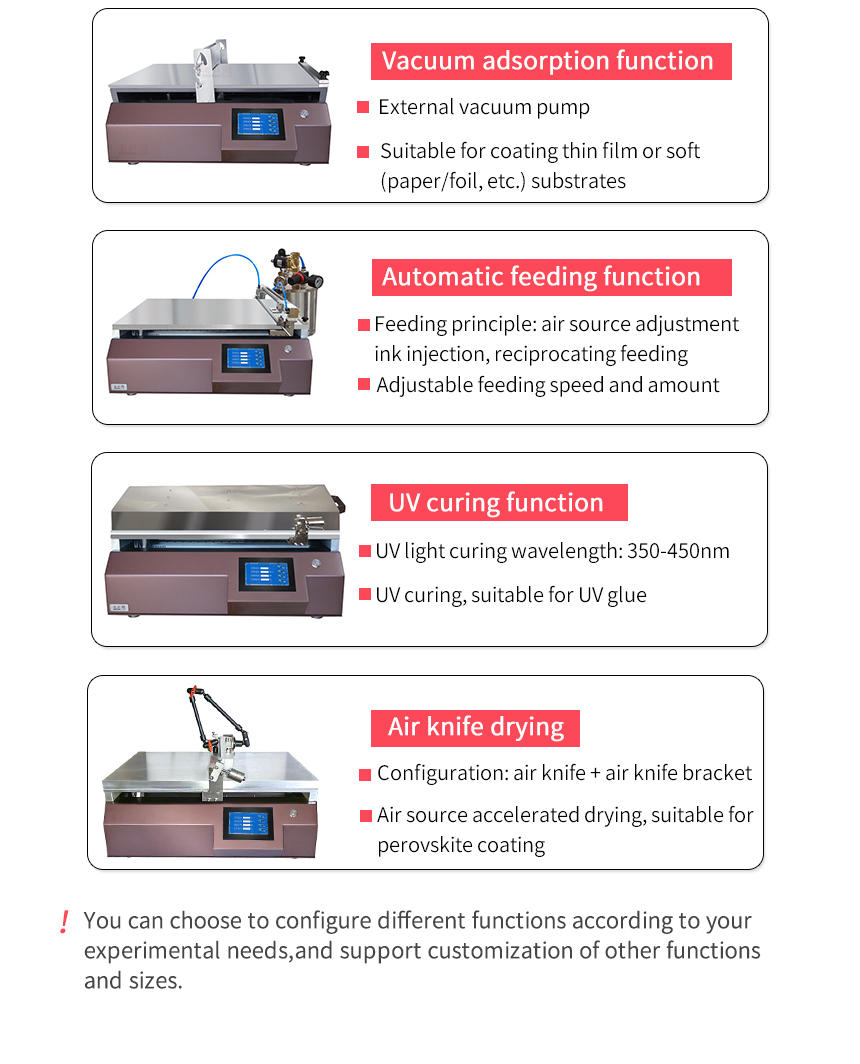

- Optional
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader)
- Customizable function
- Jet system device, UV solid-containing device, automatic inking system
The ZY-TB-X experimental small coating testing machine all uses imported accessories and is very affordable. It has been favored by many multinational enterprise R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.
Since the main factors that affect the coating film are the coating speed and the pressure exerted on the Film Applicator, the coatings applied manually are often inconsistent, especially the differences between different people are even greater. This makes it difficult to compare test results between samples. Our company's automatic Film Applicator is carefully designed to allow operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating films.
