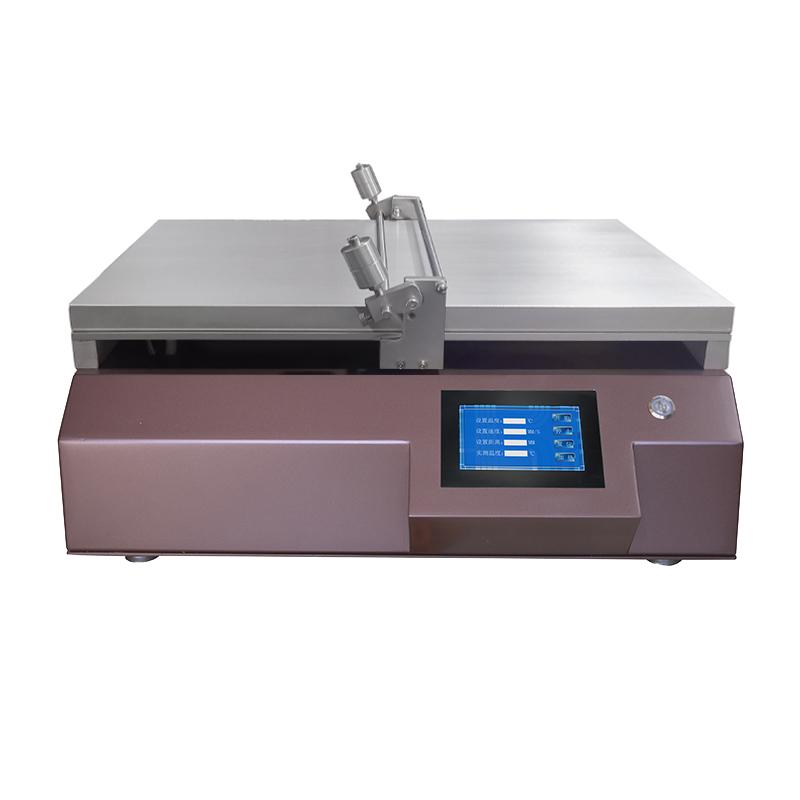

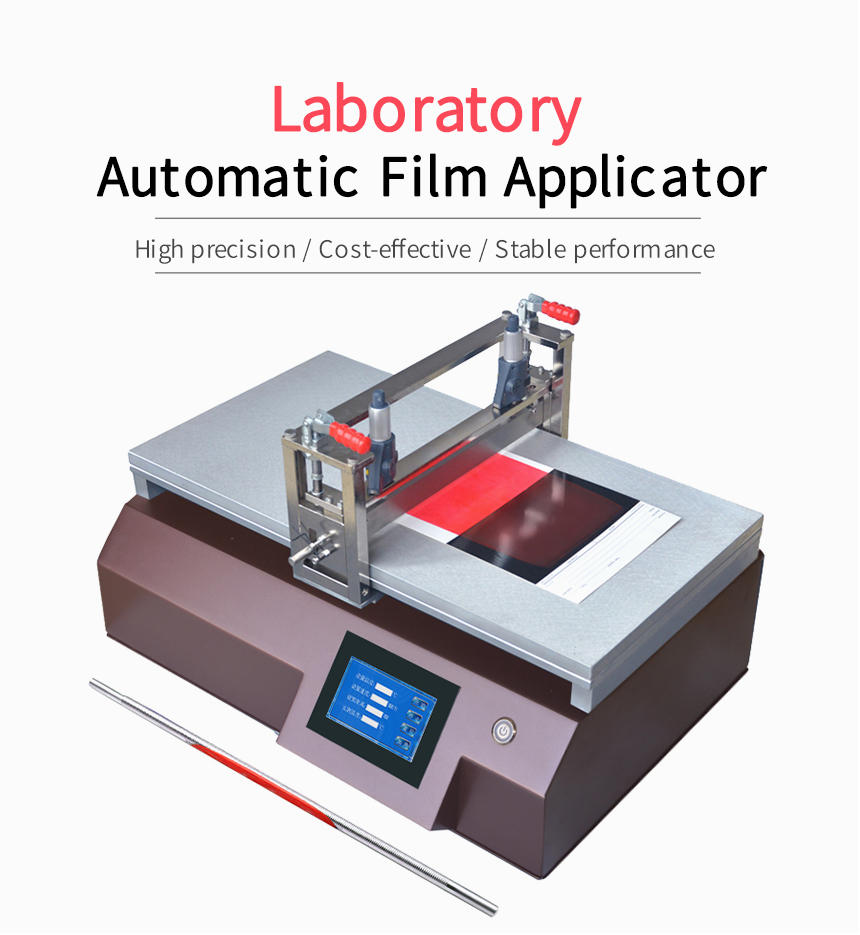

CHINA ZY-TB-A3 Wire rod Vacuum adsorption Automatic Film Applicator
ZY-TB-A3
-
China bar Vacuum chuck coater TBJ-A3-XB with imported bar$ 2403.00SE -
China TBJ-G bar Lab Film Applicator Touch + Vacuum chuck Perovskite Solar Cell Moulding$ 2403.00SE -
HUINUO TM1200 Wire Bar film Coater with Vacuum Table$ 2713.00SE -
China TBJ-B3 Heating Drawdown blade Lab Film Applicator Automatic Film Applicator$ 2247.00SE -
China TBJ-A3 bar Vacuum chuck Lab Film Applicator Electric coater$ 2014.00SE
zy ZY-TB-A3 Automatic Film ApplicatorSPEC
zy ZY-TB-A3 Automatic Film ApplicatorDetails
zy ZY-TB-A3 Automatic Film ApplicatorPacking list
- SKU
- NB022866
- Coating method
- Wire Rod Coating
- Coating size
- 300*400mm
- Application width
- 300mm
- Coating speed
- 5~ 180Mm/s (< 5mm/s can be customized)
- Spreader thickness range
- According to different rod specifications
- Temperature display Accuracy
- ±2℃
- Heating power
- 2000W
- Vacuum pump configuration
- external
- Vacuum Area
- 300 * 400Mm (can be customized)
- Vacuum aperture
- Φ1.2mm
- Key control mode
- Touch screen control
- Regulator display Accuracy
- ±0.001mm
- Display
- digital
- Total power consumption
- 2060W
- Host Power
- 220V 50Hz
- Dimensions
- 690*410*520mm
- Machine Weight
- 65Kg
- Optional
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader)
- Customizable function

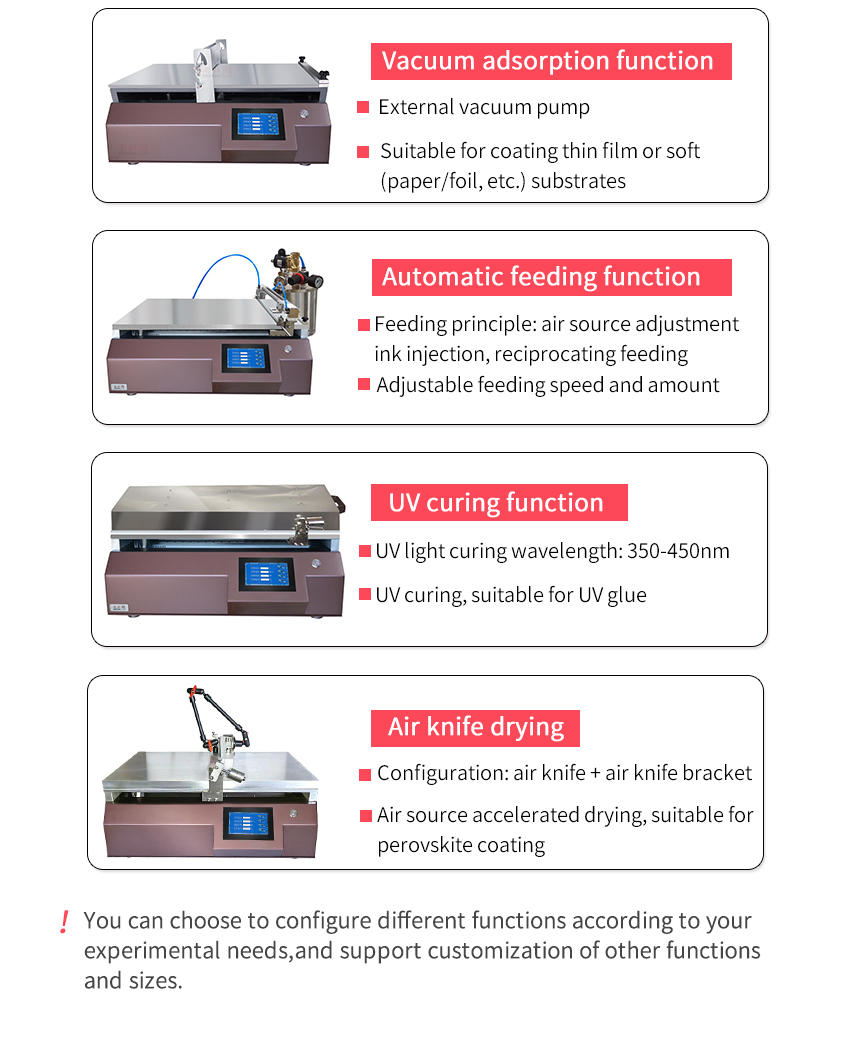

- Jet system device, UV solid-containing device, automatic inking system
- speed control
- Infinitely variable speed
The Touch Laboratory ZY-TB wire rod coating testing machine is a newly upgraded product that is carefully designed for coating precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless films. After testing samples, this equipment has been favored by many familiar enterprises, R&D institutions, and colleges and universities since it was put into the market.
Since the main factors that affect the coating film are the coating speed and the pressure exerted on the Film Applicator, the coatings applied manually are often inconsistent, especially the differences between different people are even greater, which gives Comparing test results between samples presents difficulties. Our company's automatic Film Applicator allows operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating films.
