CHINA ZY-RF heat sealing Tester, heat sealing temperature, heat sealing time, heat sealing pressure

SE
Heat sealing temperature RT +~ 300 ℃, heat sealing time 0.01s~ 99.9s, heat sealing pressure 0.05~ 0.7MPa, heat sealing area 300 * 10mm; 150 * 10mm, double heating, heat sealing pressure ≤ 0.7MPa
$1361.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT
Similar products

zy ZY-RF Heat seal TesterSPEC

zy ZY-RF Heat seal TesterDetails

zy ZY-RF Heat seal TesterPacking list

SKU
NB022874
Heat sealing temperature
RT+~300°C
Heat sealing time
0.01s~99.9s
Heat sealing pressure
0.05~0.7MPa
Heat sealing area
300 * 10mm; 150 * 10mm; optional, can be customized
Heating method
Double heating
Heat sealing pressure
≤0.7MPa
Dimensions
380*215*355mm
Power
AC 220V 50Hz
Weight
30kg
According to standard
QB / T 2358 (ZBY 28004) 、 ASTM F2029 、 YBB 00122003
temperature control Accuracy
±0.1℃
ZY-RF
Heat seal Tester
Heat sealing temperature RT +~ 300 ℃, heat sealing time 0.01s~ 99.9s, heat sealing pressure 0.05~ 0.7MPa, heat sealing area 300 * 10mm; 150 * 10mm, double heating, heat sealing pressure ≤ 0.7MPa

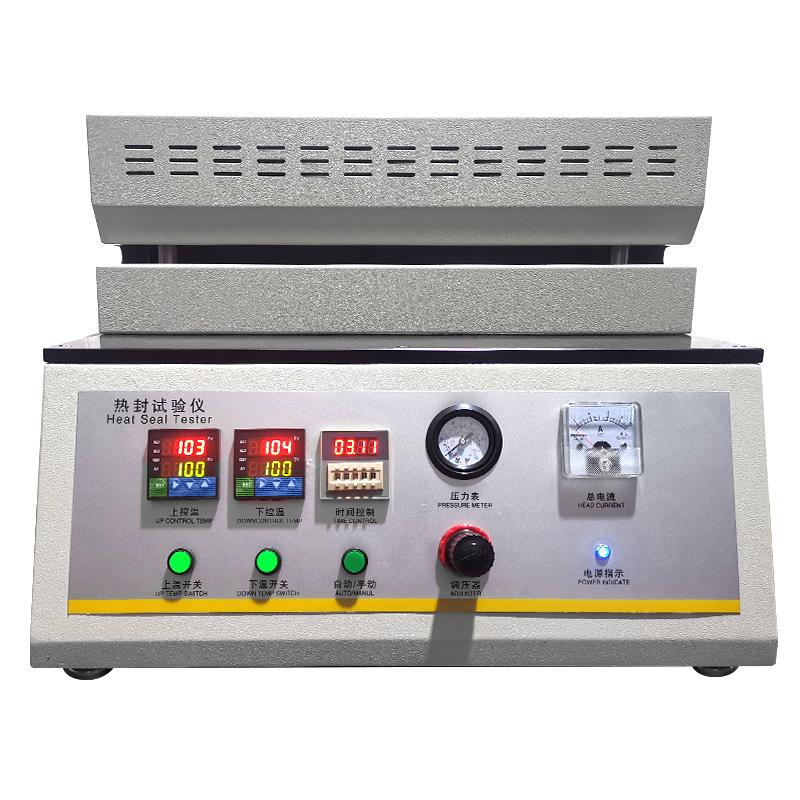

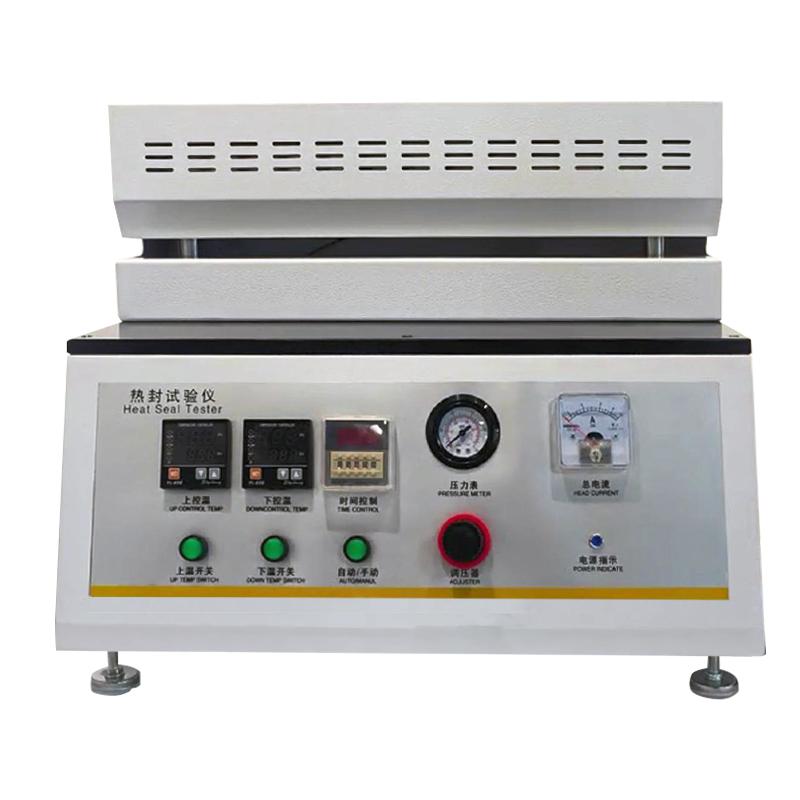

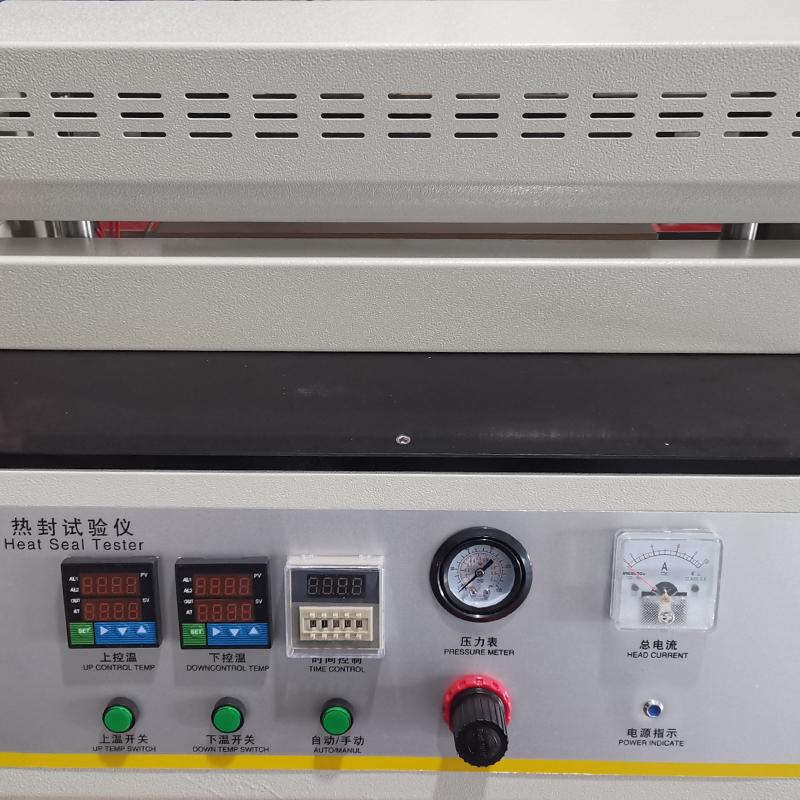

CHINA ZY-RF heat sealing Tester, heat sealing temperature, heat sealing time, heat sealing pressure Picture

a brief introdction

This product adopts heat-sealing method to determine the heat-sealing temperature, heat-sealing time, heat-sealing pressure and other parameters of plastic film base material, flexible packaging composite film, coated paper and other heat-sealing composite films. Heat-sealing materials with different melting points, thermal stability, fluidity and thickness will show different heat-sealing properties, and their sealing process parameters may vary greatly. Through the standardized design and standardized operation of the heat seal Tester, accurate heat seal test indicators can be obtained.

Features

1. Digital PID temperature control, automatic timing

2. Manual and pedal two test start modes

3. Independent temperature control of the upper and lower heat sealing heads

4. Aluminum potting uniform temperature heating tube

5. Quick plug-in heating tube power connector

6. Anti-scald safety design



FAQ
QWhat material is on the heat cover of the heat sealing instrument?
A Put high temperature tape on the aluminum alloy Lower heating knife layered silicone pad
QCan the upper and lower temperatures be controlled separately?
A Yes, the temperature is controlled up and down separately.
QWhat metal material is the interface of the heat sealing machine?
A Aluminum alloy with a layer of high temperature tape underneath
QExperimental heat sealing machine at room temperature~ 300 ° C requires time and pressure control
A This one is suitable.
QI want to buy a heat sealing instrument, but there is no gas. Is there any better recommendation? It is recommended to adjust the sealing pressure when recommended.
A Just add an air pump, which can adjust the pressure, pressure, temperature, and time.
QAre your cylinders upper and lower?
A One on the left and one on the right.
QWhich heat sealing instrument is suitable? Do you have two upper and lower cylinders?
A One on the left and one on the right.
