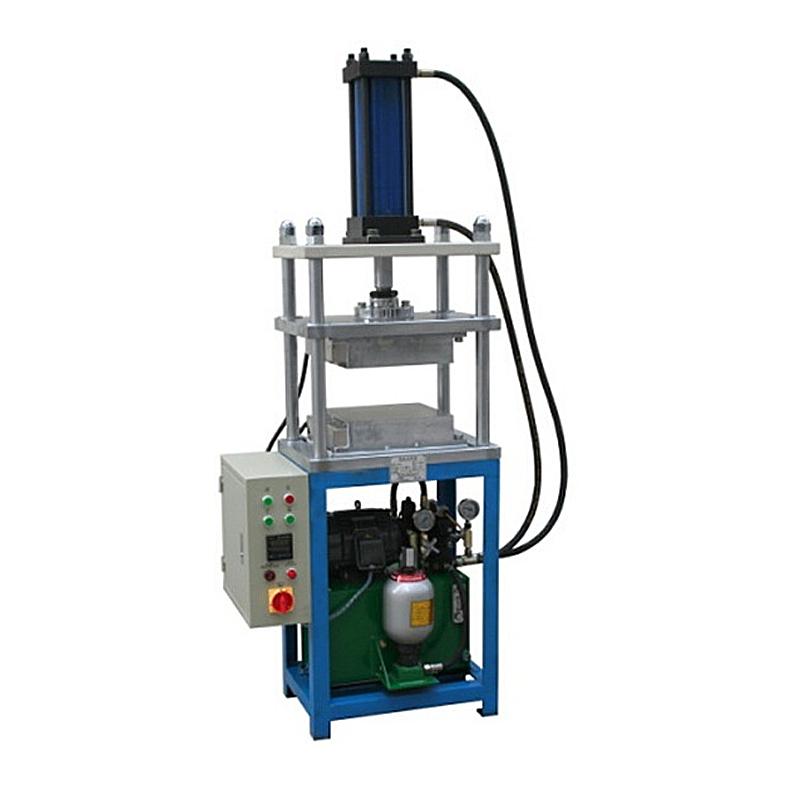

Experimental equipment for hot pressing of paper pattern ZY-YZ-2 electrothermal paper pattern press, special for papermaking laboratory
SE
ZY-YZ-2
zy ZY-YZ-2 Electric pattern pressSPEC
zy ZY-YZ-2 Electric pattern pressDetails
zy ZY-YZ-2 Electric pattern pressPacking list
- SKU
- NB022875
- Heating power
- 3000W
- temperature control
- PID intelligent control, control Accuracy of +/- 3 ℃
- Working pressure
- 0-5MPa adjustable
- Pressure area
- 320Mm × 300mm (pattern size)
- Press plate travel
- 200mm
- piston diameter
- Φ100
- Working pressure of gear pump
- 6.3MPa
- Fuel tank Volume
- 20L
- Motor Power
- 1.5KW/380V
- Volume
- 780mm×500mm×1920mm
- Weight
- 450Kg
a brief introdction

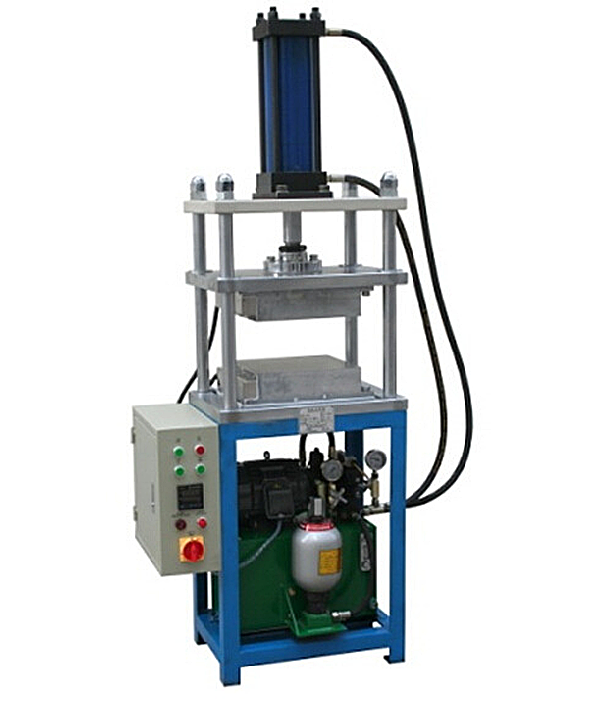

Electric paper sample press (oil press) is a special supporting equipment for various paper sample pickers in papermaking laboratories. It is an experimental equipment for hot pressing paper samples with a size not larger than 320mm×260mm. It can complete paper-plastic molding and wood-based panel hot pressing. Forming and other tests, taking into account the particularity of the analysis and experiment requirements, to ensure the accuracy and reliability of the experimental data, the entire hydraulic system adopts special oil cylinders and special high-pressure components, and the pressure can be kept constant for a long time after the oil pump stops working, so the start-up time Short, long working time, ultra-quiet.
In addition to meeting the requirements of QB/T3703-1999 (paper sheet preparation in pulping laboratory + conventional sheet former method), the press of this machine can also carry out heat calendering experiments on paper samples.
