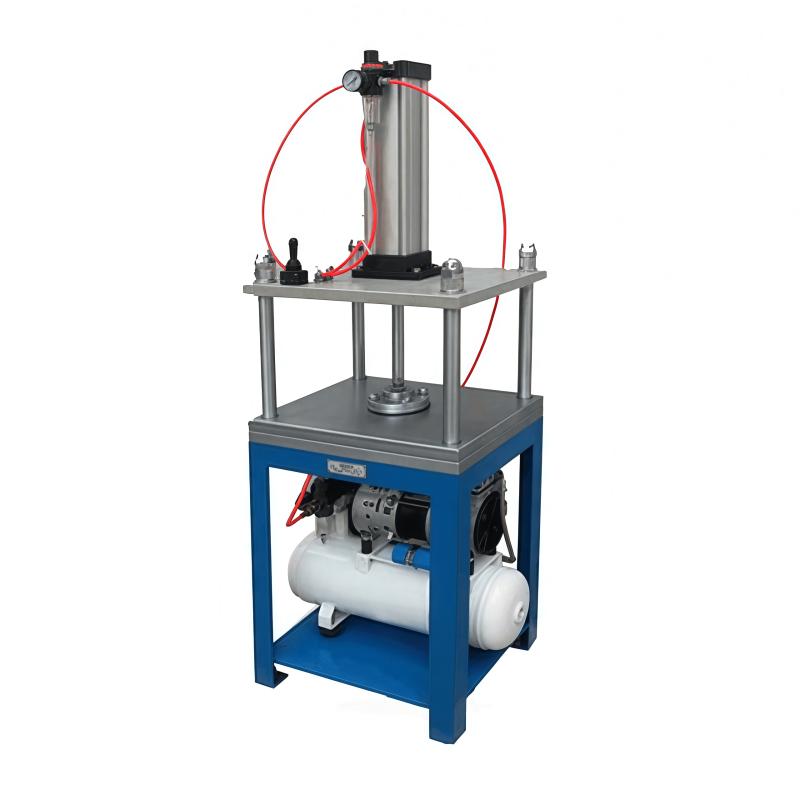

Pneumatic pattern press ZY-YZ-1 laboratory special
SEPneumatic pressure is low noise, easy to adjust, adjustable working pressure 0~ 0.9MPa, limit pressure 0.5~ 0.9MPa, suitable for sample size 310mm × 310mm × 200mm.
$1548.00/set
PromotionLoading...
Coupon
Model：
ZY-YZ-1
zy
Manufacturer authorization
zy ZY-YZ-1 Pneumatic pattern pressSPEC
zy ZY-YZ-1 Pneumatic pattern pressDetails
zy ZY-YZ-1 Pneumatic pattern pressPacking list
- SKU
- NB022878
- Specimen size
- 310mm×310mm×200mm
- Specimen size
- 310mm×310mm×200mm
- Specimen size
- 310mm×310mm×200mm
- working pressure
- 0~ 0.9MPa adjustable
- working pressure
- 0~ 0.9MPa adjustable
- working pressure
- 0~ 0.9MPa adjustable
- ultimate working pressure
- Generally 0.5Mpa~ 0.9MPa (determined by the working pressure of the compressor)
- ultimate working pressure
- Generally 0.5Mpa~ 0.9MPa (determined by the working pressure of the compressor)
- ultimate working pressure
- Generally 0.5Mpa~ 0.9MPa (determined by the working pressure of the compressor)
- Cylinder diameter
- 63mm
- Cylinder diameter
- 63mm
- Cylinder diameter
- 63mm
- nominal force
- 45Kg~80Kg
- nominal force
- 45Kg~80Kg
- nominal force
- 45Kg~80Kg
- Dimensions
- 570*400*900mm
- Dimensions
- 570*400*900mm
- Dimensions
- 570*400*900mm
ZY-YZ-1
Pneumatic pattern press
Pneumatic pressure is low noise, easy to adjust, adjustable working pressure 0~ 0.9MPa, limit pressure 0.5~ 0.9MPa, suitable for sample size 310mm × 310mm × 200mm.
a brief introdction
Pneumatic paper sample press machine is used for papermaking laboratories to increase the density and smoothness of the pressed sample, reduce the moisture content of the sample, and increase the strength of the object. The pressing of this machine fully meets the standard required by QB/T3703-1999 (preparation of paper sheets in pulp laboratory + conventional sheet former method).
This machine has the characteristics of light structure, pneumatic pressure, no noise, clean and comfortable adjustment and so on.
