EASTONG ETA-083NF Silver Coating Thickness Gauge Nonconductive Coating Thickness Gauge

ETA-083NF silver coating Thickness Gauge is a testing instrument required to control and ensure product mass. Silver plating Thickness Gauge is widely used in manufacturing, metal processing, chemical industry, commodity inspection and other testing fields.
Model：
Certificate
Contact
Details SPEC

Eastong ETA-083NF Coating Thickness GaugeSPEC

Eastong ETA-083NF Coating Thickness GaugeDetails

Eastong ETA-083NF Coating Thickness GaugePacking list

SKU
NB000230
Measurement principle
Eddy Current
Measurement range
0~1000μm
margin of error
±3%
Resolution
0.1μm|1μm
Minimum measurement surface
10*10mm
Minimum radius of curvature
Convex 5mm; Concave 25mm
thinnest substrate
0.5mm
probe
NF integrated probe
icon function
without
Power Supply
2 * AA battery
Calibrated Certificate
without
system language
Chinese
Display screen
LCD screen
supporting software
without
Machine size
102*66*24mm
Operating temperature
0~40℃
Relative Humidity
≤85%RH
ETA-083NF
Coating Thickness Gauge
EASTONG ETA-083NF Silver Coating Thickness Gauge Nonconductive Coating Thickness Gauge Picture

Coating Thickness Gauge selector

Introduction

ETA-083NF eddy current Thickness Gauge adopts the eddy current thickness measurement method, which can non-destructively measure the thickness of non-conductive overlays on non-magnetic metal substrates such as copper, aluminum, zinc, tin, etc., such as enamel, rubber, paint, plastic, etc. ETA-083NF surface coating Thickness Gauge has the characteristics of small measurement error, high reliability, good stability, easy operation, etc., is a testing instrument required to control and ensure product quality, and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.

Parameters

ModelETA-083NF
Operating PrincipleEddy current
Measuring range0~1000um
Measurement accuracy±（3%H±1.5）
Display accuracy0~99.9um: 0.1um/100um or more: 1um
Minimal matrix10*10 mm
Minimum curvatureConvex 5mm, concave 25mm
Thinnest matrix0.5mm
Ambient temperature0℃~40℃
Relative HumidityNot more than 85%
power supply2 No. 5 batteries
Fuselage size102×66×24mm

Product illustration

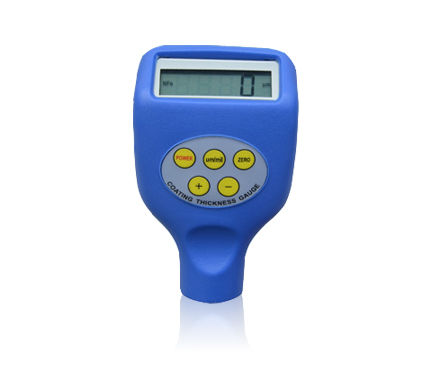

ETA-083NF Silver Plating Thickness Gauge Actual Shot

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
