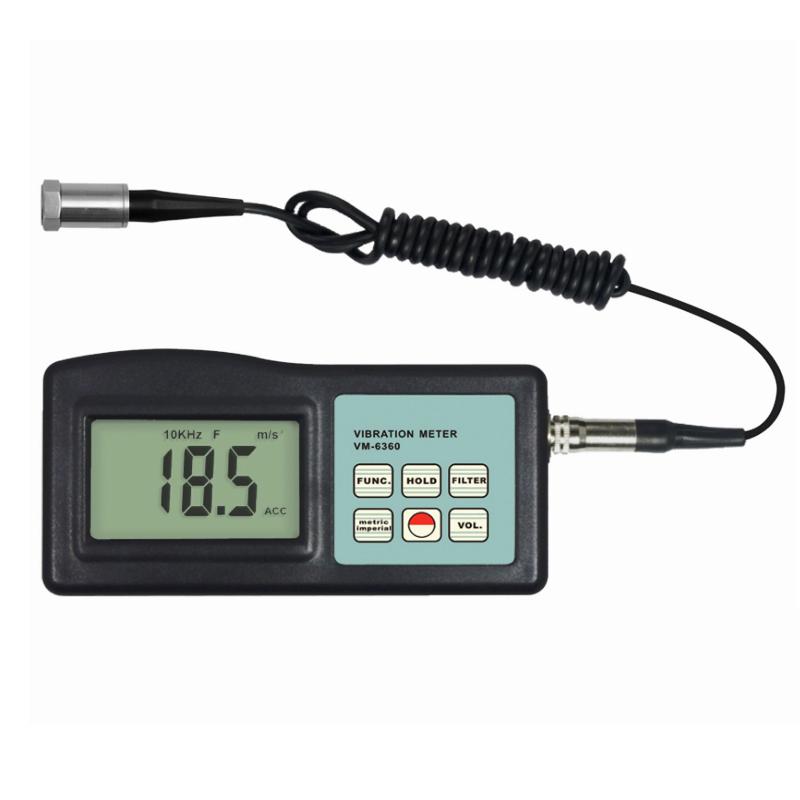

LANDTEK VM6360 Vibration Meter, Probe Line 6 Meters Long Frequency up to 10KHz
SE
VM6360
LANDTEK VM6360 VibratIon MeterSPEC

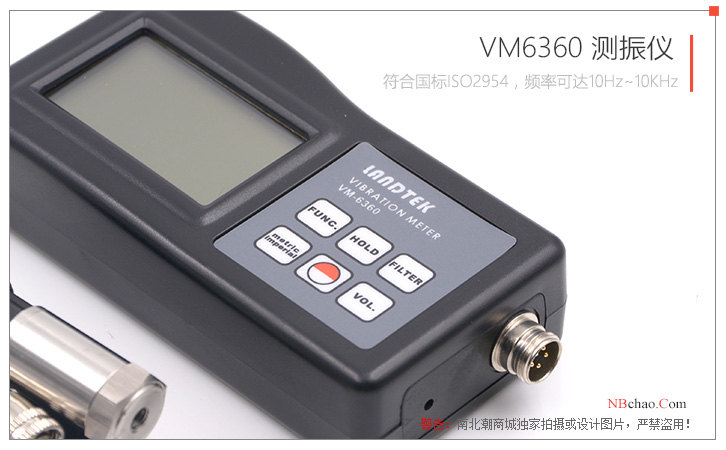

LANDTEK VM6360 VibratIon MeterDetails

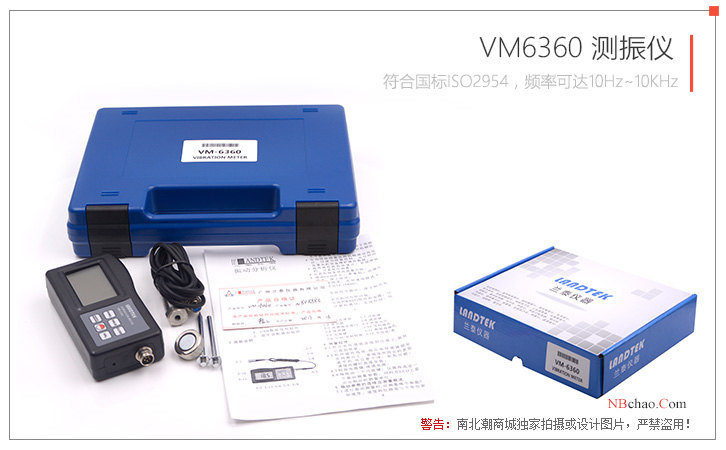

LANDTEK VM6360 VibratIon MeterPacking list
- SKU
- NB023021
- Sensors Type

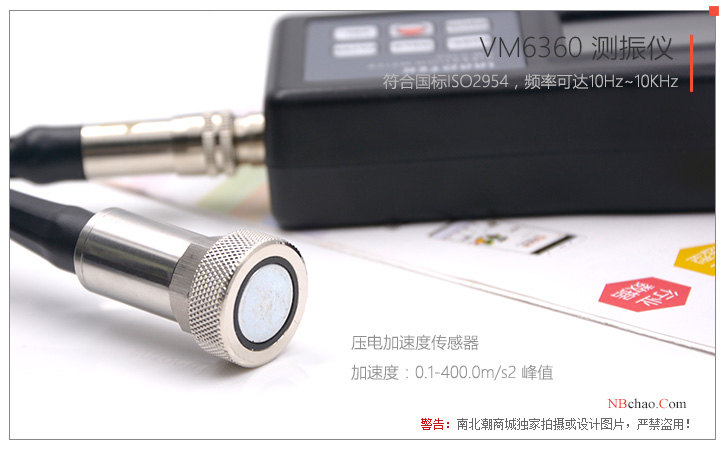

- Piezoelectric Acceleration Sensors
- Accuracy
- ± (5% n + 2) words
- Displacement Measurement range
- 0.001~4.000mm
- Speed Measurement range
- 0.01~400mm/s
- Acceleration Measurement range
- 0.1~400.0m/s²
- Displacement frequency range
- 10Hz~1KHz
- Speed frequency range
- 10Hz~1KHz
- Acceleration frequency range
- 10 Hz~ 1k Hz 10 Hz~ 10k Hz (x10 mode for bearing inspection)
- Operating Temperature
- 0~50℃
- Relative Humidity
- <90% RH
- output
- 2.0 v AC load resistance 10 k
- Dimensions
- 124*62*30 mm
- Power
- 4 AA batteries
- Weight
- 120 g (without battery)
- Metric imperial conversion
- Convertible
- Battery Voltage indication
- Low Voltage prompt
- Data output
- USB, RS-232, Bluetooth
- Probe line length
- 6 meters
Introduction
1. The frequency range is wide. In the acceleration mode, the frequency can reach 10Hz~10KHz.
2. VM6360 conforms to the international standard ISO2954, which is used for periodic motion measurement to detect the imbalance and deviation of moving machinery.

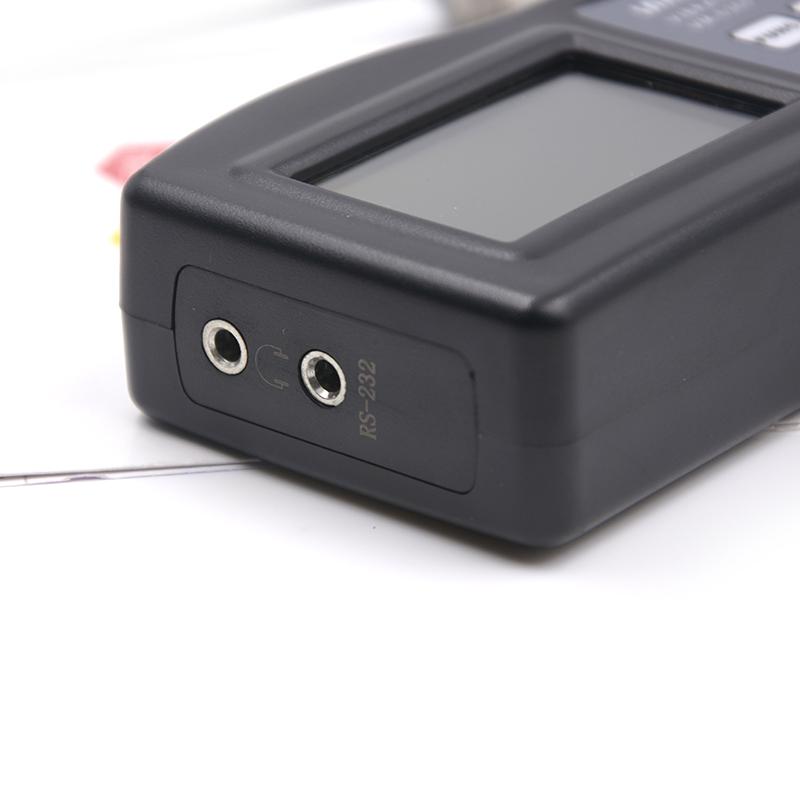

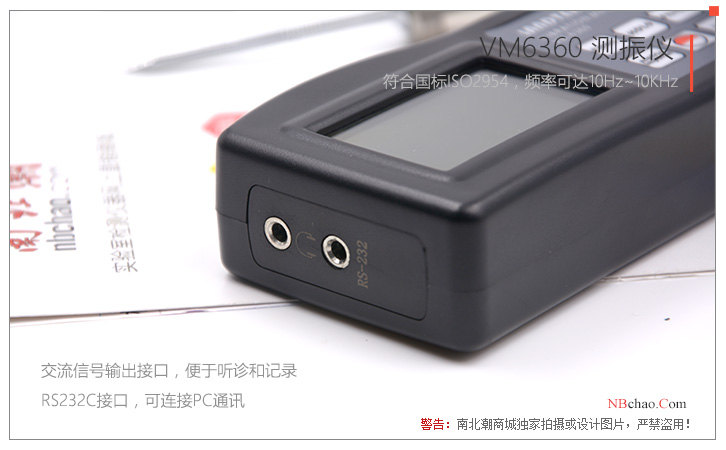

3. This type of vibratIon Meter uses "USB data line output" and "RS-232 data line output" to communicate with PC.
4. VM6360 uses a high-performance accelerometer to achieve accurate and reproducible measurements.
5. With AC signal output, it is convenient for auscultation and recording.
6. An optional earphone can be used as a stethoscope.
7. Provide Bluetooth data output option.
8. VM6360 Vibration Meter is specially designed for on-site measurement of various mechanical vibrations, so as to provide data for quality control, running time and prior equipment maintenance.

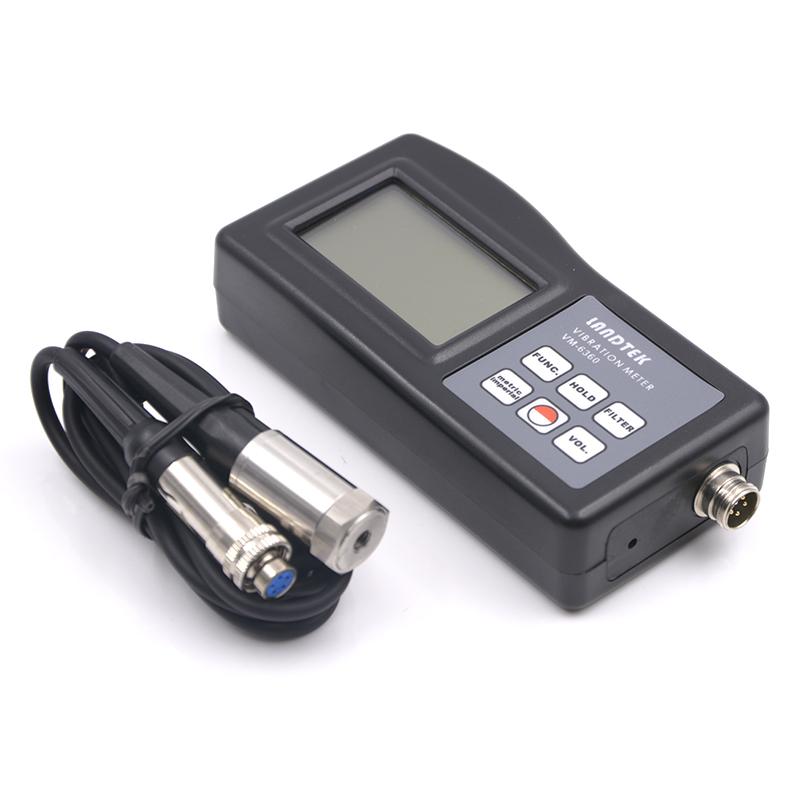

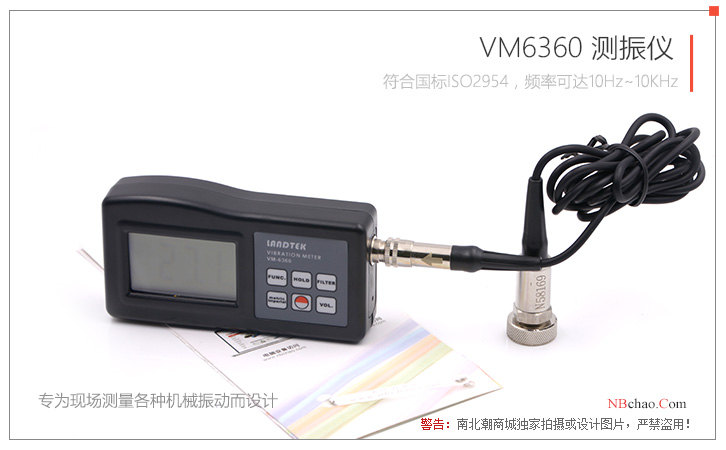

real shot
