JINGQI DHS-16 Moisture Analyzer 50g/5mg

SE
Weighing readability 5mg, weighing value 50g, moisture readability 0.02%~ 0.1%, heating temperature 50~180 ℃.
$459.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

JingQi DHS-16 Moisture AnalyzerSPEC

JingQi DHS-16 Moisture AnalyzerDetails

JingQi DHS-16 Moisture AnalyzerPacking list

SKU
NB023072
Weighing readability
5mg
Maximum weighing value
50g
Moisture temperature Accuracy
+/- 0.5% (sample ≥ 3g)
Water readability
0.02%~ 0.1% (sample ≥ 3g)
Temperature adjustment Accuracy
±0.1℃
Heating temperature range
50~180℃
Timer
0~99min
How to end the measurement
Timing automatic
Sample drying parameters
9 kinds (see print after details)
Moisture range
0~100%
Communication interface
Serial port RS232
Pan size
F100mm
Dimensions
330*180*140mm
Net Weight
2.9kg
Total Weight
4.2kg
heating source
Halogen lamp
DHS-16
Moisture Analyzer
Weighing readability 5mg, weighing value 50g, moisture readability 0.02%~ 0.1%, heating temperature 50~180 ℃.

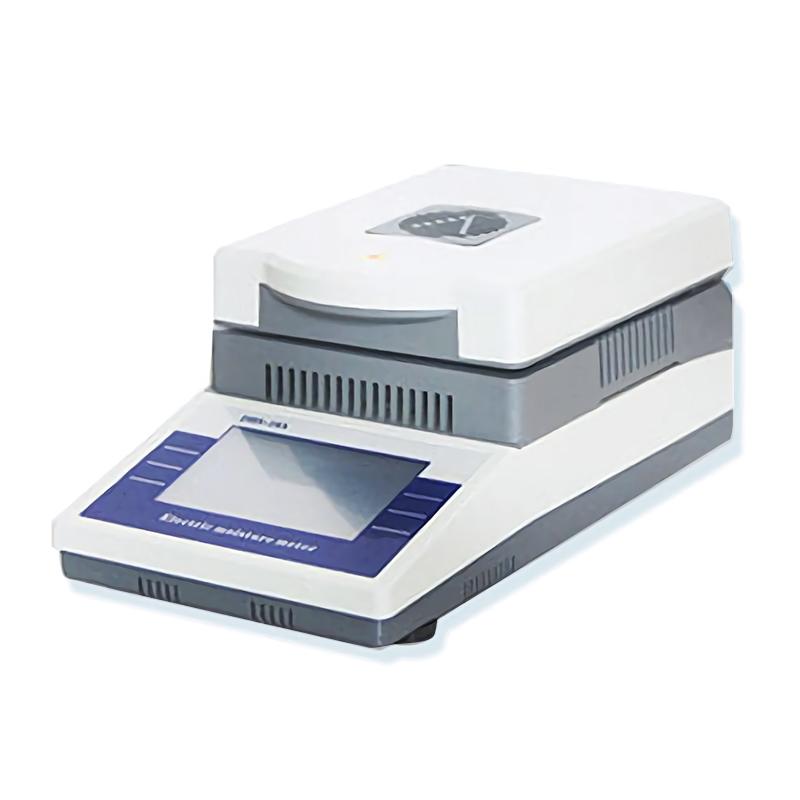

JINGQI DHS-16 Moisture Analyzer 50g/5mg Picture

The Specifications are valid in the following environments;

Ambient temperature: 15°C-30°C, it is guaranteed to be operable in the environment of 5°C to 40°C, and the measurement accuracy of the rapid moisture analyzer is guaranteed under extreme temperatures.

Relative Humidity: 50%-75%, no condensation at 30°C.

Warm-up time: Wait for at least 30 minutes after the moisture analyzer is connected to the power supply. When it comes back from standby, the moisture analyzer can be used immediately.

power supply:

Input AC Voltage 220V, 3A, 50Hz±1Hz

Voltage fluctuation: 220±10%

Power load: the maximum power is 350W during heating

Protection: Protected from dust and moisture, Pollution Degree: 2nd Degree

DHS Moisture Analyzer Series Parameters

modelDHS-20ADHS-16ADHS-16
readability1mg5mg10mg
Maximum weighing value110g50g
Moisture Greenhouse Accuracy±0.5% (sample ≥ 3g)
Moisture content determination readability0.02%~0.1% (sample ≥ 3g)
Temperature control adjustment tolerance±0.1℃
Heating temperature range setting50°C to 180°C
Heating time range setting0min-99min (adjust by 1min)
End point controlTiming automatic
Sample Drying Parameters9 types (see the post print for details)
Moisture content measurement range0%-100%
communicationSerial RS232
Pan size100mm
Dimensions (L*W*H)330*180*140mm
net weight2.9kg
gross weight4.2kg
heating sourceHalogen lamp


FAQ
QDoes the Moisture Analyzer DHS-16 test process display temperature and time?
A Hello, it shows drying time and moisture temperature.
QHelp me find a Moisture Analyzer that meets the ASTMD4017-02 standard
A This DHS-16 Moisture Analyzer will do!
