JINGQI DHS-16A Moisture Analyzer 50g/1mg

SE
Weighing readability 1mg, weighing value 50g, moisture readability 0.02%~ 0.1%, heating temperature 50~180 ℃, timing function can be set.
$490.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

JingQi DHS-16A Moisture AnalyzerSPEC

JingQi DHS-16A Moisture AnalyzerDetails

JingQi DHS-16A Moisture AnalyzerPacking list

SKU
NB023074
Weighing readability
1mg
Maximum weighing value
50g
Water readability
0.02%~ 0.1% (sample ≥ 3g)
Temperature control adjustment tolerance
±0.1℃
Heating temperature range
50~180℃
Timer
0~99min
endpoint control
Timing automatic
Sample drying parameters
9 kinds (see print after details)
Moisture range
0~100%
Communication interface
Serial port RS232
Pan size
F100mm
Dimensions
330*180*140mm
Net Weight
2.9kg
Gross Weight
4.2kg

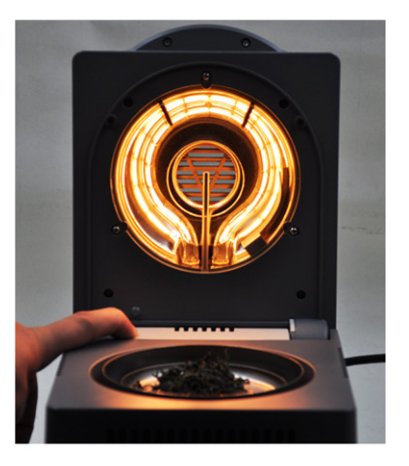

heating source
Halogen lamp
DHS-16A
Moisture Analyzer
Weighing readability 1mg, weighing value 50g, moisture readability 0.02%~ 0.1%, heating temperature 50~180 ℃, timing function can be set.

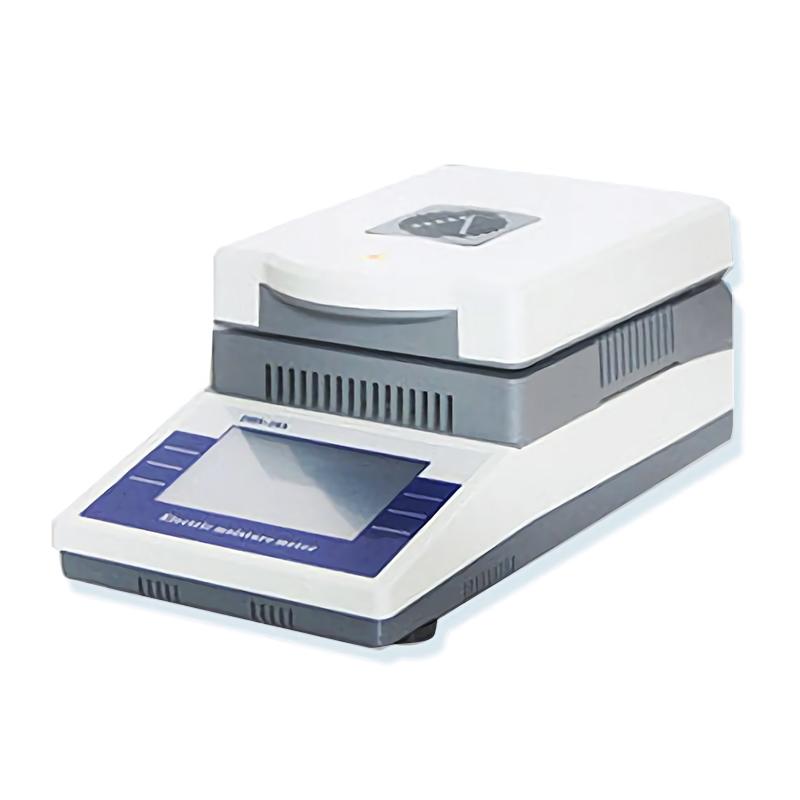

JINGQI DHS-16A Moisture Analyzer 50g/1mg Picture

The Specifications are valid in the following environments:

Ambient temperature: 15°C-30°C, it is guaranteed to be operable in the environment of 5°C to 40°C, and the measurement accuracy of the rapid moisture analyzer is guaranteed under extreme temperatures.

Relative Humidity: 50%-75%, no condensation at 30°C.

Warm-up time: Wait for at least 30 minutes after the moisture analyzer is connected to the power supply. When it comes back from standby, the moisture analyzer can be used immediately.

power supply:

Input AC Voltage 220V, 3A, 50Hz±1Hz

Voltage fluctuation: 220±10%

Power load: the maximum power is 350W during heating

Protection: Protected from dust and moisture, Pollution Degree: 2nd Degree

DHS Moisture Analyzer Series Parameters

modelDHS-20ADHS-16ADHS-16
readability1mg5mg10mg
Maximum weighing value110g50g
Moisture Greenhouse Accuracy±0.5% (sample ≥ 3g)
Moisture content determination readability0.02%~0.1% (sample ≥ 3g)
Temperature control adjustment tolerance±0.1℃
Heating temperature range setting50°C to 180°C
Heating time range setting0min-99min (adjust by 1min)
End point controlTiming automatic
Sample Drying Parameters9 types (see the post print for details)
Moisture content measurement range0%-100%
communicationSerial RS232
Pan size100mm
Dimensions (L*W*H)330*180*140mm
net weight2.9kg
gross weight4.2kg
heating sourceHalogen lamp


FAQ
QDHS-16A, this equipment, can the moisture be adjusted?
A Time, temperature and weight can be set according to the experimental needs.
QCan this DHS Moisture Analyzer test for oily substances?
A Hello, this halogen Moisture Analyzer cannot test flammable and explosive liquids, and oily substances will burn when heated.
QIs this Moisture Analyzer compliant with GB/T13025.3?
A The Moisture Analyzer is suitable for GB/T13025.3. Please consult customer service for detailed application definition.
